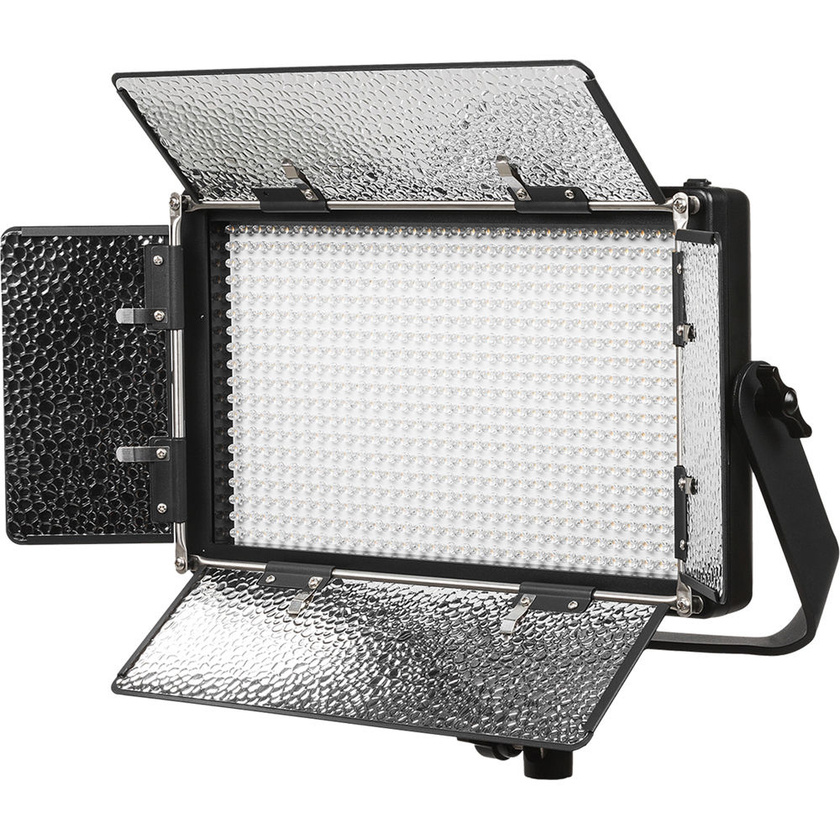

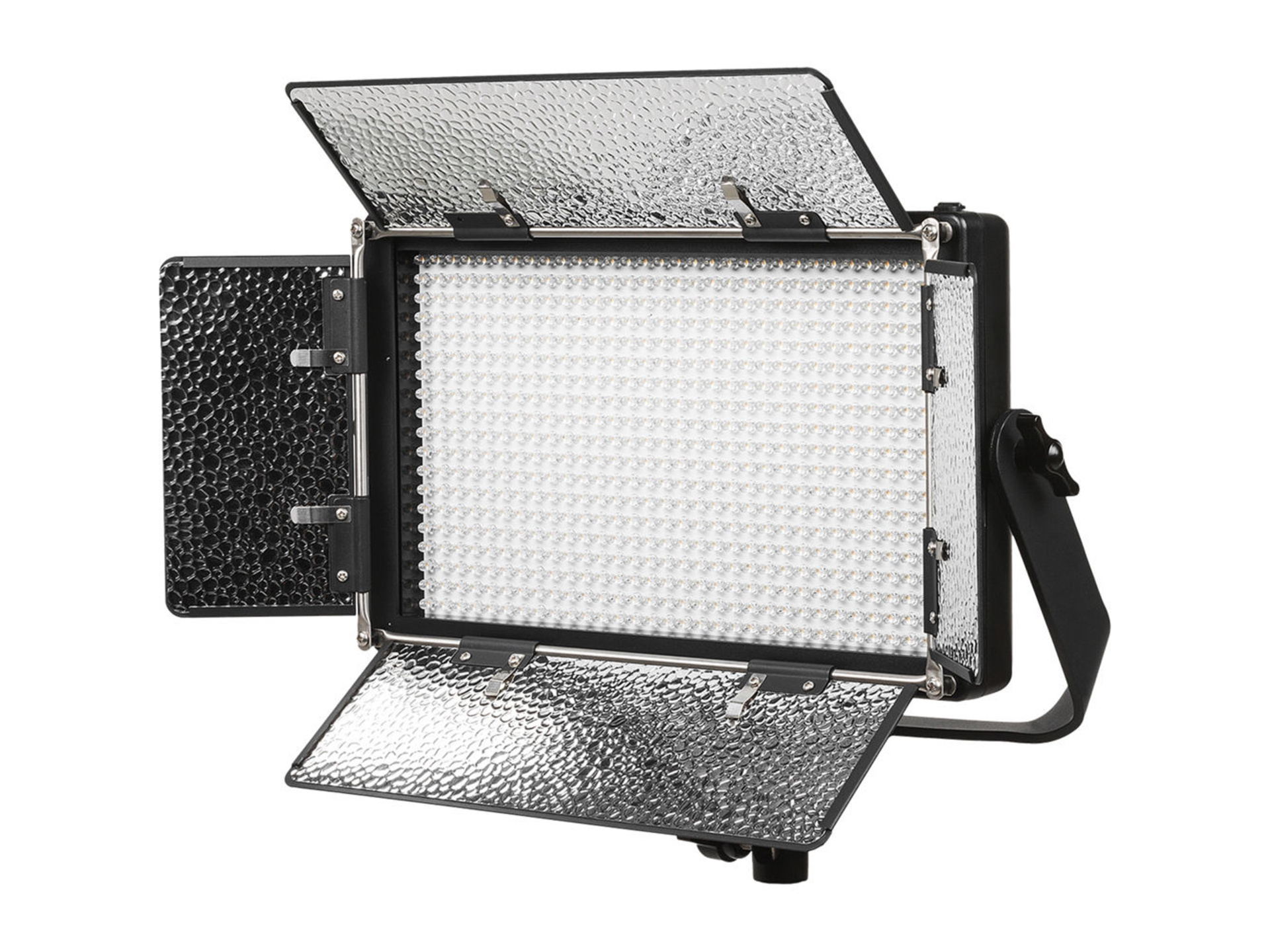

Ikan Rayden RB5 Bi-Color Half x 1 Studio & Field LED Light

Product #120184 | SKU RB5 | Ikan
Usually ships in 1 - 2 weeks what does this mean?
Our Price $1,199 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $48.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • Adjustable from 5600K-3200K
  • 50° Beam Angle
  • Removable Gold & V-Mount Plates Included
  • Barndoors with Removable Intensifiers
  • 30° Angled Yoke
  • Baby/Junior Combo Pin Stand Adapter

Description

The Ikan Rayden RB5 Bi-Color Half x 1 Studio & Field LED Light is a versatile lighting solution designed for durability and functionality. Featuring a robust moulded plastic chassis, this fixture offers flicker-free dimming from 100% to 10%, an LCD display, and a convenient wireless remote. With a 50° beam spread and integrated gel clips on its barndoors, this light provides precise control over its output.

DC powered with a 4-pin XLR connector, the fixture comes with an AC/DC power supply for mains power. It includes interchangeable Gold Mount/V-Mount plates for added convenience. The four-leaf barndoors feature removable light intensifiers and can be opened fully without obstructing the yoke when the light is directed forward. Additionally, the fixture is equipped with a combo baby pin/junior stud mount for versatile mounting options on stands or grids using optional clamps.

Specifications

Key Specs
Item Type 1x LED Light Panel
Included Light Modifier 1x Barndoors with Removable Intensifier
Included Storage Case No
Photometrics 3200K:
436 fc / 4698 Lux at 3.3' / 1 m*
194 fc / 2088 Lux at 4.9' / 1.5 m
40 fc / 431 Lux at 9.8' / 3 m
18 fc / 194 Lux at 14.8' / 4.5 m
4400K:
463 fc / 4988 Lux at 3.3' / 1 m*
206 fc / 2217 Lux at 4.9' / 1.5 m
45 fc / 484 Lux at 9.8' / 3 m
22 fc / 237 Lux at 14.8' / 4.5 m
5600K:
450 fc / 4844 Lux at 3.3' / 1 m*
200 fc / 2153 Lux at 4.9' / 1.5 m
42 fc / 451 Lux at 9.8' / 3 m
19 fc / 205 Lux at 14.8' / 4.5 m

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 3200 to 5600K
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 96 at 3200K
CRI 96 at 5600K
TLCI 98 at 3200K
TLCI 98 at 5600K
Dimming Built-In Dimmer (Stepped)
 • 10 to 100%
Front Accessory Mount Proprietary
Wireless Remote Control Type Radio/RF *Remote Included
Power Source AC to DC Adapter (Included)
Battery (Not Included)
Battery Plate Type 1x Gold Mount (Included)
1x V-Mount (Included)
Battery 1x Rechargeable (Not Included)
Input Power 15 VDC
110 to 220 VAC, 50 / 60 Hz
Power Consumption 51 W
Fixture Mounting 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
Light Fixture
Item Type 1x LED Light Panel
Included Light Modifier 1x Barndoors with Removable Intensifier
Included Storage Case No
Photometrics 3200K:
436 fc / 4698 Lux at 3.3' / 1 m*
194 fc / 2088 Lux at 4.9' / 1.5 m
40 fc / 431 Lux at 9.8' / 3 m
18 fc / 194 Lux at 14.8' / 4.5 m
4400K:
463 fc / 4988 Lux at 3.3' / 1 m*
206 fc / 2217 Lux at 4.9' / 1.5 m
45 fc / 484 Lux at 9.8' / 3 m
22 fc / 237 Lux at 14.8' / 4.5 m
5600K:
450 fc / 4844 Lux at 3.3' / 1 m*
200 fc / 2153 Lux at 4.9' / 1.5 m
42 fc / 451 Lux at 9.8' / 3 m
19 fc / 205 Lux at 14.8' / 4.5 m

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 3200 to 5600K
Colour Modes Daylight, Tungsten
Colour Accuracy Standard CRI 96 at 3200K
CRI 96 at 5600K
TLCI 98 at 3200K
TLCI 98 at 5600K
Dimming Built-In Dimmer (Stepped)
 • 10 to 100%
Cooling System Passive
Beam Angle 50°
Built-In Flash No
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Radio/RF *Remote Included
Mobile App Compatible No
Power & I/O
Power Source AC to DC Adapter (Included)
Battery (Not Included)
Inputs/Outputs 1x XLR 4-Pin Power Input
Battery Plate Type 1x Gold Mount (Included)
1x V-Mount (Included)
Battery 1x Rechargeable (Not Included)
Input Power 15 VDC
110 to 220 VAC, 50 / 60 Hz
Included Adapter / Cable 1x USA Type-A/B to XLR 4-Pin AC to DC Adapter
 • 15 VDC at 7 A
Inline Switch No
Power Pass-Thru No
Power Consumption 51 W
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display No
Environmental Resistance Dust-Resistant (IP20)
Materials Resin (Housing)
Dimensions 14 x 8 x 3" / 35.6 x 20.3 x 7.6 cm (Fixture)
Weight 4 lb / 1.8 kg

In The Box

  • ikan Rayden RB5 Bi-Colour Half x 1 Studio & Field LED Light
  • Gold Mount Battery Plate (Attached)
  • V-Mount Battery Plate
  • Power Supply with 4-Pin XLR Cable
  • Remote Control
  • Yoke with Stand Receiver/Pin

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Ikan Rayden RB5 Bi-Color Half x 1 Studio & Field LED Light
  • Manufacturer: Ikan
  • Model: RB5
  • SKU: RB5
  • RM Product #: 120184
  • Colour Temperature: 3200 - 5600K
