The upgraded Kessler Crane CSP1001 CineShooter+ Pan & Tilt Head equips you with the same full-featured motorised pan and tilt head as its predecessor, now with a new Helical Gearbox, quieter motors, and an OLED screen. This compact yet highly versatile head is made from durable, impact-resistant aluminium, weighs just 2.45 kg, and supports a camera rig weighing up to 6.8 kg. The base pan/tilt head provides an L-bracket to mount your camera rig using an Arca-type mount, or you can utilise 1/4"-20 and 3/8"-16 threads. The CineShooter+ can be powered via the included AC power adapter, an optional Kessler MagPack battery, or optional Gold mount/V-mount battery plates.

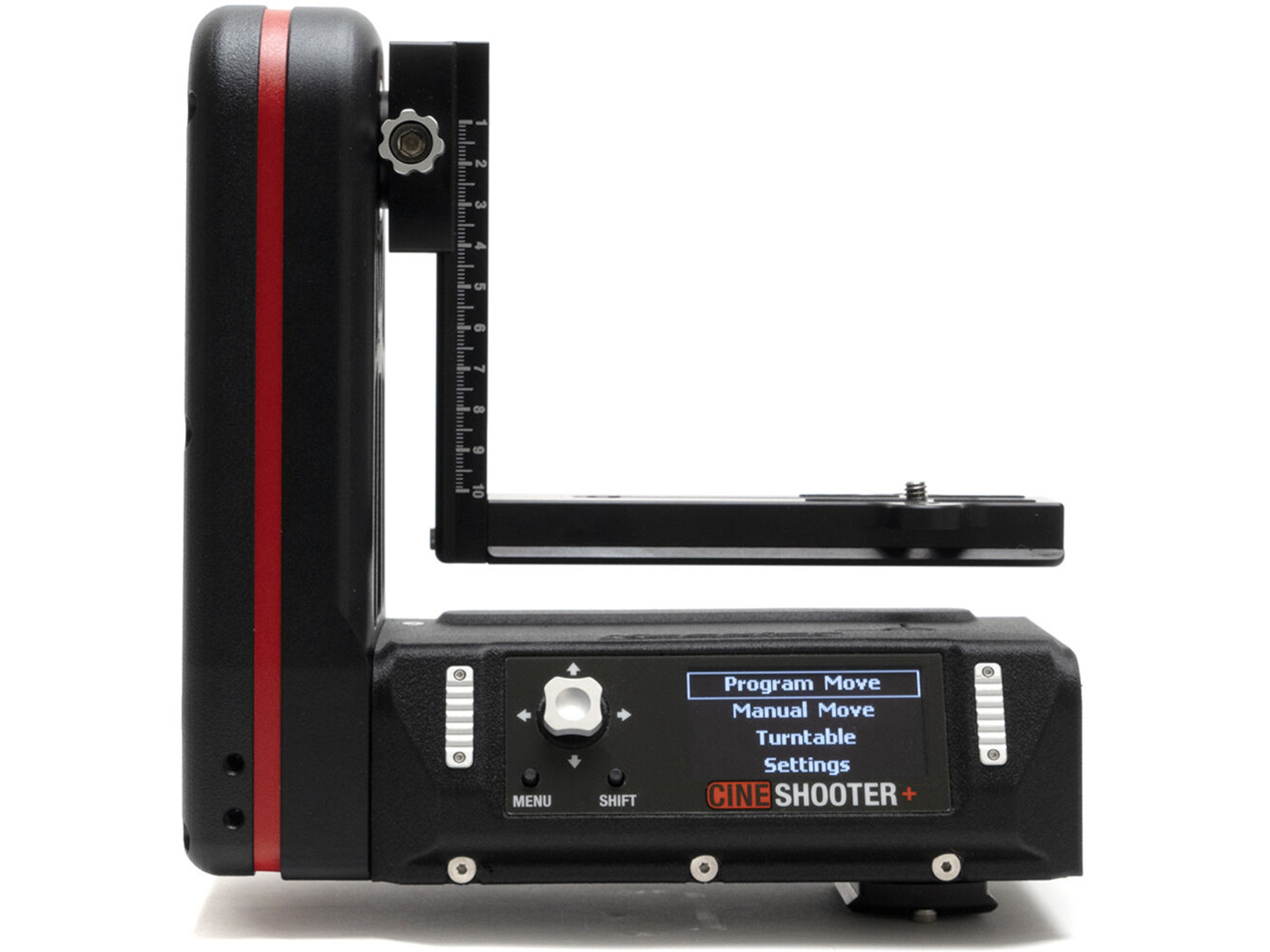

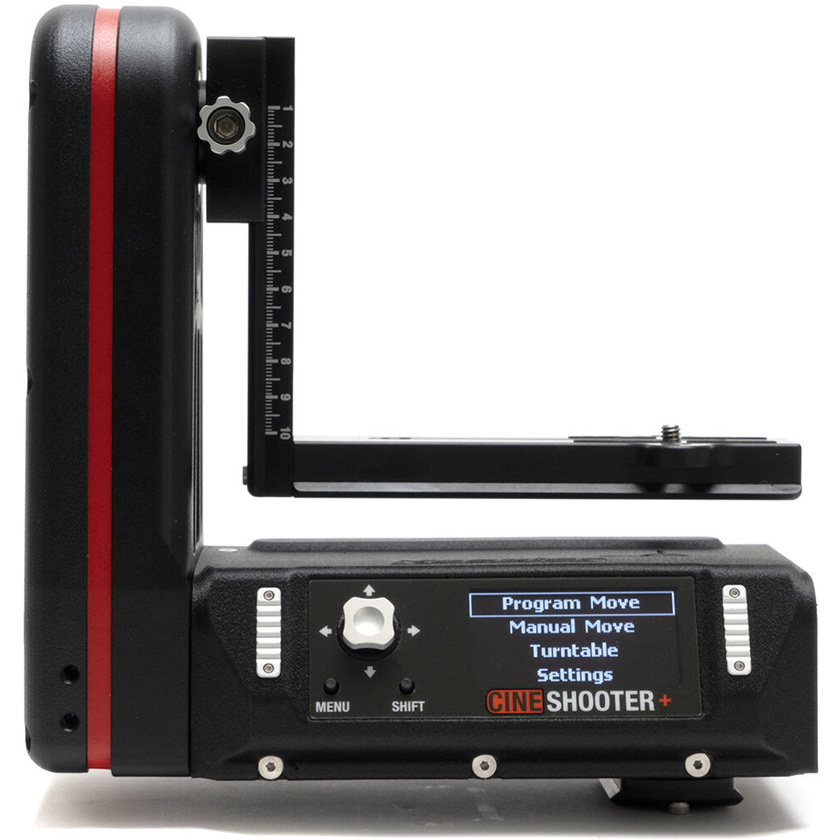

Kessler Crane CSP1001 CineShooter+ Pan & Tilt Head
In Stock with Supplier Usually ships in 1 - 2 weeks
$6,649
AUD
In Stock with Supplier Usually ships in 1 - 2 weeks
Delivery Options
Calculate ShippingFREE Pickup
View stock availability
Or RENT from
per .
Return any time after minimum rental agreement
Email me when stock arrives
Have a question about this product?
Send us a message
Features
- Motorised pan and tilt head
- 6.8 kg load capacity, Arca-type mount
- Onboard controls, joystick, status OLED
- New helical gearbox, quieter motors
- Wi-Fi and Bluetooth control
- DMC and CineShooter app control
Description
Specifications
| General | |
| Compatibility | Not Specified by Manufacturer |
| Speed | 387°/s (Pan) 175.2°/s (Tilt) |
| Load Capacity | 15 lb / 6.8 kg |
| Display | |
| Panel Type | OLED |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
| Inputs/Outputs | |
| USB I/O | 1 x USB-C Female Input |
| Video I/O | 3x RJ45 Input |
| Other I/O | 1 x Mini-Jack Input, Smart Handle 1 x 7-Pin Input, Controller Expansion Module |
| Wireless | |
| Wireless | Wi-Fi 4 (802.11n) / Bluetooth |
| Mobile App Compatible | Yes: Android & iOS App Name: CineShooter Remote Mobile |
| Power | |
| Power Source | Plug-In Power |
| DC Input Power | 11.9 to 15 VDC at 3 to 5 A |
| Power Input | 1 x 2-Pin LEMO-Type 1 x 2.1mm Barrel Connector |
| Physical | |
| Mounting | 1x 1/4"-20 Screw 1x 3/8"-16 Screw |
| Colour | Black |
| Operating Conditions | -4 to 122°F / -20 to 50°C |
| Cable Length | 3' / 0.9 m (USB-C) |
| Dimensions | 8.71 x 8.42 x 4.69" / 22.12 x 21.39 x 11.91 cm |
| Weight | 5.4 lb / 2.4 kg |
In The Box
- Kessler Crane CSP1001 CineShooter+ Pan & Tilt Head
- Arca-Type L-Bracket
- Power Port Cover
- 12 VDC Power Supply
- USB-C Cable (3')
- 1/4"-20 Screw
- 3/8"-16 Screw
- Allen Wrench
