The Kramer RC-206 6-Button I/O Control Keypad is a compact 6-button control keypad that is designed to fit US standard 1-gang wall junction boxes. It is easy to deploy and adds a decorative touch to any room design. This keypad is specifically designed to be used as a user interface within a Kramer Control system. With the help of K-Config, users can tap into the built-in I/O interfaces, making it possible to use this keypad as a flexible, standalone room controller. This makes it an excellent choice for controlling multimedia systems and other room facilities, such as screens, lighting, and shades in classrooms and meeting rooms. Additionally, multiple keypads can be linked together either side-by-side or at a distance using a single K-NETT™ cable that carries both power and communication. This not only allows for a uniform design but also provides a consistent user experience.
Kramer RC-206 6-Button I/O Control Keypad (White/Black) (US)
This product is no longer available
Features
- 6 RGB-colour, backlit buttons
- Modular frames compatibility
- Connectable to auxiliary KNET™ keypads
- Supported by all Kramer control platforms
Description
Specifications
| Inputs | 1 IR Sensor: For IR learning |
| Outputs | 2 IR: On 2-pin terminal block connectors |

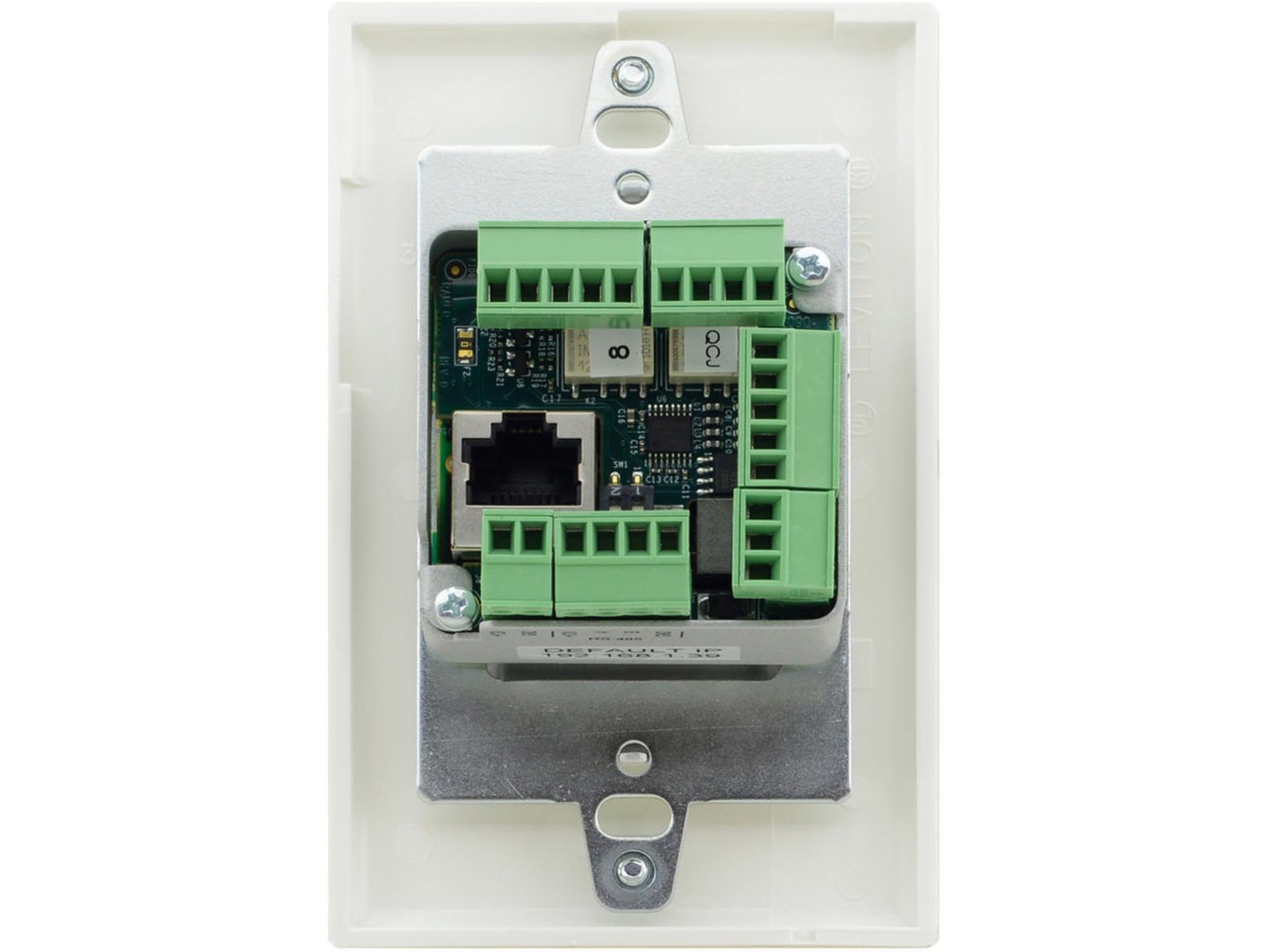

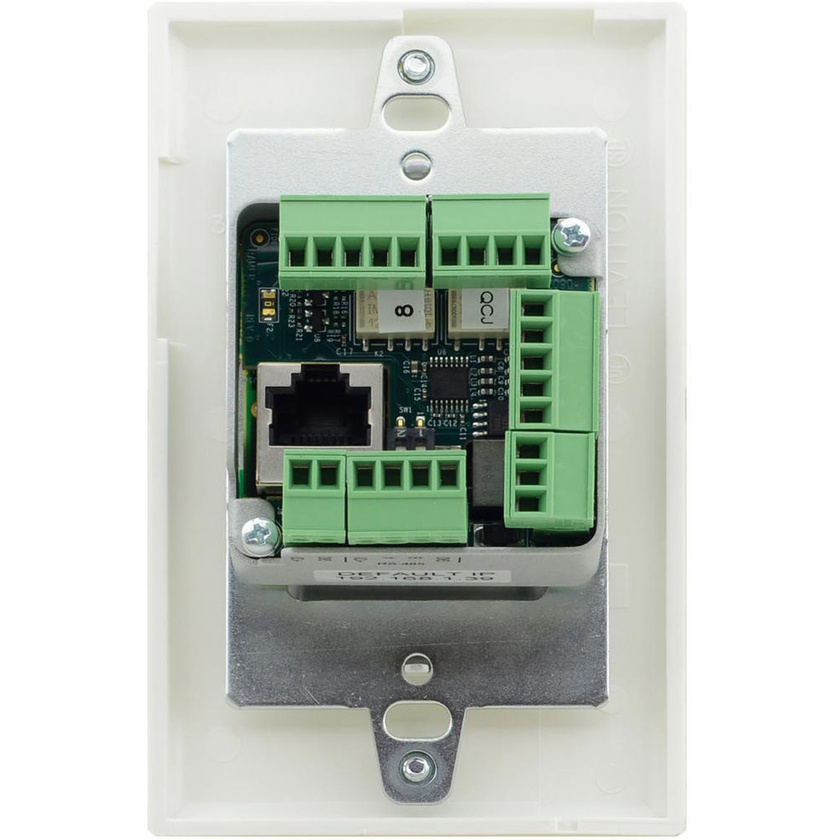

| Ports | 1 Ethernet: On an RJ-45 female connector for device configuration, control and firmware upgrade2 RS-232: On 3-pin terminal block connectors1 RS-485: On a 3-pin terminal block connector1 K-NETT: On a 4-pin terminal block connector2 Relays: On 2-pin terminal block connectors (30V DC, 1A max)1 GPI/O: On a 2-pin terminal block connector1 Mini USB: On a female mini USB-B connector for configuration and firmware upgrade |
| Default IP Settings | DHCP Enabled |
| Power | Source: 12V DC 2A power supplyConsumption: 12V DC, 780mA |
| Environmental Conditions | Operating Temperature: 0° to +40°C (32° to 104°F)Storage Temperature: -40° to +70°C (-40° to 158°F)Humidity: 10% to 90%, RHL non-condensing |
| Regulatory | Safety: COE, ULEnvironmental: RoHs, WEEE |
| Enclosure | Size: 1 Gang wall plateCooling: Convection ventilation |
| Weight | 0.1kg (0.2lbs) |
| Product Dimensions | 6.98cm x 4.70cm x 11.43cm (2.75" x 1.85" x 4.50" ) W, D, H |
In The Box
- Kramer RC-206 6-Button I/O Control Keypad (White/Black) (US)
