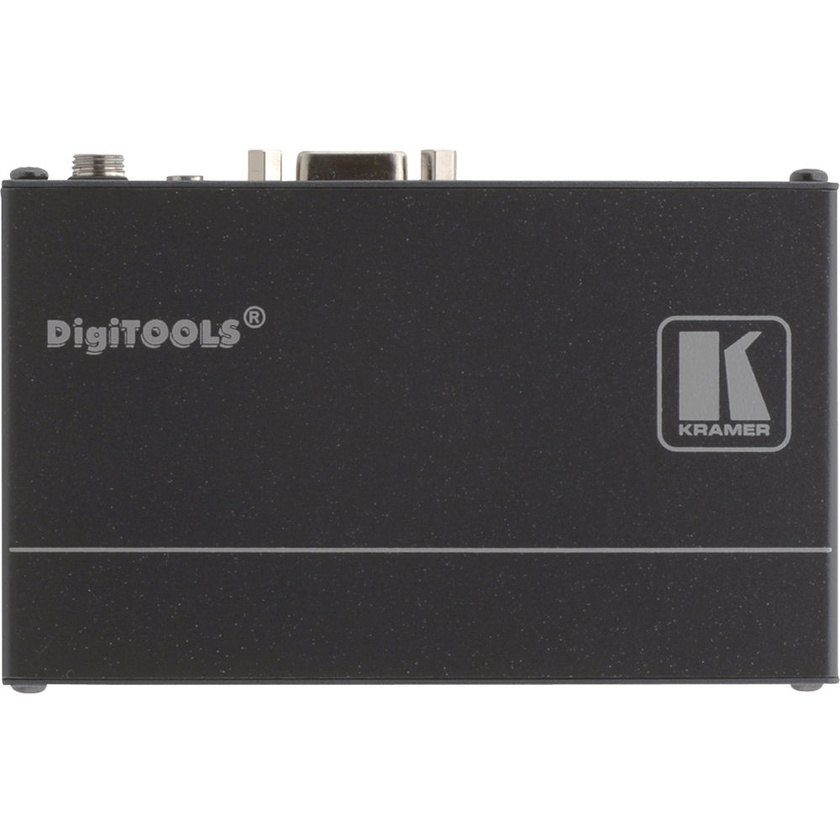

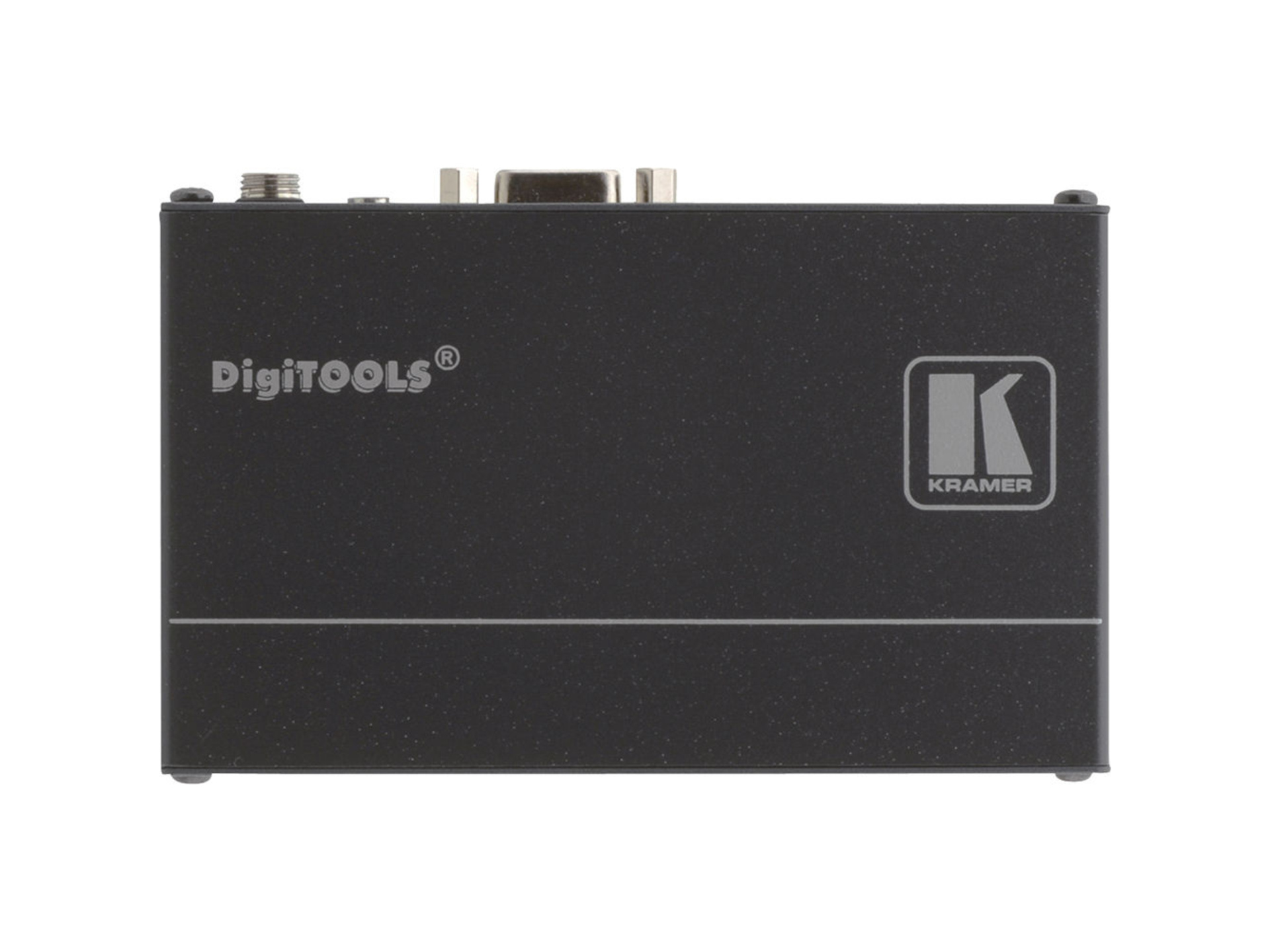

Kramer TP-580R Twisted Pair Receiver

Name: Kramer TP-580R Twisted Pair Receiver
Brand: Kramer
SKU: 127468
Price: 549.00 NZD
Availability: InStock

Product #127468 | SKU TP-580R | Kramer

| Write a review

In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?

Our Price $439 AUD

In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?

Email me when stock arrives

Request price match

Talk to our experts

Shipping & Availability

Usually ships in 2 - 3 working days. Deliver to New South Wales for $5^.90 Change location

Click & Collect

Check availability

Features

Receives HDBaseT twisted-pair signals
Outputs HDMI, RS-232, and IR
Works with TP-580T transmitter
Supports 1080p, 2K, and 4K
Extends signals up to 70 meters
Transmitter sold separately

Description Specifications In The Box

Description

The Kramer TP-580R Twisted Pair Receiver for HDMI, bidirectional RS−232, and IR signals receives an HDBaseT twisted pair signal from the TP−580T (sold separately) and converts it back into HDMI, RS−232, and IR connections. It supports the transmission of 1080p, 2K, and 4K video signals over a distance of up to 70 meters.

Specifications


Input	1 HDBaseT twisted pair RJ−45 connector
Output	1 HDMI connector
Ports	1 IR on a 3.5 mm mini jack, 1 RS−232 on a 9−pin D−sub connector
Bandwidth	10.2 Gb/s (3.4 Gb/s per graphic channel)
Transmission Range	1080p, 2K, and 4K video at up to 230' (70 m)
RS-232	Baud Rate: 115200
Compliance With HDMI Standard	Supports HDMI and HDCP
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	−40 to 158°F (−40 to 70°C)
Humidity	10 to 90%, RHL non−condensing
Power Consumption	12 VDC, 430 mA
Dimensions	7.4 x 4.5 x 1.0" (18.8 x 11.4 x 2.4 cm)
Weight	1.4 lb (0.6 kg)
