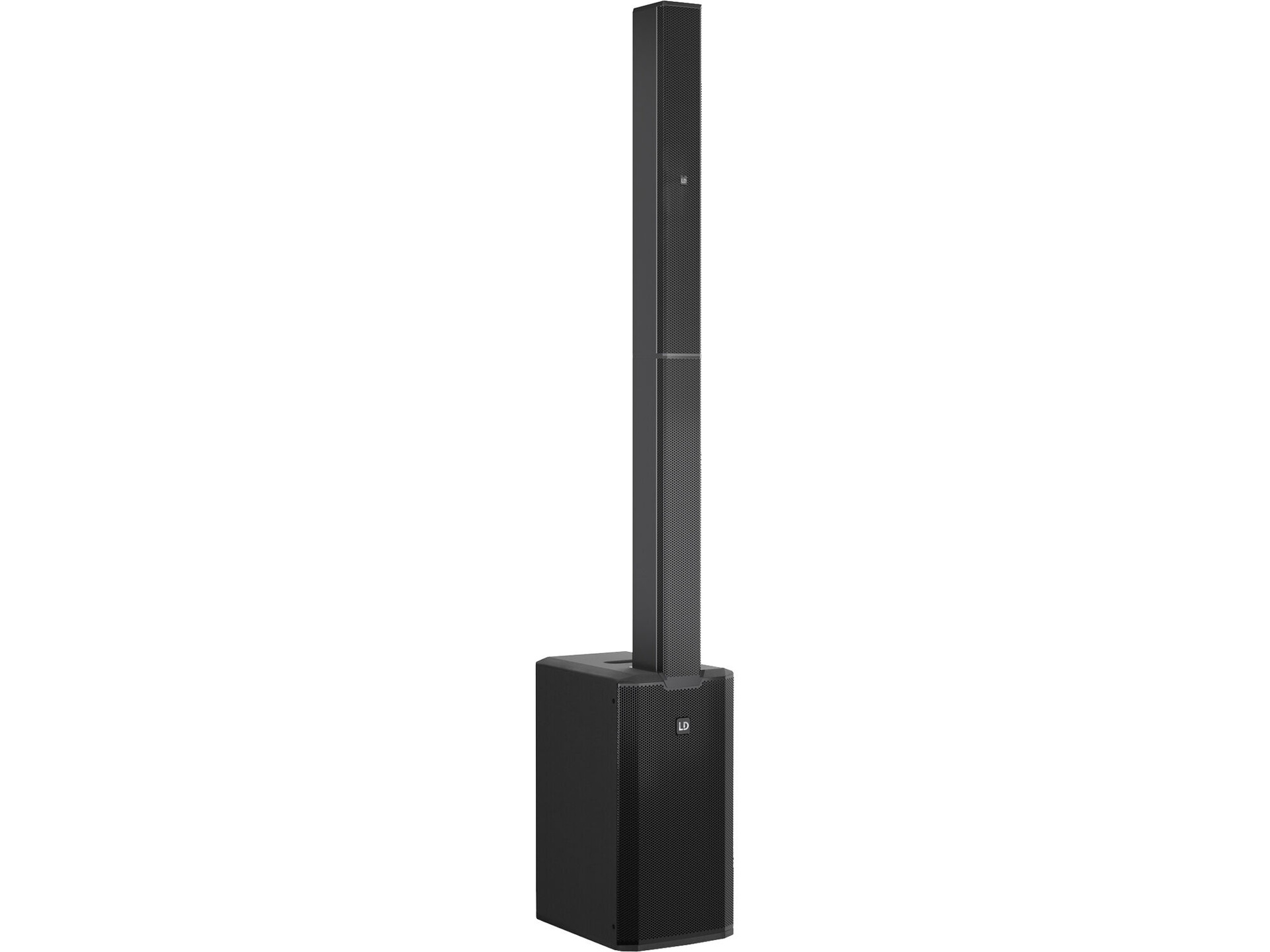

LD Systems MAUI 11 G3 Portable 700W Powered Column PA System (Black)

Product #115055 | SKU LDMAUI11G3INT | LD Systems
Usually ships in 12 - 13 weeks what does this mean?
Our Price $1,699 AUD
Usually ships in 12 - 13 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 12 - 13 weeks. Deliver to New South Wales for $144 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 12 - 13 weeks
Click & Collect

Features

  • For DJs, Singer-Songwriters, Small Bands
  • Bluetooth Audio with Stereo Streaming
  • Powered Subwoofer Module with Sat Out
  • Array with 6 x Midrange + 2 x Tweeters
  • 120 x 30° Coverage, 39 Hz to 20 kHz
  • 2 x Combo XLR-1/4" Inputs

Description

DJs, singer-songwriters, and smaller bands looking for a portable and high-quality PA system will find the LD Systems MAUI 11 G3 Portable 700W Powered Column PA System to be a great option. This compact column array is ideal for various events, including concerts, mobile DJ sets, weddings, and corporate functions. With its 700W RMS power (1400W peak) Class-D amplifier housed in a dual 8" subwoofer module, the MAUI 11 G3 delivers powerful and precise sound. It features 6 x 3.5" midrange drivers and 2 x 1" tweeters, ensuring an even sound distribution and constant horizontal dispersion. The innovative phase plug design and curved waveguide further enhance the spread of high frequencies to reach the audience at the rear.

To optimize the sound quality, LD Systems' engineers have meticulously fine-tuned the MAUI 11 G3 to reduce harmonic distortion and interference. This results in a transparent, vibrant, and powerful reproduction of vocals and instruments throughout the entire 120° x 30° dispersion field. Moreover, the system offers the option of cardioid subwoofer operation when used with an additional subwoofer (sold separately). By simply pressing the Cardioid button, the onboard DSP activates the cardioid mode, which effectively reduces the volume at the rear by up to 18 dB. Additionally, the subwoofer's ultra-durable polyurea coating ensures it can withstand the most demanding conditions during transportation.

Specifications

Key Specs
Speaker Configuration 1x 3-Way Speaker Column with Subwoofer
Number of Input Channels 2 (2 x Mono)
Amplifier Power Rating 700 W RMS
HF Driver 2x 0.5" / 12.7 mm Horn-Loaded Tweeter
MF Driver 6x 3.5" / 88.9 mm
Audio I/O 2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input
2x XLR 3-Pin Male Balanced Line Thru
1x XLR 3-Pin Male Balanced Subwoofer Output
USB I/O No
Bluetooth 5.0
Portable PA System
Speaker Configuration 1x 3-Way Speaker Column with Subwoofer
Number of Input Channels 2 (2 x Mono)
Amplifier Power Rating 700 W RMS
Amplifier Class Class-D
Speakers
Enclosure Type Bass-Reflex
HF Driver 2x 0.5" / 12.7 mm Horn-Loaded Tweeter
HF Voice Coil 1" / 25.4 mm
MF Driver 6x 3.5" / 88.9 mm
MF Voice Coil 0.75" / 19.05 mm
Subwoofer Driver 2x 8" / 203.2 mm Woofer
Subwoofer Voice Coil 2" / 50.8 mm
Magnet HF Driver:
Neodymium
MF Driver/Subwoofer:
Ferrite
Signal Processing
Input Pad No
AEQ No
Semi-Parametric AEQ No
Effects No
DSP 24-Bit DSP at 48 kHz
Performance
Frequency Response 39 Hz to 20 kHz
Maximum SPL 125 dB
Coverage Angle 120° H x 30° V
Protections DC Fault, Output Limiter, Short Circuit, Thermal
Connectivity
Audio I/O 2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input
2x XLR 3-Pin Male Balanced Line Thru
1x XLR 3-Pin Male Balanced Subwoofer Output
USB I/O No
Mobile App Compatible No
Network I/O No
Wireless Connectivity Bluetooth
Bluetooth 5.0
Bluetooth Profiles A2DP
Power
AC Input Power 100 to 120 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
220 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
Power Consumption 300 W
AC Power I/O 1x IEC Input
Physical
Transport Options Subwoofer:
1x Handle (Top)
Cooling Convection
Construction Material Aluminium, Plywood, Polyurethane
Environmental Protection No
Dimensions System:
80.8" / 2052 mm (Full Assembly)
Subwoofer:
23.9 x 15.9 x 12" / 607 x 403 x 305 mm
Top Speaker:
57.5 x 5.3 x 4.1" / 1460 x 135 x 103 mm
Weight System:
67.7 lb / 30.7 kg (Full Assembly)
Subwoofer:
45.2 lb / 20.5 kg
Top Speaker:
22.5 lb / 10.2 kg

In The Box

  • LD Systems MAUI 11 G3 Portable 700W Powered Column PA System (Black)
  • Column Speakers
  • Subwoofer
  • Power Cord
