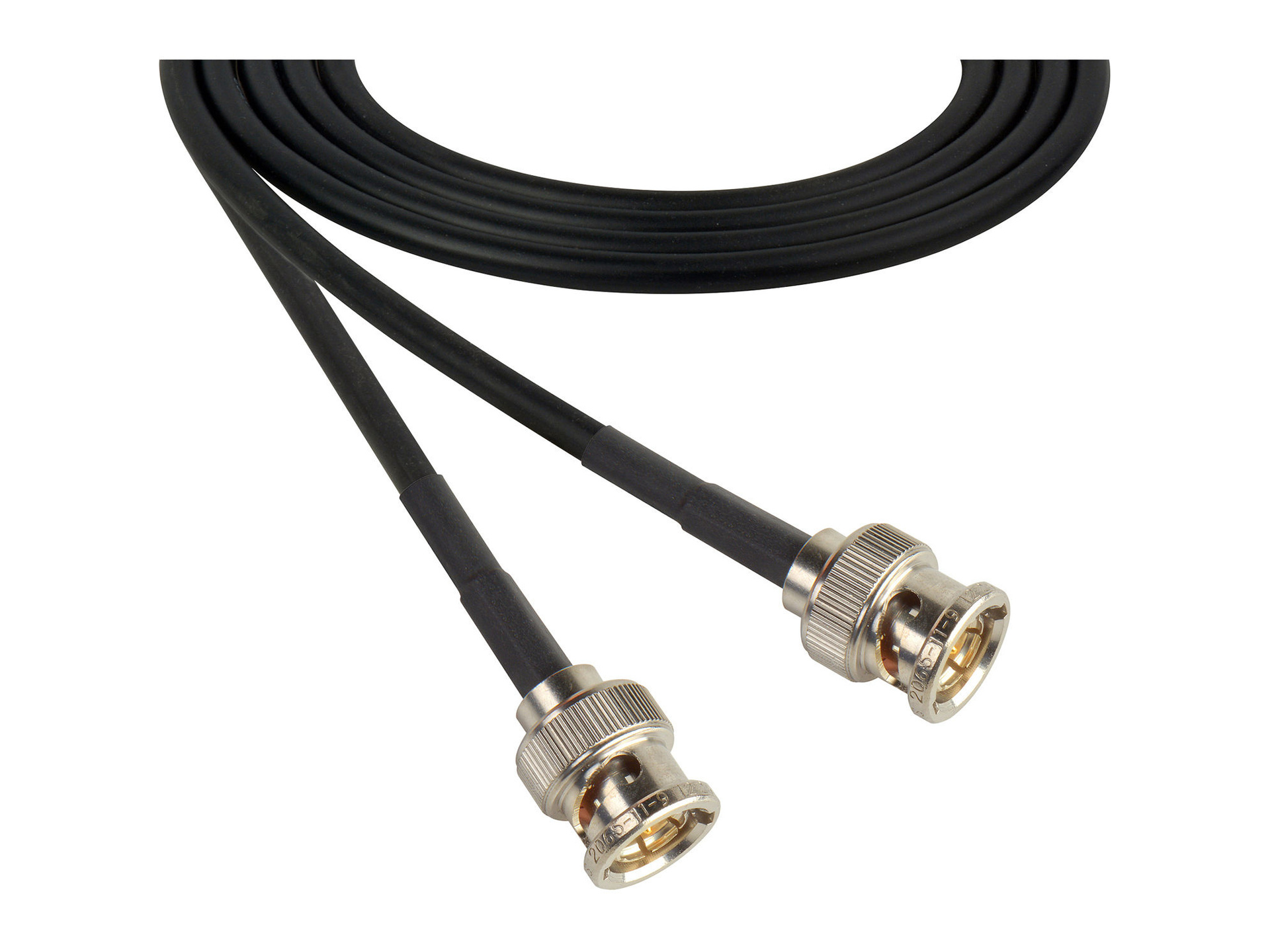

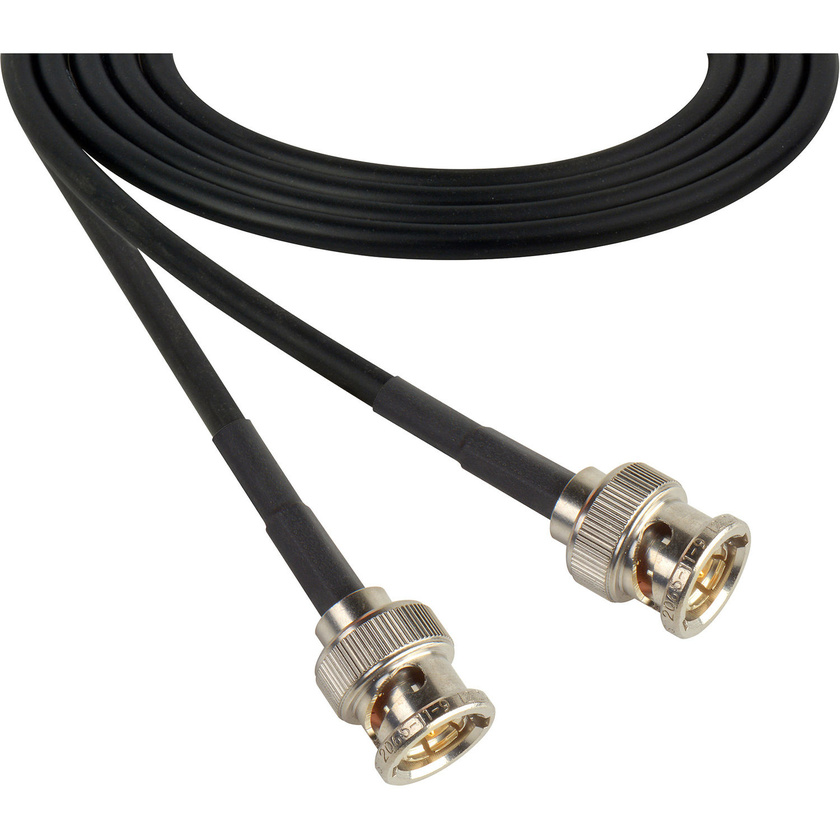

The Laird Digital Cinema HD-SDI Belden 1855A RG59 Coax Cable with Male BNC Connectors (100') is designed as a low-profile, lightweight BNC video cable that enables reliable HD-SDI and SDI transmissions. Engineered with a 23 AWG gauge, this cable is constructed using Belden 1855A sub-mini coaxial material, and features a male Kings 2065-11-9 BNC connector on each end for secure and convenient connectivity.
Laird Digital Cinema HD-SDI Belden 1855A RG59 Coax Cable with Male BNC Connectors (100')
In stock Ships Monday
Shipping & Availability
Ships Monday.
Deliver to
New South Wales
for $24.40
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- 75-Ohm 23 AWG Belden 1855A RG59 Cable
- Low Profile, Light Sub-Mini Design
- Kings 2065-11-9 Male BNC Connectors
- Copper Conductor, FHDPE Insulation
- Duofoil/TC Outer Shield, PVC Jacket
- For HD-SDI & SDI Transmissions
Description
Specifications
| Interface | HD-SDI |
| Connector 1 | 1x BNC Male |
| Connector 2 | 1x BNC Male |
| Coaxial Type | RG-59 (1855A) |
| Cable Length | 100' / 30.5 m |
| Maximum Resolution Support | 1920 x 1080 |
| Materials | Conductor: Bare Copper Jacket: Polyvinyl Chloride (PVC) |
| Colour | Black |
| Shielded | Yes |
| Wire Gauge | 23 AWG |
In The Box
- Laird Digital Cinema HD-SDI Belden 1855A RG59 Coax Cable with Male BNC Connectors (100')
Reviews
(no ratings yet)Details
- Product: Laird Digital Cinema HD-SDI Belden 1855A RG59 Coax Cable with Male BNC Connectors (100')
- Manufacturer: Laird
- Model: 1855-B-B
- SKU: 1855-B-B-100
- RM Product #: 123935
- Cable Connector: BNC Male
- Cable Connector: BNC Male
- Length Meters: 30.5 m
- Length Feet: 100 ft
