The Lenkeng 4K 60Hz 8x8 Matrix Switcher is designed to switch and distribute any of 8 HDMI source signals to 8 HDMI display devices as needed. It supports ultra-high-definition resolution up to 4K x 2K at 60 Hz, along with 3D compatibility. The unit also supports infrared control and RS-232 control for flexible operation. With a data transmission rate of 18 Gbps, it enables reliable high-bandwidth signal handling. Key control is supported for selecting input and output channels, and its pure hardware design allows for simple plug-and-play use.

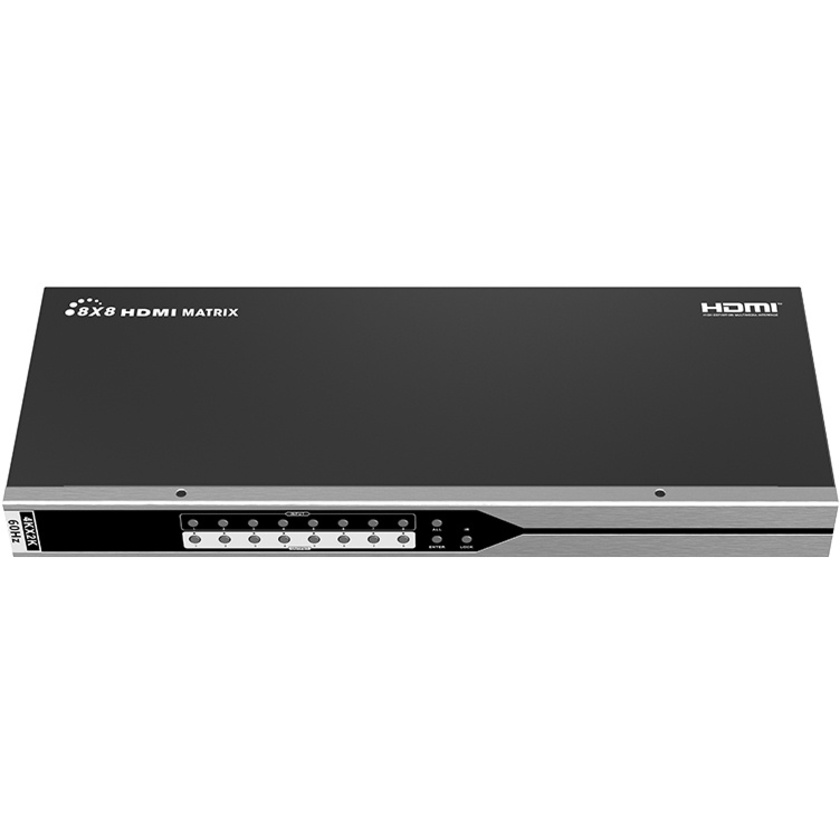

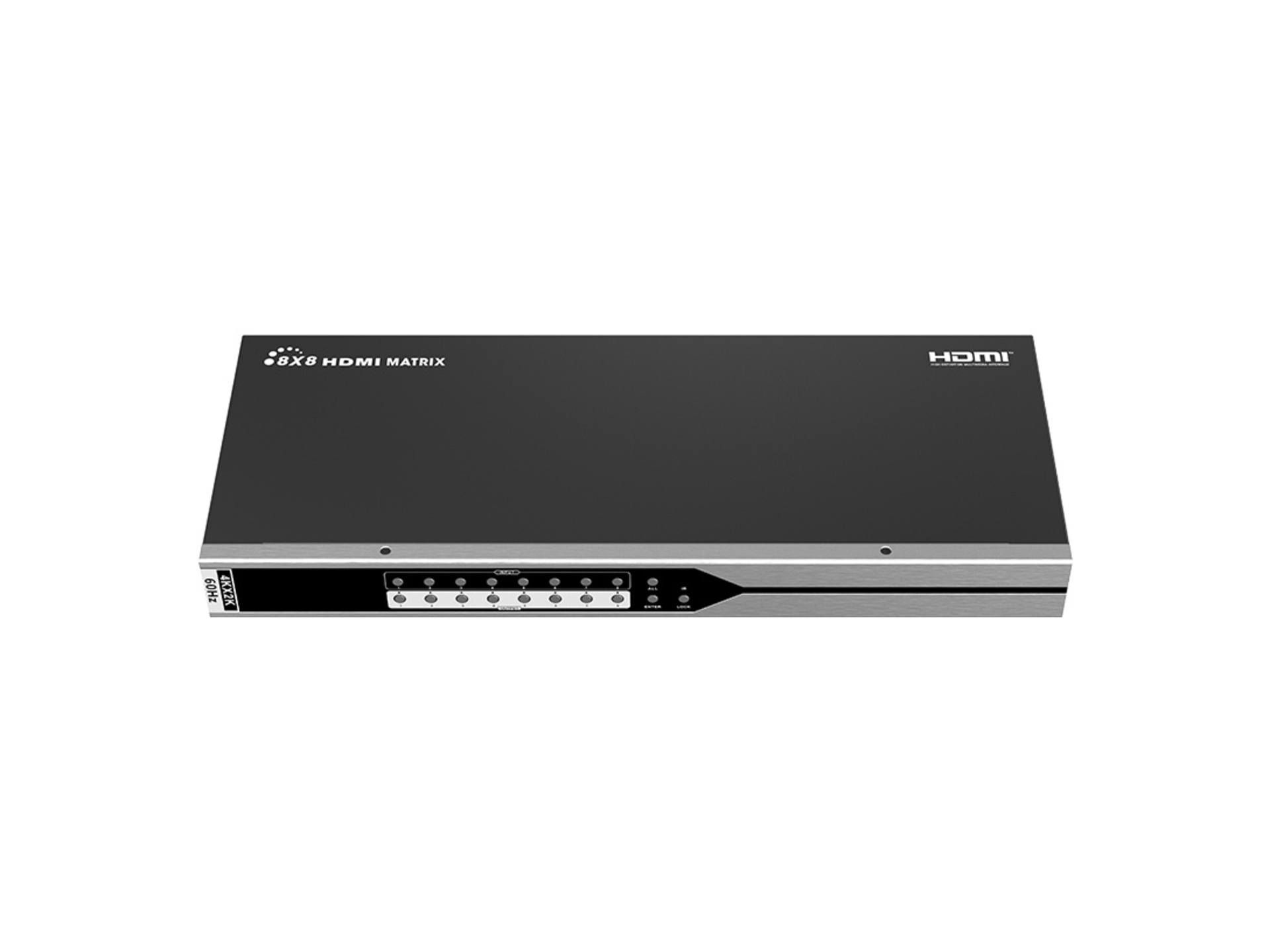

Lenkeng 4K 60Hz 8X8 Matrix Switcher
Contact us for an ETA
Our Price
$839
AUD
Contact us for an ETA
This product can't be purchased at this time, please
contact us
for more information.
Email me when stock arrives
Features
- Routes 8 HDMI sources to displays
- Supports 4K at 60 hertz
- Supports 3D video playback
- Supports infrared and RS-232 control
- Data transfer rate: 18 Gbps
- Hardware design, plug and play
Description
Specifications
| HDMI version | HDMI 2.0 |
| HDCP version | HDCP1.4/HDCP2.2 |
| Video bandwidth | 18Gbps |
| Resolution supported | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/30/50/60Hz, 4096x2160@24/30/50/60Hz |
| RS-232 control | Yes |
| Power supply | DC12V/3A |
| Dimensions | 482.45(L)X179.60(W)X44.40(H)MM |
| Weight | 2.07Kg |
| Consumption | 27W |
| Working temperature | ℃～60℃ |
| Color | Black |
In The Box
- Lenkeng 4K 60Hz 8X8 Matrix Switcher
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Lenkeng 4K 60Hz 8X8 Matrix Switcher
- Manufacturer: Lenkeng
- Model: LKV818-V2
- SKU: LKV818-V2
- RM Product #: 126831
- Warranty: 2 year manufacturer warranty
