Lilliput 7" HDMI On-Camera Monitor

Product #48203 | SKU 668 | Lilliput
Usually ships in 2 - 3 weeks what does this mean?
Our Price $279.00 AUD
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 7" 800 x 480 Display
  • HDMI, YPbPr, Composite Inputs
  • Built-In Battery
  • 140° Horizontal Viewing Angle
  • Includes Ball Mount and Sun Hood

Related Products

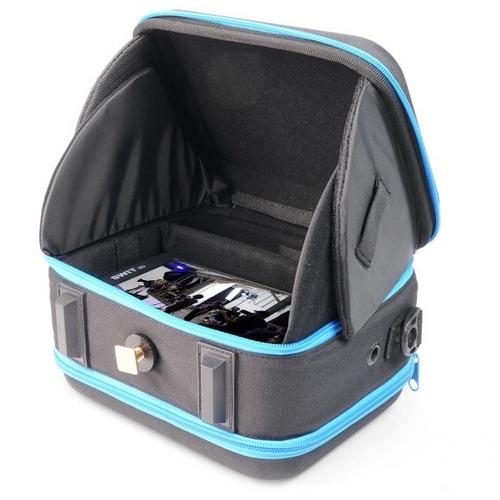

ORCA OR-142 Hard Shell Monitor Bag ORCA OR-142 Hard Shell Monitor Bag
Sensei LCD Cleaning Kit Plus Sensei LCD Cleaning Kit Plus
Sensei LCD Cleaning Kit Sensei LCD Cleaning Kit
SmallHD XLR AC Power Adapter for SmallHD Production Monitors SmallHD XLR AC Power Adapter for SmallHD Production Monitors

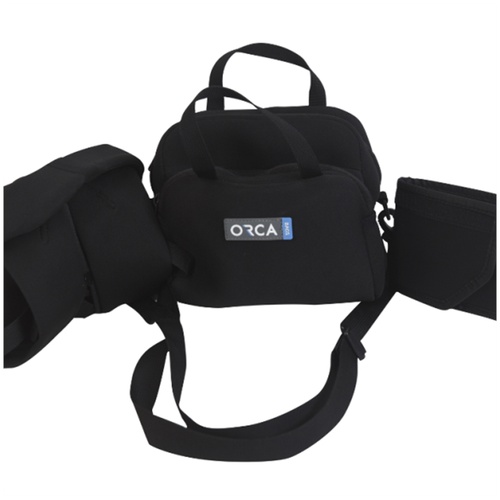

ORCA OR-124 7" Monitor System ORCA OR-124 7" Monitor System
Blackmagic Design URSA Power Supply Blackmagic Design URSA Power Supply
Platinum Tools 19101 Precision Screwdriver Set (33 Pieces) Platinum Tools 19101 Precision Screwdriver Set (33 Pieces)
Sachtler Bags  9" LCD Monitor Bag Sachtler Bags 9" LCD Monitor Bag
Sensei Bulb Air-Blower (Medium, Black) Sensei Bulb Air-Blower (Medium, Black)

Description

With inputs supporting analogue and digital sources, this 7" HDMI On-Camera Monitor from Lilliput provides an 800x480 pixel display for chequing your image's focus and exposure. The display's 16:9 aspect ratio fits most signals output from HD camcorders without letterboxing or pillarboxing the image, ensuring the full-screen resolution is used.

On the rear panel, the HDMI input supports DSLR cameras and newer camcorders with HDMI outputs, up to 1080p resolution. For legacy cameras and analogue equipment, a component YPbPr, as well as dual composite video BNC inputs, are also available.

For wide viewing angles and accurate colours, this monitor features an IPS display with an anti-glare finish and a 500:1 contrast ratio for punchy images. A sun hood is included for preventing excess glare when outdoors. For power, a built-in battery can provide up to 3 hours of use on a full charge. Alternatively, a 6-20 VDC power source can be input via the barrel jack. A ball mount is also included for securing the monitor atop a camera using an available shoe-mount.

Key Features:

  • 7" camera-top monitor with 16:9 aspect ratio
  • 500:1 contrast ratio produces vivid and rich colours
  • Enhanced 450 cd/m2backlight produces a crystal clear picture and shows colours vividly
  • IPS panel offers 130° horizontal and 120° vertical wide viewing angles
  • Built-in 2,200mAh Li-ion battery
  • Shoe mount adapter included

Specifications

LCD Display
LCD Size 7" (18 cm)
Display Resolution 800 x 480
Aspect Ratio 16:9
Brightness 450 cd/m2
Contrast Ratio 500:1
Backlight White LED
Surface Treatment Anti-glare
Viewing Angle 70/70° (left/right) and 50/70° (up/down)
Video
Interface Video, AV1, AV2, YPbPr, HDMI, DC power
Input Connectors Composite (BNC), YPbPr (BNC), HDMI
Input Format Support HDMI Format Support:

FULL HD: 1080p (60/59.94/50)
HD: 1080i (60/59.95/50), 720p (60/59.94/50)
SD: 480i (60/59.94), 576i (50)
General
Control Basic: -Volume down,+ Volume up, menu, 2 x selection key, switch key, power

Advance: Brightness, Contrast, Saturation, Tint, OSD H-Position, OSD V-Position, Reset, Colour Temperature, Red, Green, Blue, Language, Miscellaneous, Exit, Image Flip, Aspect Ratio, Sharpness, OSD duration.
Speaker Built in, 1 W
Battery 7.4 VDC, 2200 mAh
Power Consumption Max: 8 W
Environmental Operating: -20 to 60°C
Storage: -30 to 70°C

Operating at High Temperature and High Humidity: 60°C / 90% RH max, 240 hrs
Dimensions (L x W x D) 188 x 131 x 33 mm
Weight 1.3 kg

In The Box

  • Lilliput 7" HDMI On-Camera Monitor
  • Remote Control
  • HDMI Cable
  • Shoe Mount
  • Sun Shade
  • DC Adapter

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Lilliput 7" HDMI On-Camera Monitor
  • Manufacturer: Lilliput
  • Model: 668
  • SKU: 668
  • RM Product #: 48203
  • Screen Resolution: 800 x 480
  • Display Size: 7.0 inches
  • Monitor Inputs: HDMI
  • Monitor Inputs: Composite
  • Screen Size: 7"
  • Warranty: All LILLIPUT brand products come with a one year manufacturer warranty.
