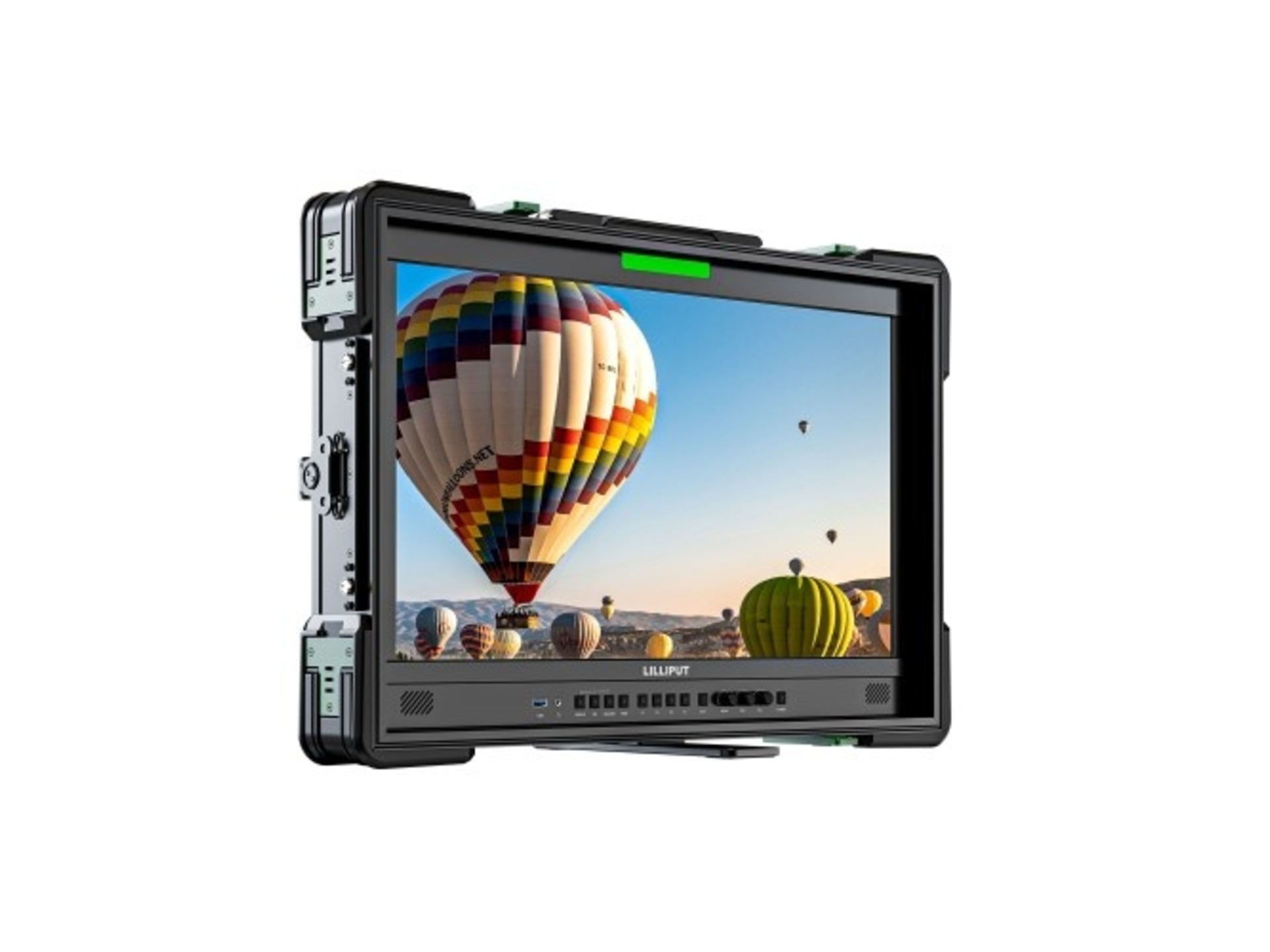

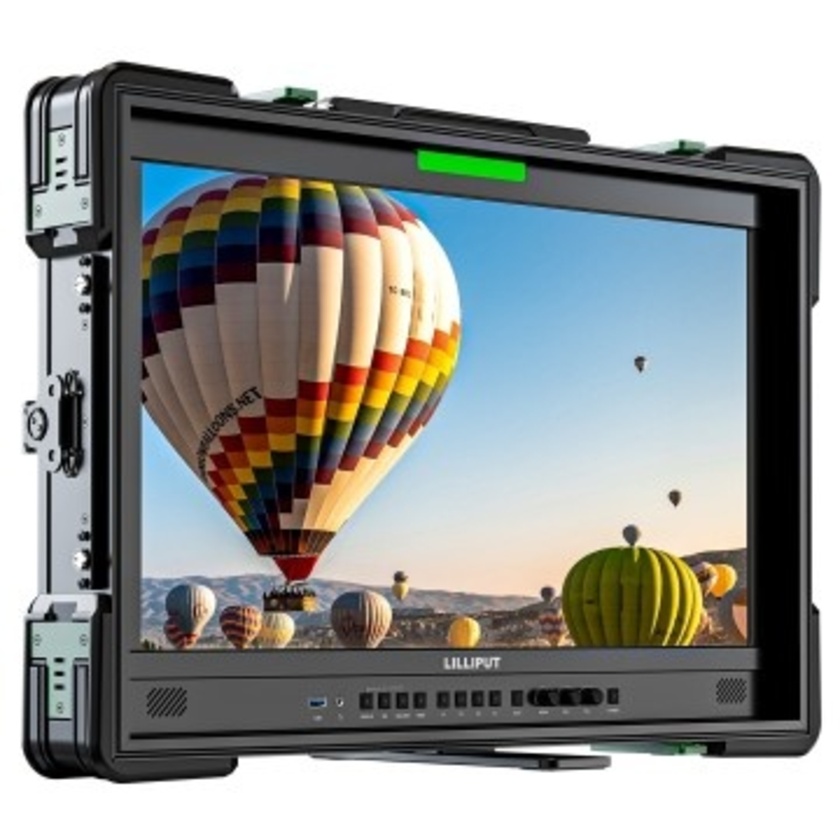

The Lilliput UQ23 23.8" 1200 nit Portable Production Monitor (V-Mount) is the third iteration, and most feature-rich version of our flagship Lilliput Q23 model range.
Featuring a 1200 NIT LED 10 Bit Panel, 100% compliance with the REC.709 colour space, it has the best spec of panel on a Lilliput 23" monitor.
Also, with the ability to input an 8K signal through either HDMI 2.1, 12G-SDI, or via an optional Fiber SFP system it truly is the best of the Lilliput Q-Range.
| Display | |
| Aspect Ratio | 16:9 |
| Brightness | 1200cdm² |
| Colour Space | Calibrate Colour Space to Rec. 709, DCI-P3, NTSC, BT.2020 |
| Display Screen | 23.8" 10 Bit (8+2) |
| Look Up Table Support | 3D LUT (.cube format) |
| Resolution | 3840 x 2160 |
| Viewing Angle | 178° / 178° |
| HDR | ST2084 300 / 1000 / 10000 / HLG |
| Supported Log Formats | SLog 2 / SLog 3 / CLog / NLog / ArriLog/ JLog / User |
| Remote Control | |
| GPI | 1 |
| LAN | 1 |
| RS422 | In / Out |
| Supported Formats | |
| HDMI Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60 |
| SDI Formats Supported | 4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| SFP Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| Audio | In / Out (48 kHz PCM Audio) |
| Built In Speakers | 2x |
| Ear Jack | 3.5mm |
| HDMI Audio Frequency | 8 Ch / 24 Bit |
| SDI Audio Frequency | 16 Ch / 48KHz / 24-Bit |
| Inputs | |
| HDMI Inputs | 1x HDMI 2.1 (Supports 8K Formats) |
| SFP Input | 1x 12G SFP+ (Optional Extra Purchase) |
| SDI Video Inputs | 4x 12G (Supported 8K-SDI Formats Quad-Link |
| Outputs | |
| HDMI Video Outputs | 1x HDMI 2.1 (Supports 8K Formats) |
| SDI Video Outputs | 4X 12G-SDI |
| Size | |
| Dimensions | 576.6mm x 375.5m,m x 53.5mm / 632.4 x 431.3mm x 171mm (with Case) |
| Weight | 7.7kg / 17.8kg |
| Power | |
| Input Voltage | DC 15-24V |
| Power Consumption | <= 90W (19V) |
| Environment | |
| Operating Temperature | 0°c to 50°c |
