Providing cinematic lighting with ease, the Litepanels Gemini 2x1 Hard RGB LED Light Panel is a lightweight fixture. With a lux output of 23,000 at 3m, it offers a versatile colour temperature range of 2700 to 10,000K. This allows the panel to accurately match both tungsten and daylight sources. The dimming feature provides flicker-free adjustment from 0 to 100%, while the high CRI of 95 ensures color accuracy. With full RGBWW color gamut mixing and built-in HSI color mode, you have complete control over hue, saturation, and intensity. The panel also includes a gel mode with a wide selection of 300 colored gels and an effects mode with 11 unique special effects. You can make all of these adjustments locally or remotely via console, with the option of wireless operation through DMX, RDM, and CRMX protocols. The Gemini comes with a standard yoke and a power cable with bare ends.

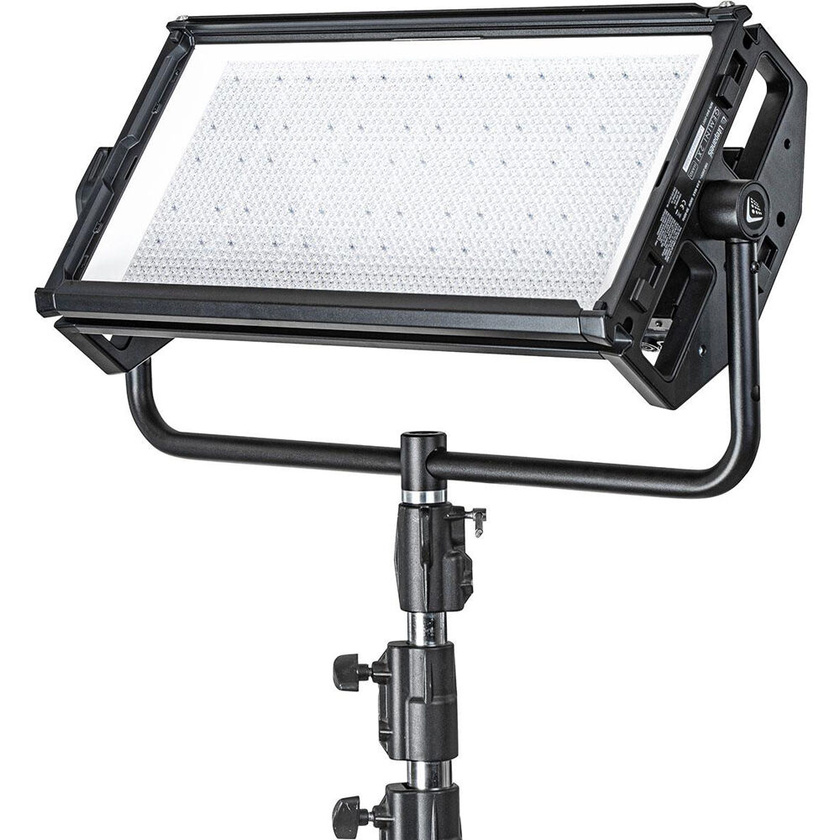

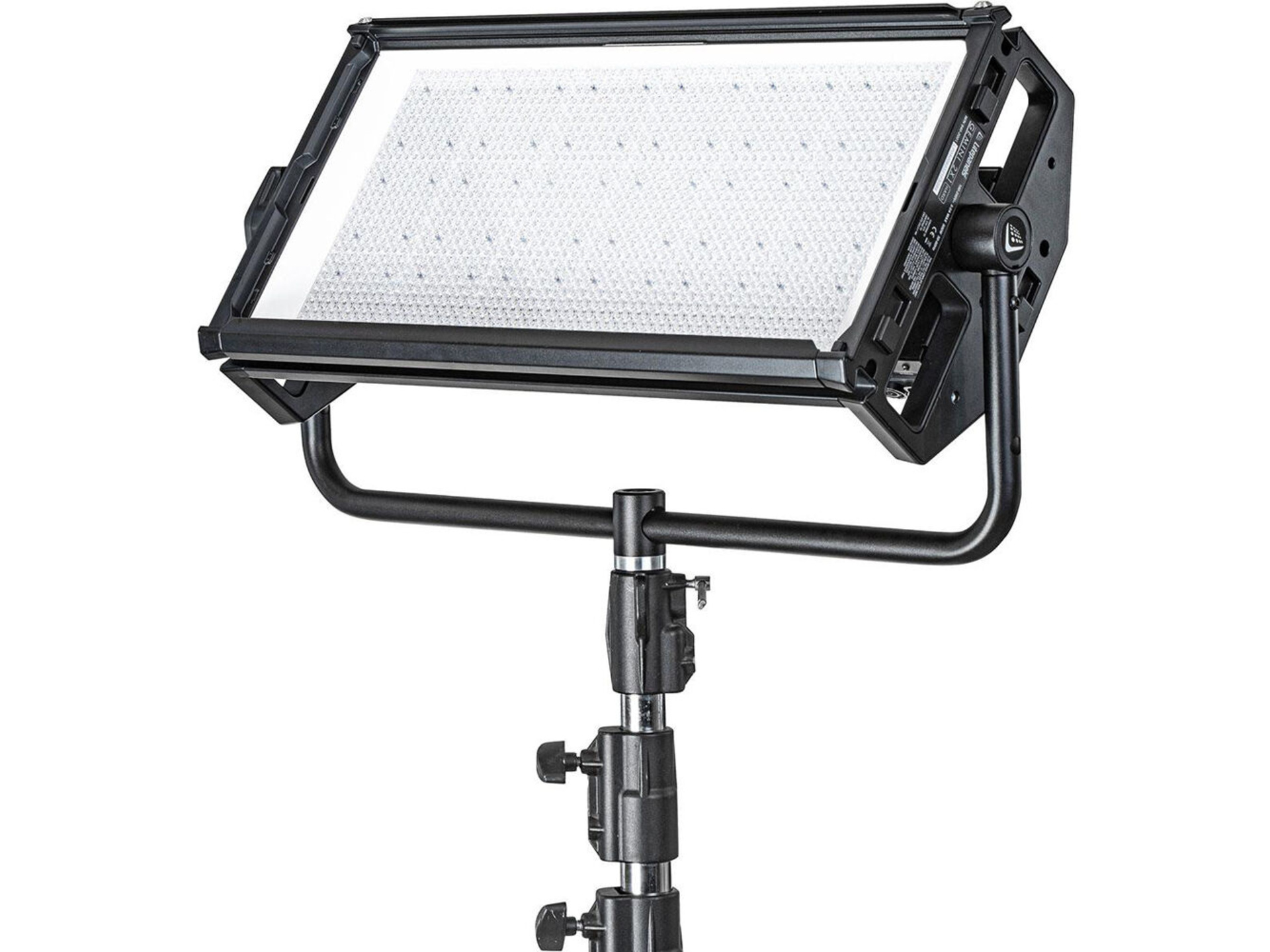

Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, Bare Ends Power Cord)
Usually ships in 8 - 12 weeks
Our Price
$10,199
AUD
Usually ships in 8 - 12 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 8 - 12 weeks.
Deliver to
New South Wales
for $54
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
8 - 12 weeks
Click & Collect
Features
- For Studio & Film/TV Production
- Output: 23,000 Lux at 3m (5600K)
- 2700 to 10,000K CCT; RGB Control
- 25 x 12.6" Panel; AC/DC Operation
- CRI 95 | TLCI 97
- Fan Cooled with Quiet Mode
Description
Specifications
| Key Specs | |
| Item Type | 1x LED Light Panel |
| Included Storage Case | No |
| Photometrics | 20° at 3200K: 16,722 fc / 180,000 Lux at 3.3' / 1 m* 1858 fc / 20,000 Lux at 9.8' / 3 m 20° at 5600K: 19,230 fc / 207,000 Lux at 3.3' / 1 m* 2136 fc / 23,000 Lux at 9.8' / 3 m *Standardised Measurement Calculated Internally Based on Closest Distance |
| Colour Temperature | 2700 to 10,000K |
| Colour Modes | RGB, Daylight, Tungsten |
| Colour Accuracy Standard | CRI 95 TLCI 97 |
| Dimming | Built-In Dimmer (Continuous) • 0 to 100% |
| Front Accessory Mount | Proprietary |
| Wireless Remote Control Type | Wireless CRMX Wireless DMX |
| Power Source | AC Power (Cable Included) Battery (Not Included) |
| Battery | 1x Rechargeable, 28 to 33 VDC (Not Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 28 to 33 VDC |
| Power Consumption | 500 W |
| Fixture Mounting | 1x 1-1/8" Stud (Via Yoke Mount) |
| Light Fixture | |
| Item Type | 1x LED Light Panel |
| Included Filters | Diffusion, Soft Diffusion |
| Included Storage Case | No |
| Photometrics | 20° at 3200K: 16,722 fc / 180,000 Lux at 3.3' / 1 m* 1858 fc / 20,000 Lux at 9.8' / 3 m 20° at 5600K: 19,230 fc / 207,000 Lux at 3.3' / 1 m* 2136 fc / 23,000 Lux at 9.8' / 3 m *Standardised Measurement Calculated Internally Based on Closest Distance |
| Colour Temperature | 2700 to 10,000K |
| Colour Modes | RGB, Daylight, Tungsten |
| Colour Accuracy Standard | CRI 95 TLCI 97 |
| Dimming | Built-In Dimmer (Continuous) • 0 to 100% |
| Cooling System | Fan |
| Expected Lamp Life | 35,000 Hours |
| Beam Angle | 20° Unmodified |
| Built-In Flash | No |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Connectivity | |
| Wireless Remote Control Type | Wireless CRMX Wireless DMX |
| Mobile App Compatible | Yes, Adapter Required (Not Included): Android & iOS |
| Power & I/O | |
| Power Source | AC Power (Cable Included) Battery (Not Included) |
| Inputs/Outputs | 1x powerCON TRUE1 Power Input 1x powerCON TRUE1 Power Output 1x XLR 3-Pin Battery/Power Input (28 VDC) 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x RJ45 DMX Input 1x RJ45 DMX Output |
| Battery | 1x Rechargeable, 28 to 33 VDC (Not Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 28 to 33 VDC |
| Included Adapter / Cable | 1x Bare Ends to powerCON TRUE1 Cable |
| Inline Switch | No |
| Power Pass-Thru | Yes |
| Power Consumption | 500 W |
| Mounting | |
| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | 1x 1-1/8" Stud (Via Yoke Mount) |
| Environmental | |
| Environmental Protection | Dust-Resistant (IP20) |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| General | |
| Display | LCD |
| Certifications | COE, FCC, IC, cETL |
| Materials | Aluminium (Housing) |
| Dimensions | 25 x 12 x 6.9" / 63.5 x 30.5 x 17.5 cm 29.4 x 20.8 x 6.9" / 74.7 x 52.8 x 17.5 cm (Fixture with Yoke) |
| Weight | 25.3 lb / 11.5 kg |
In The Box
- Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, Bare Ends Power Cord)
- Litepanels Gemini 2x1 Domed Diffuser
- Litepanels Gemini 2x1 Ultralight Diffuser
- Standard Yoke
- Litepanels Power Cable for Gemini LED Light (Bare Ends)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Litepanels Gemini 2x1 Hard RGB LED Light Panel (Standard Yoke, Bare Ends Power Cord)
- Manufacturer: Litepanels
- Model: 940-2401
- SKU: 940-2401
- RM Product #: 114978
- Colour Temperature: 2700 - 10,000K
