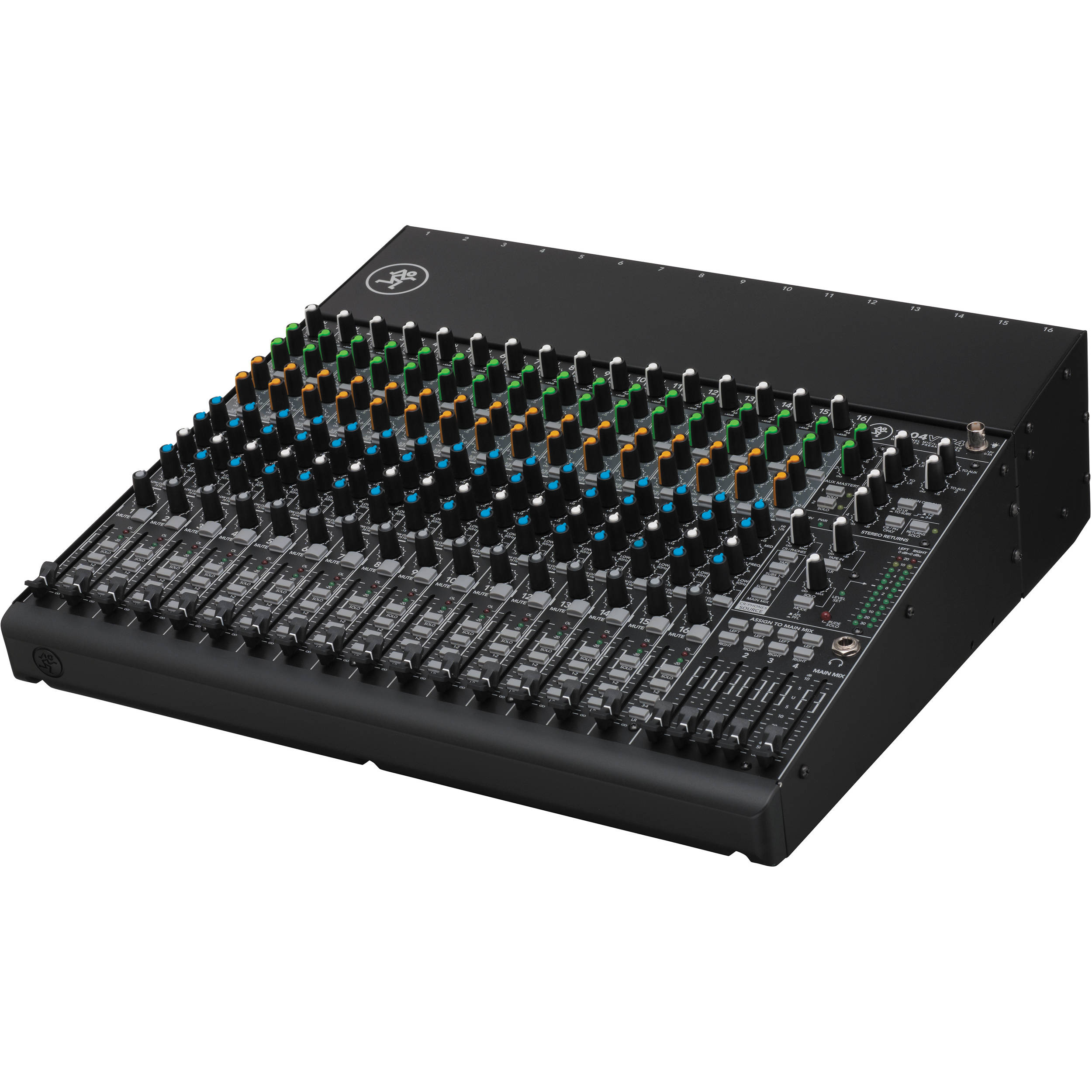

Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer

Product #13308 | SKU 1604-VLZ4 | Mackie
Usually ships in 1 - 2 weeks what does this mean?
Our Price $2,209 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $9.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • For Sound Reinforcement Applications
  • 16x Onyx Preamps
  • 3-Band AEQ
  • LED Metre
  • 48V Phantom Power
  • Low Noise, High Headroom

Description

The Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer is a powerful and versatile audio mixer that combines the excellence of Onyx preamps with a design that ensures high-headroom and low-noise performance. With its compact 4-bus structure, this mixer offers 16 channels that include an Onyx microphone preamplifier, line input, and insert, allowing for seamless application flexibility and outstanding professional performance.

One of the standout features of the Mackie 1604VLZ4 is its durability, boasting a solid-steel chassis that is built to last even in demanding environments. Additionally, its controls are designed with high-contrast for easy and tactile control, ensuring a smooth and efficient mixing experience. This mixer has become a favorite among bands and is commonly used in professional broadcast and post-production facilities.

To enhance its functionality, the 1604VLZ4 comes equipped with a pair of rack ears and a power cord, allowing for convenient installation and immediate use. With its exceptional sound quality, rugged construction, and user-friendly design, the Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer is an ideal choice for professionals in need of a reliable and versatile mixing solution.

Specifications

Noise Main Mix Noise:
Main Mix Fader @ Unity, Channel Faders Down: -88.5 dBu (92 dB signal-to-noise ratio, ref +4 dBu)
Main Mix Fader @ Unity, Channel Faders @ Unity: -82.5 dBu
(20 Hz to 20 kHz bandwidth, 1/4" main out, channel gains at unity, channel EQs flat, all channels assigned to main mix, odd channels panned left, even channels panned right)
Total Harmonic Distortion (THD) Microphone In to Insert Send: <0.0007%
Microphone In to Main Out: <0.005%
(1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth)
Crosstalk / Attenuation Channel Mute Switch Engaged: -84 dBu
Channel Gain Knob Down: -84 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain @ unity)
Frequency Response Microphone Input to Main Output (Gain @ Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 Hz to >100 kHz
Equivalent Input Noise 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain
Common Mode Rejection Ratio Better than -70 dB @ 1 kHz
Maximum Level Microphone In: +22 dBu
All Other Inputs: +22 dBu
Main Mix TRS Out: +28 dBu
All Other Outputs: +22 dBu
Impedance Microphone In: 2.5 kΩ
Channel Insert Return: 2.5 kΩ
All Other Inputs: 10 kΩ or greater
Tape Out: 1.1 kΩ
All Other Outputs: 120 Ω
Equaliser High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB sweep 100 Hz to 8 kHz
Low Shelving: ±15 dB @ 80 Hz
Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz
Power Consumption 50 W, 100 to 120 VAC, 50 to 60 Hz
Operating Temperature 32 to 104°F (0 to 40°C)
Fuse Rating 100 to 120V: 1 A slo blo, 5 x 20 mm
220 to 240V: 0.5 A slo blo, 5 x 20 mm
Dimensions 17.0 x 17.3 x 5.1" (433.0 x 440.0 x 129.0 mm)
Weight 20.0 lb (9.1 kg)

In The Box

  • Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer
  • Pair of Rack Ears
  • Power Supply

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Mackie 1604VLZ4 16-Channel 4-Bus Compact Mixer
  • Manufacturer: Mackie
  • Model: 1604-VLZ4
  • SKU: 1604-VLZ4
  • RM Product #: 13308
