Mackie Mix12FX 12-Channel Compact Mixer with Effects

Product #39002 | SKU MACMIX12FX | Mackie
| Write a review
Usually ships in 1 - 2 weeks what does this mean?

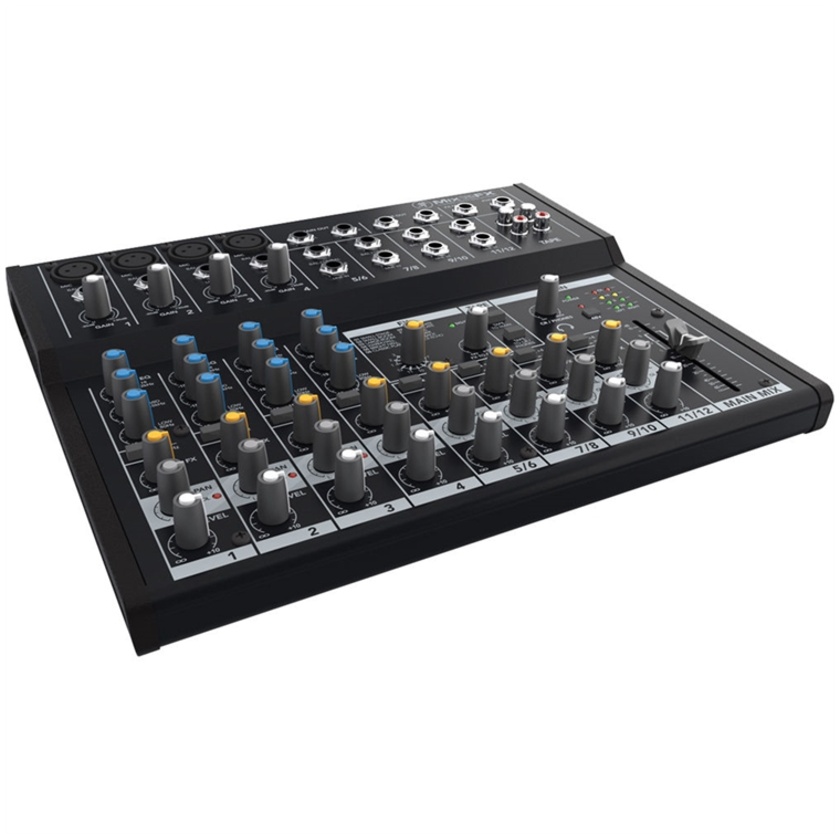

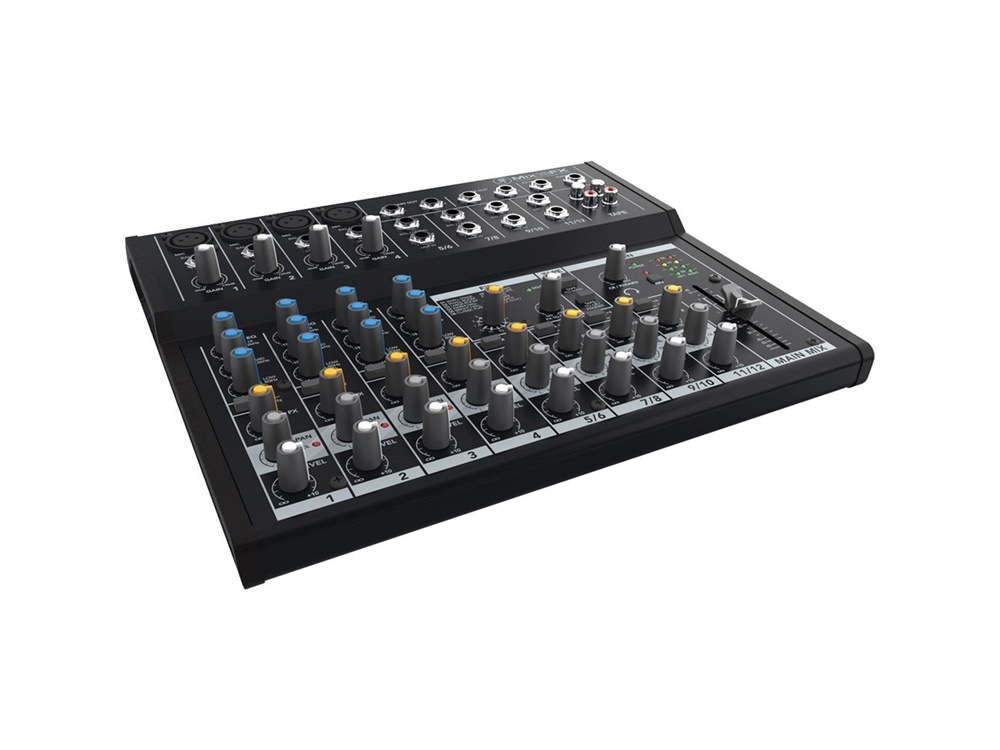

Mackie Mix12FX 12-Channel Compact Mixer with Effects
Our Price $269 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +
Afterpay
Email me when stock arrives
Request price match
Talk to our experts
Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • 4 Mic/Line Inputs with 3-Band AEQ & HPF
  • 4 Stereo 1/4" Line Inputs
  • Stereo RCA Tape Inputs & Outputs
  • Pan, Level & Overload Indication
  • 48V for Condenser Mics
  • 12 FX - Reverbs, Choruses & Delays

Description

The Mackie Mix12FX 12-Channel Compact Mixer with Effects is a versatile and durable 12-channel compact mixer that is specially designed for various sound reinforcement applications. With its high-quality components and sturdy metal chassis, this mixer offers exceptional performance. It provides four mic/line inputs with 48V phantom power, allowing you to connect dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

Each of the four mic/line inputs is equipped with XLR and 1/4" connectors, along with a dedicated 3-band AEQ, a 75 Hz high-pass filter, pan control, level control, and an LED overload indicator. Additionally, the four stereo 1/4" line inputs offer +4/-10dB operation, level control, balance control, and an LED overload indicator.

The Mix12FX also includes 12 built-in effects to enhance your mix. These effects include reverbs, choruses, and delays, allowing you to add depth and polish to your sound.

Specifications
Key Specs
Number of Analogue Input Channels 12 (4 Mono / 4 Stereo)
Number of Mic Preamps 4
Analogue Output Channels 1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Mix Routing Stereo FX Send / Stereo Main Mix
AEQ 3-Band AEQ
Built-In Effects Yes
Wireless No
Rack Mountable No
Mixer
Number of Analogue Input Channels 12 (4 Mono / 4 Stereo)
Number of Mic Preamps 4
Analogue Output Channels 1x Stereo Master Output
1x Stereo Control Room/Monitor Output
1x Mono FX Send Output
1x Stereo Tape/Record Output
1x Stereo Headphone Output
Mix Routing Stereo FX Send / Stereo Main Mix
Faders & Level Adjustment 8x Channel Knob
1x Master Fader
1x FX Knob
Metres Main Metre:
1x 4-Segment LED
Signal Processing
Gain/Trim Range -10 Up to +4 dB
Dynamic Processing No
Sidechain Filters No
AEQ 3-Band AEQ
AEQ Parameters High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Graphic AEQ Yes
Filters Low-Pass: 75 Hz, 18 dB/Octave
Solo/Mute No
Built-In Effects Yes
Performance
Frequency Response Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level XLR Mic Input:
+19 dBu
Line Input:
+21 dBu
I/O Impedance Mic Input:
3.8 Kilohms
Line Input:
≥ 10 Kilohms
Tape Output:
1 Kilohms
Headphone Output:
22 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk Input to Output:
-85 dB at 1 kHz (20 Hz to 20 kHz)
Master Fader Off:
-75 dB at 1 kHz
CMRR > -70 dB at Max Gain (1 kHz, Mic In to Insert Send Out)
EIN -122 dBu at Max Gain
Noise Floor All Outputs:
-100 dBu (Master Level at -∞, Channel Levels at -∞)
-90 dBu (Master Level at Unity, Channel Levels at -∞)
-85 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N Mic Input to Main Output:
< 0.25% (+4 dBu)
Connectivity
Analogue Inputs 4x XLR 3-Pin Balanced/Unbalanced Mic Input
4x 1/4" TRS Balanced/Unbalanced Line Input
8x 1/4" TRS Balanced/Unbalanced Stereo Line Input (4 Stereo Pairs)
1x Stereo RCA Coaxial Unbalanced Stereo Tape Input (1 Stereo Pair)
Analogue Outputs 2x 1/4" TRS Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Stereo Control Room Output (1 Stereo Pair)
1x 1/4" TRS Stereo Output
1x 1/4" Alt Send
1x Stereo RCA Coaxial Unbalanced Stereo Tape Output (1 Stereo Pair)
Phantom Power No
Digital I/O No
Wireless No
Power
AC Input Power 120 VAC, 60 Hz
230 VAC, 50 / 60 Hz
Power Supply Output 18 VAC at 1000 mA
Physical
Rack Mountable No
Dimensions 2.1 x 11.7 x 9.6" / 53 x 297 x 244 mm
Weight 3.7 lb / 1.7 kg

In The Box

  • Mackie Mix12FX - 12-Channel Compact Mixer with Effects
  • Power Cord
