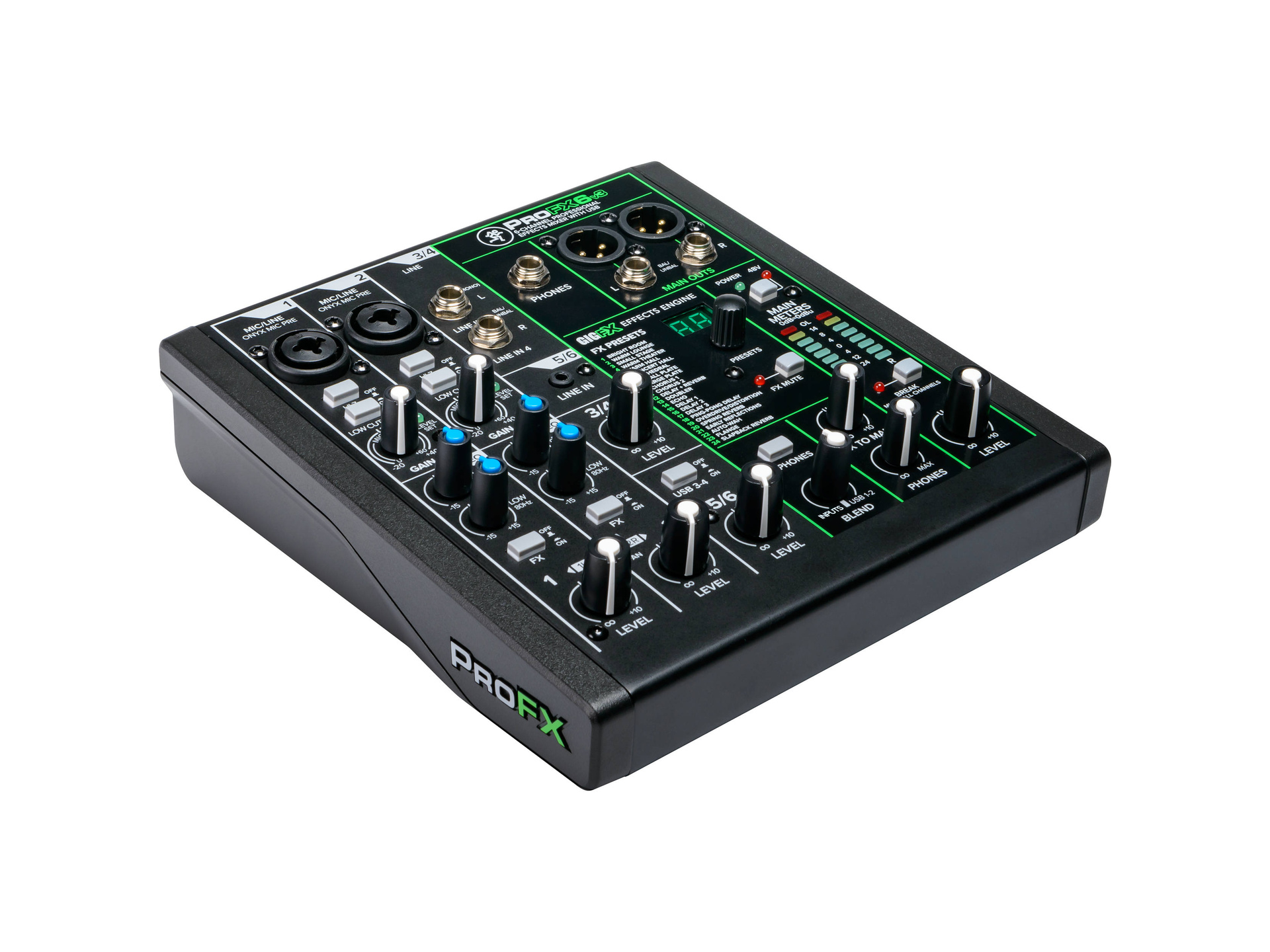

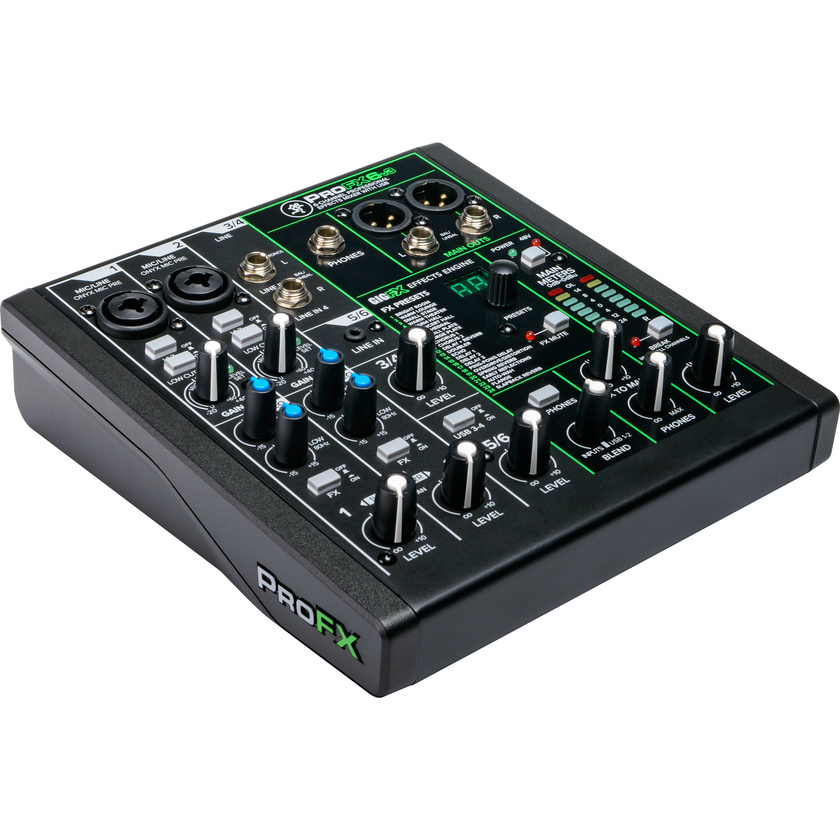

Mackie ProFX6v3 6-Channel Sound Reinforcement Mixer with Built-In FX

Product #118939 | SKU PROFX6V3 | Mackie
Usually ships in 1 - 2 weeks what does this mean?
Our Price $379 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $6.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • 2 x Mic/Line Inputs
  • 2 x Mono/Stereo Line Inputs
  • 2-In / 4-Out USB (24-Bit, 192 kHz)
  • Gig FX Effects Engine (24 FX Presets)
  • Main XLR & 1/4" Outputs + Headphone Out
  • 2 x Onyx Mic Preamps with 48V Phantom

Description

The Mackie ProFX6v3 6-Channel Sound Reinforcement Mixer with Built-In FX is a versatile 6-channel mixing console that offers a range of features, making it ideal for various applications such as live sound, home recording, and content creation. With two Onyx microphone preamps providing 60 dB of headroom and a built-in effects engine with 24 built-in FX, this mixing console delivers high-quality sound.

In addition, the ProFX6v3 includes a 2x4 USB audio interface that supports 24-bit / 192 kHz recording and playback, ensuring optimal performance with zero-latency monitoring. The console offers a variety of connections for different types of inputs. Channels 1-2 feature combo XLR-1/4" mic/line connections, with additional features like Hi-Z for guitars and bass, low-cut filters at 100 Hz, gain controls, 2-band AEQ, stereo linking, level faders, and FX send.

Channels 3-4 have two 1/4" inputs with a level control, while channels 5-6 use a 3.5mm stereo input with a level fader. By engaging channel 5-6's USB3-4 switch, the 3.5mm input is overridden, allowing for USB return from a computer. The master output is easily controlled with a dedicated level knob, and it offers both XLR and 1/4" connectors. Additionally, the ProFX6v3 features a dedicated 1/4" TRS headphone output with an independent level control.

Other useful features of the Mackie ProFX6v3 include an Input-USB 1-2 blend control, FX mute, and FX to main functionality. Overall, this mixing console provides a comprehensive solution for anyone looking to enhance their audio production capabilities.

Specifications

Key Specs
Number of Analogue Input Channels 6
Number of Mic Preamps 2
Analogue Output Channels 2x Stereo Master Output
1x Stereo Headphone Output
Built-In Effects 24x Preset (Factory)
USB I/O 1x USB-B 2.0()
Rack Mountable No
Mixer
Number of Analogue Input Channels 6
Number of Mic Preamps 2
Analogue Output Channels 2x Stereo Master Output
1x Stereo Headphone Output
Metres Main Metre:
2x 8-Segment LED
Metre Range Main Metre:
-24 dB to +14 dB Plus Peak/Clip
Signal Processing
AEQ Parameters Low: ±15 dB at 80 Hz
High: ±15 dB at 12 kHz
Filters High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects 24x Preset (Factory)
Digital Audio
Bit Depth 24-Bit
Performance
Frequency Response Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level +22 dB
Output Level Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance Mic Input:
3.8 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk Adjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-90 dB at 1 kHz
CMRR 70 dB at Max Gain (1 kHz, Mic In to Main Out)
EIN -126 dBu at Max Gain (150-Ohm Input)
Noise Floor All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N Mic Input to Main Output:
< 0.03% (+4 dBu)
Connectivity
Phantom Power +48 V, Selectable On/Off (Applied to All Inputs)
USB I/O 1x USB-B 2.0()
USB I/O Capacity 2x Input / 4x Output
Power
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz
Power Supply Output 12 VDC at 2 A
Physical
Rack Mountable No
Dimensions 2.9 x 7.5 x 8.4" / 7.1 x 19 x 21.3 cm
Weight 2.6 lb / 1.2 kg

In The Box

  • Mackie ProFX6v3 6-Channel Sound Reinforcement Mixer with Built-In FX
  • USB Cable
  • Power Supply
  • Serial Number for Download of Pro Tools | First, Waveform OEM, and The Musician Collection
