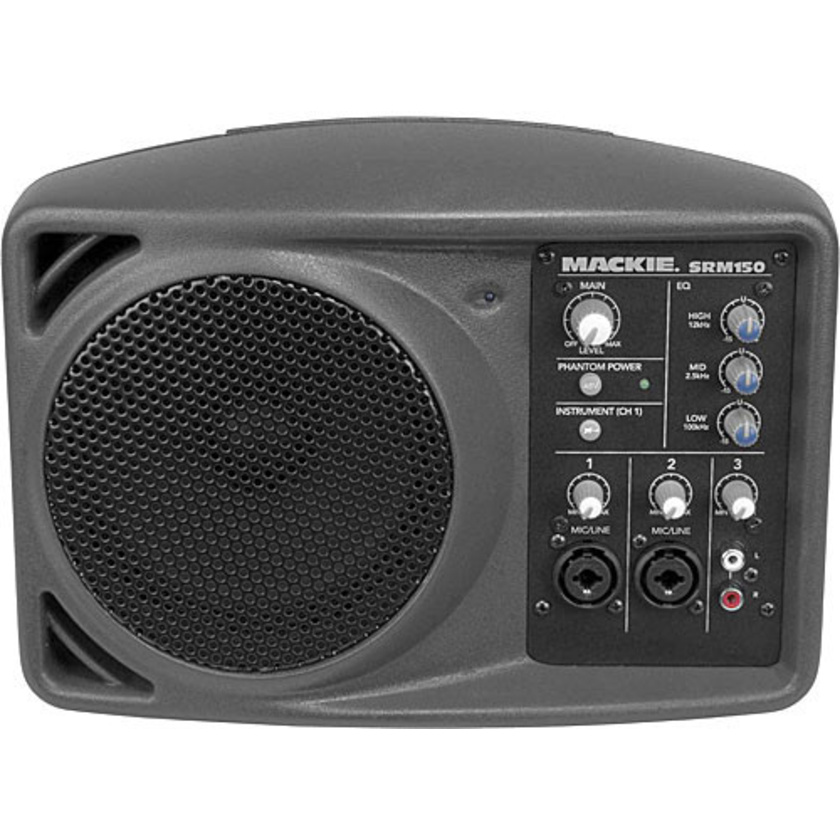

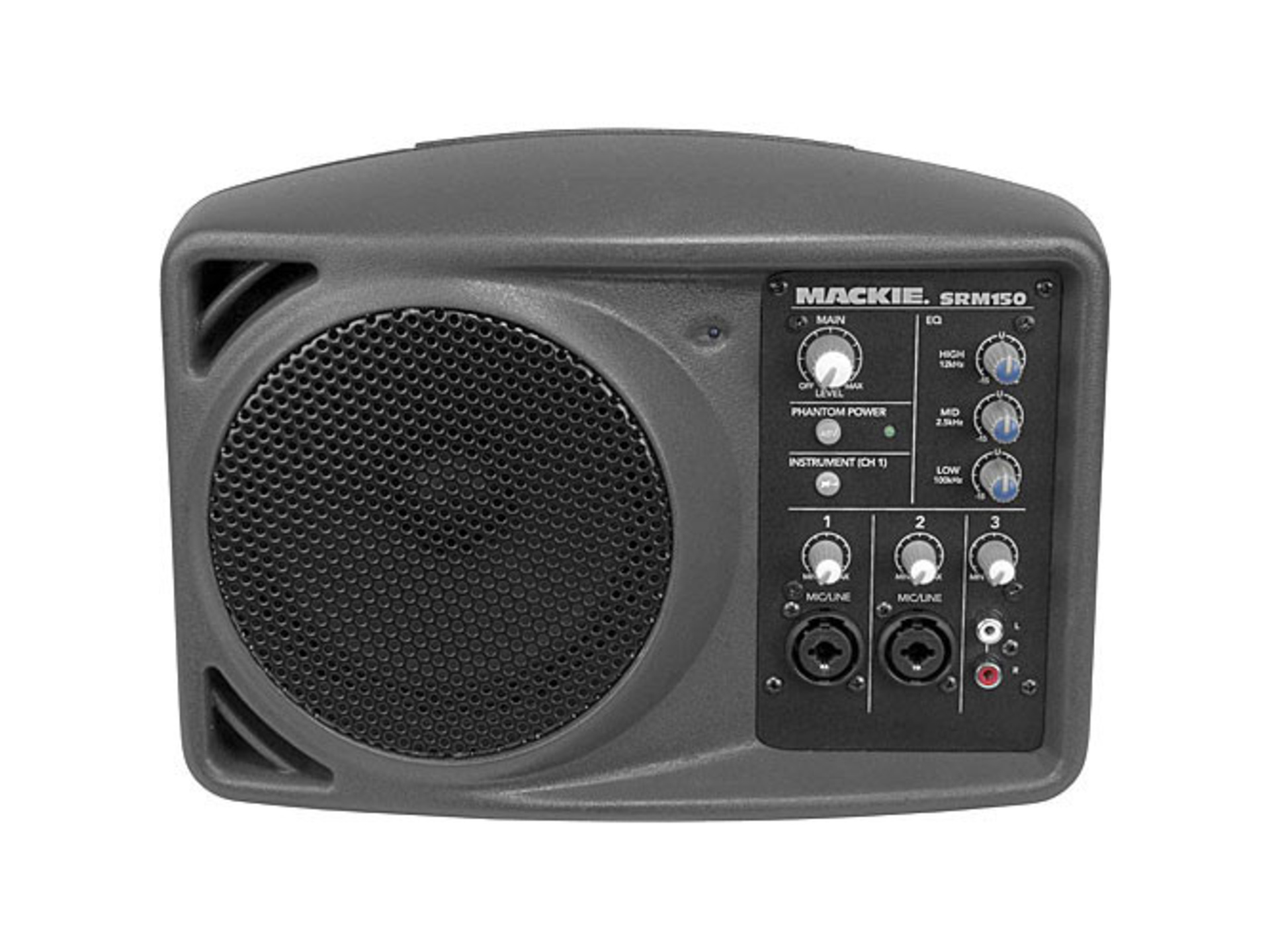

Mackie SRM150 5.25" 150W Compact Active PA System

Product #118940 | SKU SRM150 | Mackie
Usually ships in 1 - 2 weeks what does this mean?
Our Price $679 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $6.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • For Boardroom A/V to Live Music
  • Portable Powered Loudspeaker System
  • 3-Channel Mixer with 3-Band AEQ
  • Two Mic/Line Preamps with 48V
  • Hi-Z Input for Instruments
  • Dedicated Stereo Line-Level Channel

Description

Looking for an ultracompact, versatile active speaker for musical performance or boardroom A/V? Then look no further than the Mackie SRM150 5.25" 150W Compact Active PA System, a powerful, pint-sized power-house of a PA speaker that includes a 3-channel mixer and a mic stand integration system, great for small club/band PA systems, boardrooms, A/V presentations, classrooms, personal monitor for practice or performance, and PA system expansion.

The SRM150's mixer features two combo XLR-1/4" mic/line channels with switchable 48V phantom power, great for powering condenser microphones. Channel 1 can also accept Hi-Z for guitars and bass. A third stereo channel with RCA inputs accepts line-level sources, such a MP3 players, CDs, and other portable devices. All inputs include their own level control knobs. A master level control and 3-band AEQ round out the mixer, allowing you to dial in your perfect sound. Additionally, the rear panel includes a main input and thru-output for connecting to FOH or additional speakers.

The tough, impact-resistant polypropylene enclosure ensure protection from on-the-road wear and tear. The bottom of the cabinet includes an inset, making it mountable on a standard mic stand. An additional inset is provided on the top of the unit, allowing you to deploy the included mic boom extender for mounting a mic above the speaker.

Specifications

Key Specs
Speaker Configuration 1x Full-Range Loudspeaker
Number of Input Channels 3 (2 x Mono, 1 x Stereo)
Amplifier Power Rating 150 W
Audio I/O 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
1x Combo XLR-1/4" TRS Mic/Line Input
1x Combo XLR-1/4" TRS Line Input
1x Stereo RCA TS Input
1x XLR 3-Pin Male Mic/Line Thru
Portable PA System
Speaker Configuration 1x Full-Range Loudspeaker
Number of Input Channels 3 (2 x Mono, 1 x Stereo)
Amplifier Power Rating 150 W
Amplifier Class Class-D
Speakers
Full-Range Driver 5.25" / 133.35 mm Cone
Magnet Neodymium
Signal Processing
Input Pad No
AEQ Contour:
±15 dB at 12 kHz (on Master)
±15 dB at 2.5 kHz (on Master)
±15 dB at 100 Hz (on Master)
Performance
Frequency Response 100 Hz to 17.5 kHz -3 dB
Frequency Range 60 Hz to 22 kHz -10 dB
Maximum SPL 120 dB (Peak)
I/O Impedance Mic Input:
3 Kilohms (Balanced)
Hi-Z Input:
20 Kilohms (Balanced)
Line Input:
10 Kilohms (Balanced)
THD 0.05%
Protections AC Fuse, Output Limiter
Connectivity
Audio I/O 1x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
1x Combo XLR-1/4" TRS Mic/Line Input
1x Combo XLR-1/4" TRS Line Input
1x Stereo RCA TS Input
1x XLR 3-Pin Male Mic/Line Thru
Phantom Power +48 V (Switchable)
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
AC Power I/O IEC Input
Physical
Transport Options Handle (Top)
Mounting 1 x Mic Stand Socket (Bottom)
Construction Material Polypropylene
Environmental Resistance No
Operating Conditions 32 to 104°F / 0 to 40°C
Dimensions 11.2 x 8 x 6.8" / 28.4 x 20.3 x 17.3 cm
Weight 7.6 lb / 3.4 kg

In The Box

  • Mackie SRM150 5.25" 150W Compact Active PA System
  • Mic Stand Adapter
  • Boom Extender
  • Power Cord

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Mackie SRM150 5.25" 150W Compact Active PA System
  • Manufacturer: Mackie
  • Model: SRM150
  • SKU: SRM150
  • RM Product #: 118940
