The Magewell Ultra Encode AIO live media encoders take the capabilities of our original Ultra Encode models to a whole new level for advanced use cases. It builds on the functionality of the Ultra Encode family with expanded features including HDMI and SDI input connectivity in a single unit; 4K encoding and streaming from the HDMI input; simultaneous multi-protocol streaming; higher streaming bitrates; file recording; and much more. This device is ideal for high-quality live streaming of content including sports, education, and live events as well as IP-based production and AV-over-IP.

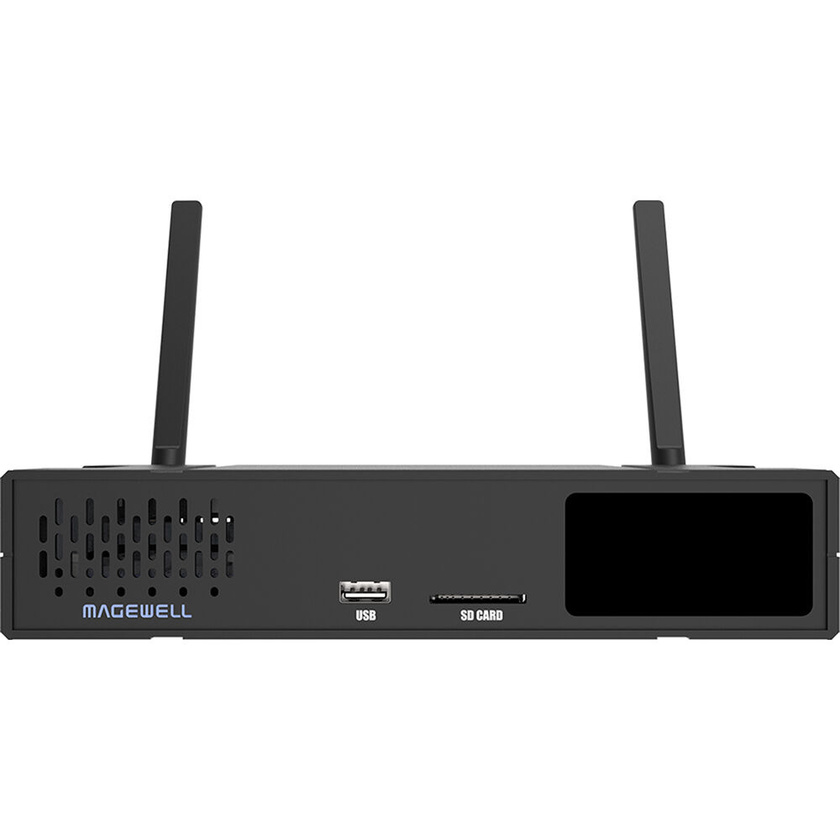

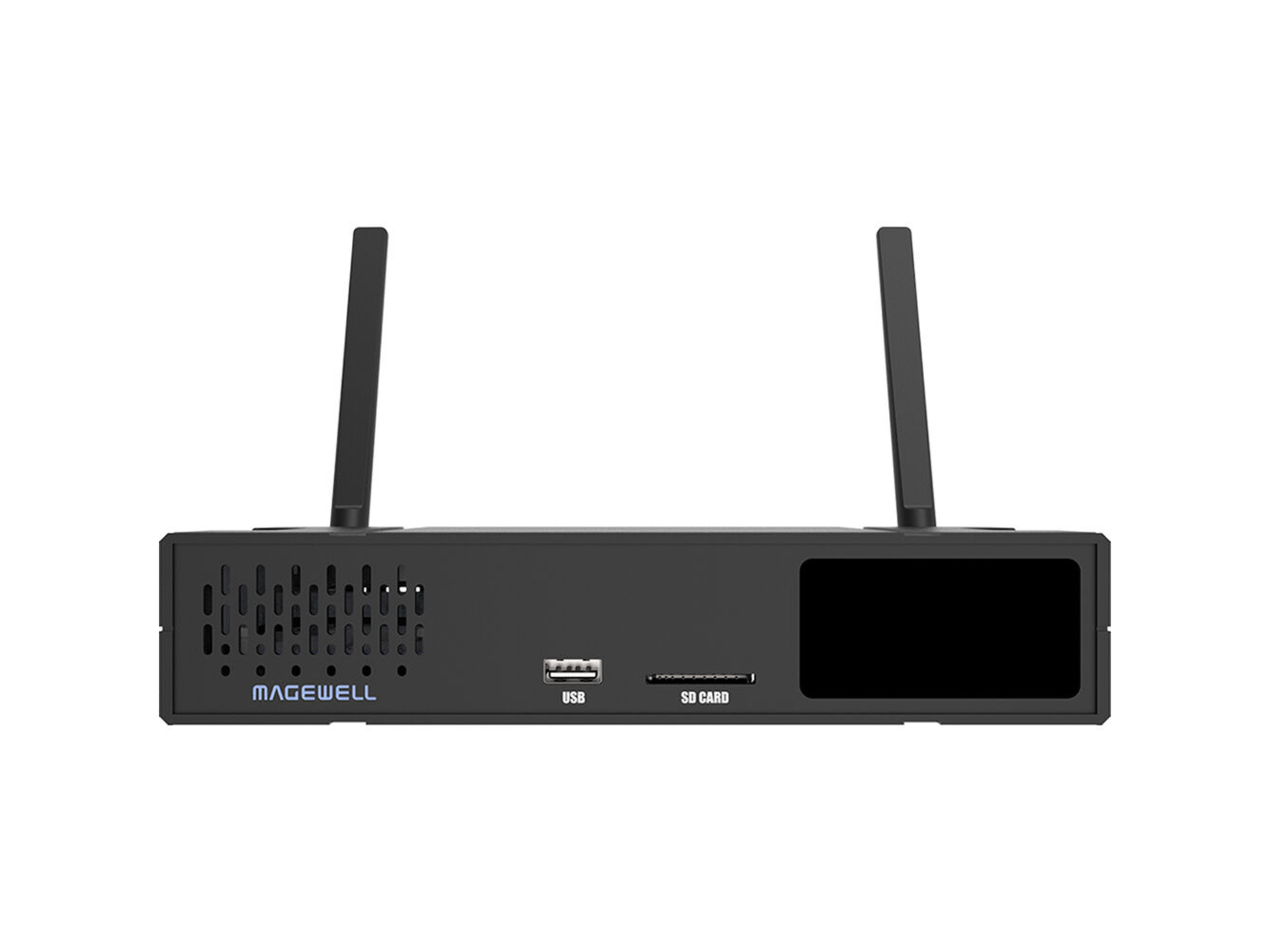

Magewell Ultra Encode AIO
Usually ships in 4 - 6 weeks
Our Price
$1,749
AUD
Usually ships in 4 - 6 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 4 - 6 weeks.
Deliver to
New South Wales
for $25.40
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
4 - 6 weeks
Click & Collect
Features
- Up to 4096 x 2160p60 Input & Loop Output
- H.264/265 Encoding with 8-Ch AAC Audio
- Mix HDMI & 6G-SDI in PIP or Side by Side
- Up to 6 x Simultaneous Streams, 32 Mb/s
- Supports High-Efficiency NDI|HX3
- 3.5mm Audio Line In & Line Out
Description
Specifications
| IP Encoding/Decoding | |
| IP Video | H.264/H.265: 2560 x 1440 to 4096 x 2160 at 30p Encoding H.264/H.265: 1280 x 720 to 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding H.264/H.265: 720 x 576 at 25p Encoding H.264/H.265: 720 x 480 at 30p Encoding |
| IP Audio | AAC: 16 to 256 Kb/s Encoding |
| Transport Protocols | HLS, NDI/HX, NDI/HX2, NDI/HX3, RTMP, RTMPS, RTP, RTSP, SRT |
| Simultaneous Streams | 6 Streams |
| Compatible Services | Facebook Live, Twitch, YouTube Live |
| Wireless | |
| Wireless | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | Yes |
| Cellular Support | No |
| Interfaces | |
| Video I/O | 1x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) Input 1x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) Loop Output 1x HDMI Input 1x HDMI Loop Output |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Input 1x 1/8" / 3.5 mm TRS Output |
| Other I/O | 2x USB-A 1x USB-C |
| HDCP Support | Yes |
| Embedded Audio | HDMI/SDI |
| Internal Recording | |
| Recording Media | 1x SD (Unspecified Type) |
| Recording Modes | 4096 x 2160p at 30/60 fps 2048 x 1080p at 23.98/24/25/29.97/30/48/50/59.94/60 fps 2048 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/48/50/59.94/60 fps 1920 x 1080i at 23.98/24/25/29.97/30/48/50/59.94/60 fps 1280 x 720p at 25/29.97/30/50/59.94/60 fps 720 x 576p at 25 fps 720 x 576i at 50 fps 720 x 480p at 29.97 fps 720 x 480i at 59.94 fps |
| Power | |
| Power I/O | 1x Barrel (9 to 18 VDC) Input |
| Power Consumption | (11.5 W) |
| General | |
| Operating Conditions | 32 to 72°F / 0 to 40°C at 5 to 90% Humidity |
| Storage Conditions | -4 to 158°F / -20 to 70°C |
| Display | LCD |
| Rackmount Size | 1 U (with Included Hardware) |
| Dimensions | 8.5 x 5 x 1.75" / 214.9 x 128.2 x 44.55 mm |
In The Box
- Magewell Ultra Encode AIO
- Locking Power Adapter with Plug Adapters
- HDMI Cable
- Wi-Fi Antenna
- M2.5 Screw
- Retainer Plate
- Short Rack Ear (1 RU)
- Long Rack Ear (1 RU)
