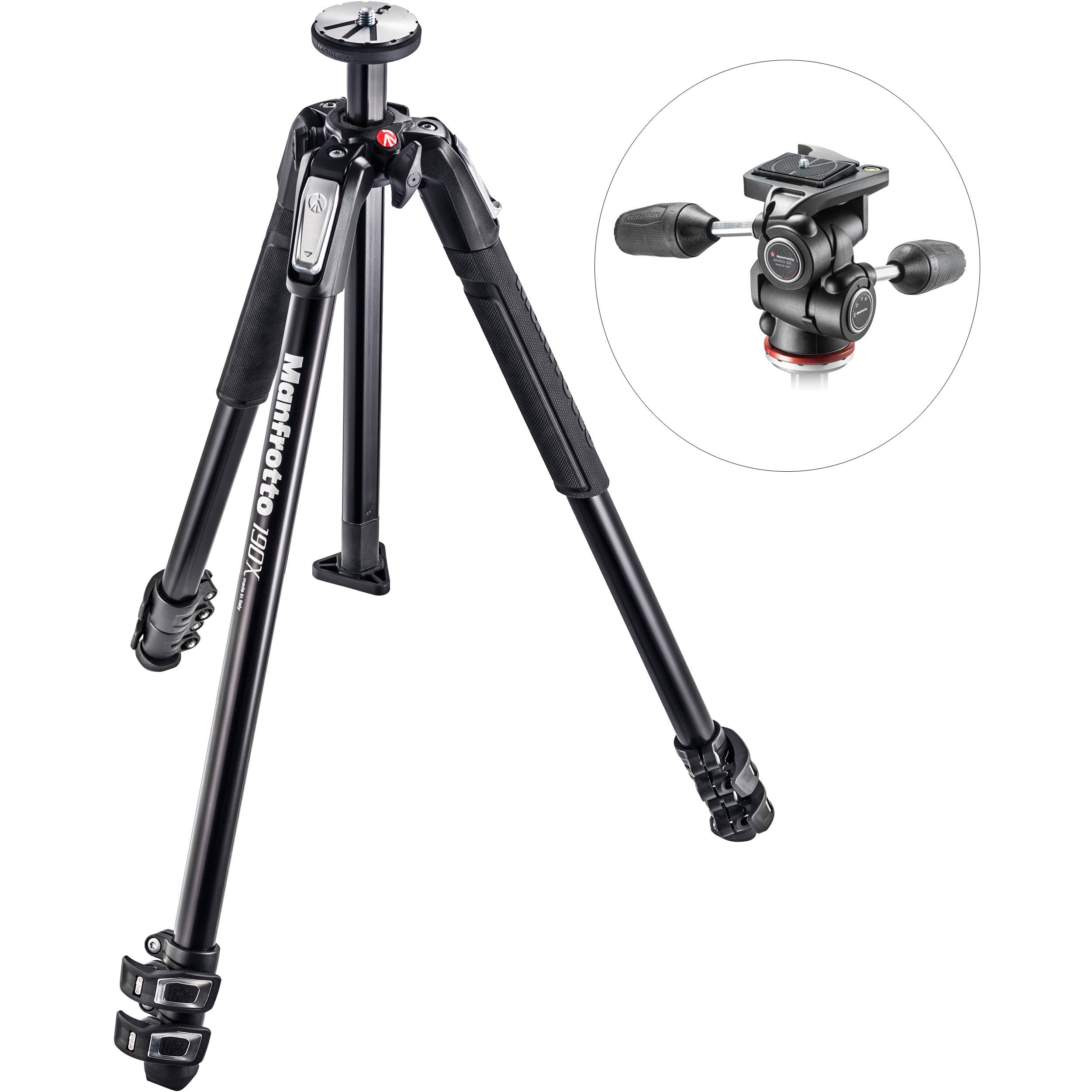

Manfrotto MK190X3-3W1 Aluminum Tripod with 804 MK II 3-Way Pan/Tilt Head

Product #93948 | SKU MK190X3-3W1 | Manfrotto
Usually ships in 2 - 3 weeks what does this mean?
SAVE $80
Sale Price $499 AUD
was $579.00
Usually ships in 2 - 3 weeks what does this mean?
YOU SAVE $80
- +
ON SALE in Sales & Promotions while stock lasts

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to New South Wales for $6.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • Load Capacity: 10kg
  • Max Height: 172cm
  • Min Height: 21cm
  • Folded Length: 71cm
  • Leg Sections: 3

Description

The Manfrotto MK190X3-3W1 Aluminium Tripod pairs the MT190X3 legs with the 804 MK II 3-Way Pan/Tilt Head. The tripod features a Quick Power Lock System, ground level adapter, and an Easy Link attachment. It can hold up to 10kg of gear, and has a maximum height of 172cm. The ground level adapter replaces the centre column to allow the ball head's plate to sit just 21cm above the ground with the legs at their widest angle.

The QPL system allows the three leg sections to be completely extended with one hand for simple set up. An Easy Link adapter attachment allows instant connection between tripod and accessories, such as LED lights for macro photography and DSLR video applications using Manfrotto articulated arms and brackets. Each leg has four angles to accommodate uneven ground or rough terrain.

The included 804 MK II 3-way pan/tilt head incorporates retractable handles to decrease the overall size when not in use. A built-in spring assists with the tilting motion of the head by compensating for heavier lenses and cameras with off-centre loads. The head stands 12cm high, weighs 2.8cm, and can hold up to 10kg. A 200LT-PL quick release plate is included for quickly attaching and removing your camera from the head.

Specifications

General
Head Type Pan & Tilt Head
Base Mount 3/8"-16 Female
Camera Mounting Screw 1/4"-20 Male
Quick Release Plate Type RC2
Load Capacity 22 lb / 10 kg
Number of Bubble Levels 1
Material Technopolymer
Pan & Tilt Range
Lateral Tilt -90° to +30°
Vertical Tilt +90° to -30°
Panning Range 360°
Physical
Dimensions H: 4.7" / H: 11.9 cm
Weight 1.65 lb / 750 g
General
Load Capacity 15.4 lb / 7 kg
Maximum Working Height 63" / 160 cm
Max Height without Centre Column 53.1" / 135 cm
Minimum Working Height 3.5" / 8.9 cm
Closed Length 23.2" / 58.9 cm
Head Mount Type 3/8"-16 Screw
Weight 4.3 lb / 2 kg
Materials Aluminium Alloy
Legs
Leg Lock Type Flip Lock
Independent Leg Spread Yes
Leg Sections 3
Centre Column
Centre Column Features Removable
Centre Column Shape Faceted
Centre Column Sections 1
Centre Column Extension Type Rapid
Lateral / 90-Degree Centre Column No

In The Box

  • Manfrotto MH804 3-Way, Pan-and-Tilt Head with 200LT-PL Quick Release Plate
  • Manfrotto MT190X3 Aluminium Tripod

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Manfrotto MK190X3-3W1 Aluminum Tripod with 804 MK II 3-Way Pan/Tilt Head
  • Manufacturer: Manfrotto
  • Model: MK190X3-3W1
  • SKU: MK190X3-3W1
  • RM Product #: 93948
  • Load Capacity: 10.0 kg
  • Head Type: Pan & Tilt Head
  • Maximum Height: 172.0 cm
  • Minimum Height: 21.0 cm
  • Closed Length: 71 cm
  • Weight: 2.80 kg
