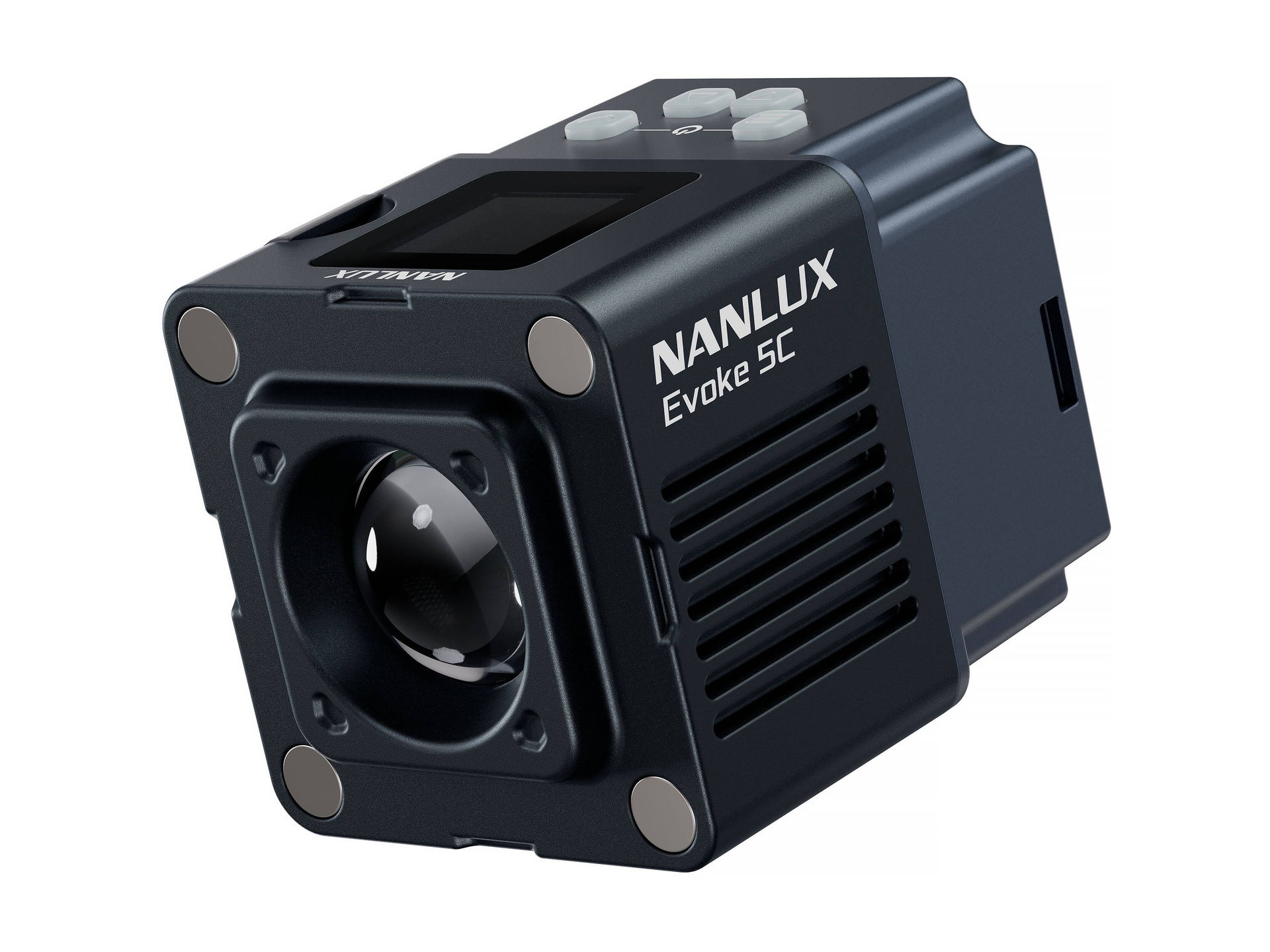

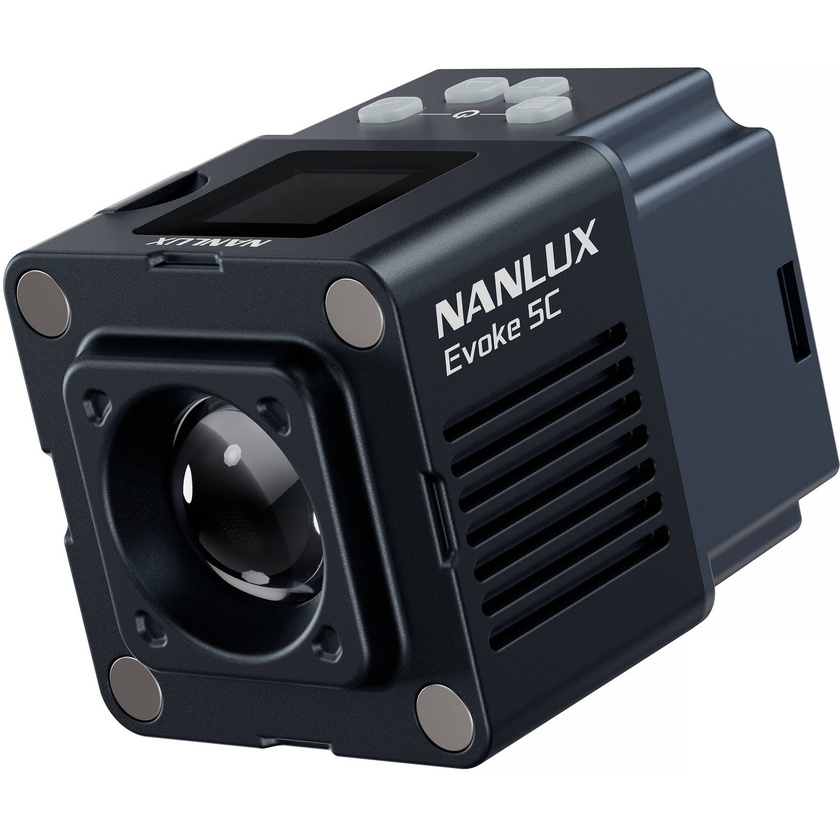

Nanlux Evoke 5C RGB LED Spotlight

Product #125441 | SKU EV5C | NanLite
Coming Soon ETA to be confirmed
NEW
Our Price $399 AUD
Coming Soon ETA to be confirmed
NEW
- +

Email me when stock arrives

Shipping & Availability
ETA to be confirmed. Deliver to New South Wales for $4.90 Change location
Click & Collect Availability
Sydney Out of stock. ETA to be confirmed
Click & Collect

Features

  • Light with Magnetic Accessories & Case
  • Output: 496 Lux at 3.3' (Bare, 5600K)
  • 1000-20,000K CCT; Full RGB Colour Control
  • +/- 200 Green/Magenta Tint Adjustment
  • Nebula C8 Light Engine
  • Built-In Battery

Description

Nanlux introduces the most compact member of its Evoke lineup: the Nanlux Evoke 5C RGB LED Spotlight. This 6W fixture sets itself apart with full-colour output, allowing you to access a remarkable spectrum of hues, a wide-ranging CCT from 1000K to 20,000K, and extensive green/magenta tint-shifting capabilities for precise color adjustment. Advanced control options are built in, while a weatherproof IP67 rating ensures durable performance in challenging environments. Another highlight is the integrated battery, making it truly portable, along with a thoughtfully designed magnetic accessory system for versatility on set.

Colour Technology and Portability

Equipped with Nanlux’s Nebula C8 technology, this ultracompact fixture is capable of producing an impressive range of colors—red, deep red, amber, lime, green, cyan, blue, and indigo. Despite its advanced capabilities, the Evoke 5C maintains a tiny 2.2 x 1.7 x 1.7 inch profile and weighs just 5.6 ounces. All these features add up to a highly capable and easily modifiable light that’s ready to go wherever your creative needs take you.

Specifications

Light Fixture
Item Type 1x LED Spot Light
Included Light Modifier 1x Diffuser
Included Storage Case Yes
Photometrics 3200K:
41 fc / 448 Lux at 3.3' / 1 m (Unmodified)
509 fc / 5480 Lux at 1' / 0.3 m (Unmodified)
170 fc / 1835 Lux at 1.6' / 0.5 m (Unmodified)
5600K:
46 fc / 496 Lux at 3.3' / 1 m (Unmodified)
554 fc / 5970 Lux at 1' / 0.3 m (Unmodified)
188 fc / 2026 Lux at 1.6' / 0.5 m (Unmodified)
3200K:
1 fc / 17 Lux at 3.3' / 1 m (with Diffuser)
20 fc / 220 Lux at 1' / 0.3 m (with Diffuser)
6 fc / 67 Lux at 1.6' / 0.5 m (with Diffuser)
5600K:
1 fc / 19 Lux at 3.3' / 1 m (with Diffuser)

22 fc / 242 Lux at 1' / 0.3 m (with Diffuser)
6 fc / 74 Lux at 1.6' / 0.5 m (with Diffuser)

*Standardised Measurement Calculated Internally Based on Closest Distance
Colour Temperature 1000 to 20,000K +/- 200K
Colour Modes RGB, Daylight, Tungsten
Colour Accuracy Standard CRI 98
TLCI 98
SSI 78 at 5600K
SSI 86 at 3200K
TM-30 Rf 96
TM-30 Rg 100
Dimming App-Controlled / Built-In Dimmer / DMX / RDM
 • 0 to 100%
Beam Angle 25°
Built-In Flash No
Preprogrammed Effects Yes
Umbrella Mount No
Front Accessory Mount Proprietary
Connectivity
Wireless Remote Control Type Bluetooth
CRMX *Adapter Required (Not Included)
Mobile App Compatible Yes: Android & iOS
App Name: Nanlink
Functionality: Remote Control
Power & I/O
Power Source Battery (Built-In)
Inputs/Outputs 1x USB-C Female Power/DMX Input
*Adapter Required (Not Included)
(5 VDC at 2 A)
Battery 1x Rechargeable, 3.7 VDC, 1300 mAh (Built-In)
 • Up to 50-Minute Runtime at Maximum Brightness
 • Up to 156-Minute Runtime at Minimum Brightness
Battery Charging 1x Charging Cable (Included)
Input Power 5 VDC at 2 A
Included Adapter / Cable 1x USB-C Male to USB-C Male Cable (14.8' / 4.5 m)
Power Pass-Thru No
Power Consumption 6 W
Mounting
Fixture Mounting 1x 1/4"-20 Female Thread
Magnetic
Included Adapter 1x Swivel Mount: 1/4"-20 Female Thread to Proprietary
General
Display Yes
Environmental Resistance Dust/Weather/Water-Resistant (IP67)
Operating Conditions -4 to 104°F / -20 to 40°C
Certifications BIS, COE, FCC-ID, PSE Circle, RoHS, UKCA, UKCA
Dimensions 2.2 x 1.7 x 1.7" / 5.6 x 4.3 x 4.3 cm (Fixture)
5.31 x 2.95 x 1.97" / 13.49 x 7.49 x 5 cm (Included Storage Case)
Weight 5.6 oz / 160 g (Fixture)

In The Box

  • Nanlux Evoke 5C RGB LED Spotlight
  • USB-C Cable (3.3')
  • Magnetic Diffuser
  • Magnetic Yoke
  • Magnetic Thermal Shield
  • Carry Bag

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Nanlux Evoke 5C RGB LED Spotlight
  • Manufacturer: NanLite
  • Model: Evoke 5C
  • SKU: EV5C
  • RM Product #: 125441
  • Colour Temperature: 1000 to 20,000K
  • Warranty: 1 year manufacturer warranty
