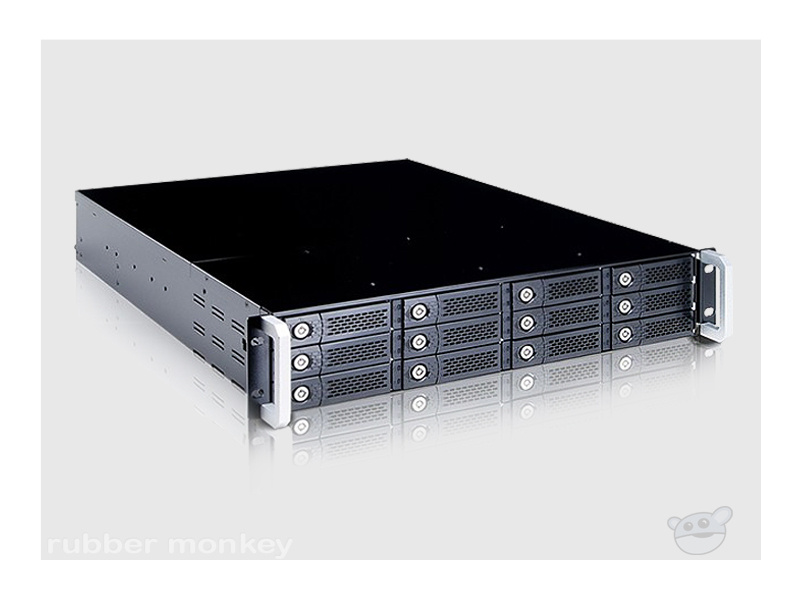

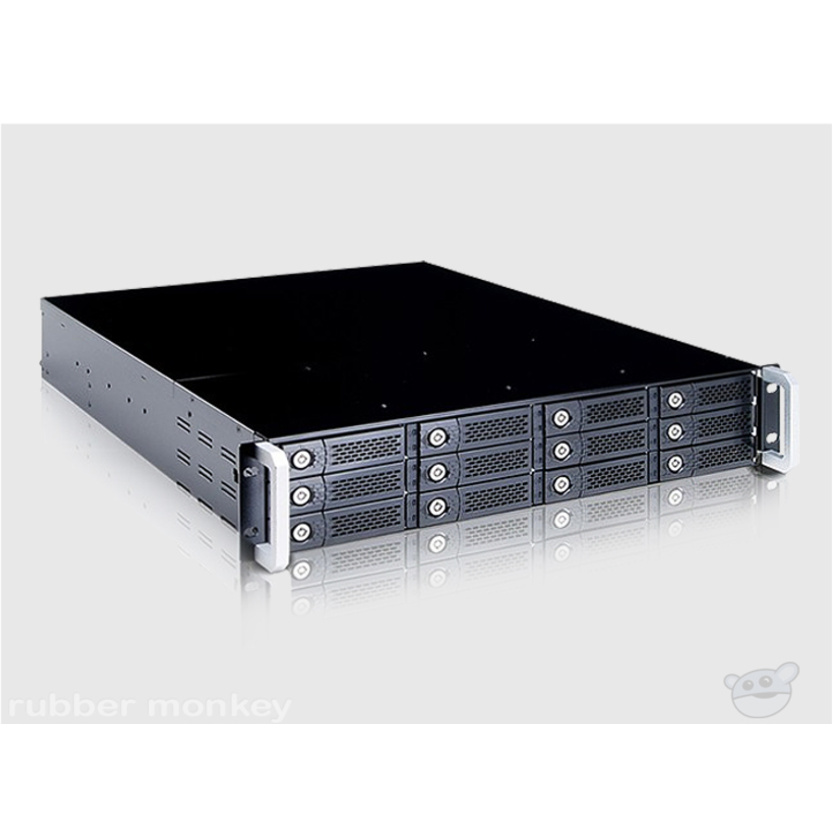

The Netstor NA321A 12TB External HDD
12-bay, 12x 1TB, 2U Rackmount Hard Drive (3x ext miniSAS/1x PSU/Hotswappable)
The NA321A is an external 2U 12-Bay Hot-Swap SAS/SATA HDD Rackmount. It provides users a flexible solution with up to 12 SAS or SATA HDD and a high performance external data storage solution for HD of 1080i Video Editing or any high resolution video platform. This 2U 12-Bay external SAS/SATA JBOD is designed with 3 high quality external miniSAS (SFF8088) interfaces for easy installation and fast data transmission.
Features:
- External 2U-12 bay Rackmount Chassis
- 3 x External miniSAS Host Interface
- Supports SAS/SATA (3Gbps)
- Up to 12 Removable SAS/SATA Drive Trays
- LED Indicators for Power and Activity on each HDD Tray
- Environmental Monitoring with FAN/TEMP LEDs and mutable buzzer alarm
Specifications:
Hard drive size: 12TB (12x 1TB)
Host Interface: 3 x External miniSAS
HDD Interface:
- SAS/SATA
- SAS/ SATA 3 Gbps
LED Display:
- White - Power on indicator
- Blue - Busy (HDD Accessing) indicator
- LED Display for Environmental Monitoring
- FAN normal – green; fail – red (too slow rpm or stop)
- TEMP normal – green; over 55°C – red
Material: Heavy-duty cold-rolled steel
Power Supply: 400W Single PSU
Input: 90 – 230 VAC 50- 60 Hz
Output: +5V and +12V DC
Cooling: Two set of 6 x 6 x 2.5 cm Hot-Swappable Fans
O.S. support: OS Independent
Dimensions: (W):48.2 cm (H):8.85 cm (D): 45.6 cm
Package contents:
NA321A 12TB HDD
HDD Tray x 12
Power Cord x 1
Manual CD-ROM x1
Hard Disk Drive mounting screws x 48
Key for HDD tray x 2
2 year warranty
Other Models Available:
Netstor enclosure (NA321A)
Netstor 18TB (12 x 1.5TB) (NA321A-18T)
Netstor 24TB (12 x 2TB) (NA321A-24T)
