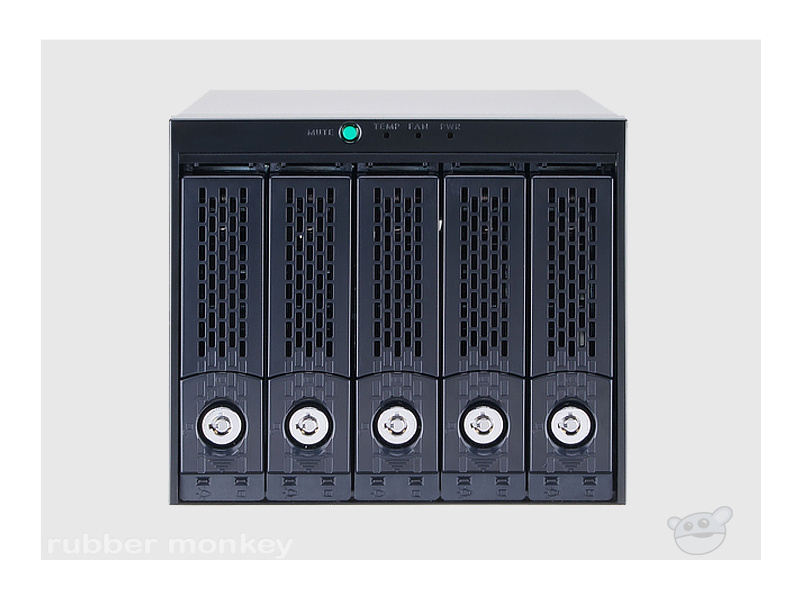

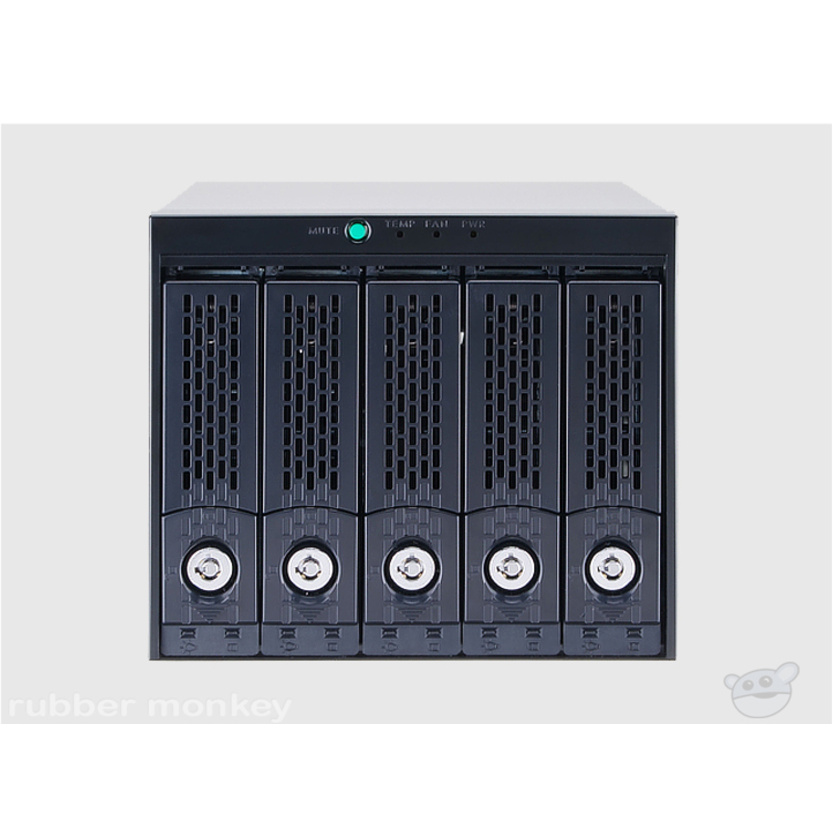

Netstor NR170S Internal HDD Enclosure

(Note: Enclosure only, Hard Drive/s not included)

The Netstor NS170S External HDD Enclosure
5-bay Hard Drive Enclosure (SAS/SATA/RAID 0, 1, 10, 3, 5, large, clone)

The NR170S is an internal high density multi-disk SATA Raid module that supports up to 5 multiple 3.5” SATA 3/6Gbps hard drives for only occupying 3 standard 5.25” space. With the built-in reliable hardware RAID processor, NR170S provides a variety of RAID level selections, high transmission rate, and simple setup that fits into an existing IT infrastructure.

Featuring a user friendly GUI (Graphical User Interface), the NR170S can be configured and monitored by an In-Band bus from a direct-attached host server/workstation or be set up and monitored remotely through the IP Address of a direct-attached Server/Workstation. Moreover, notification of RAID malfunction, overheating or fan failure can be notified via email.

Features:

• Disk Supported SATA 3/6Gbps
• Backplane designed for five removable SATA drive trays
• RAID levels supported 0, 1, 0+1, 3, 5, Large & Clone
• High quality aluminum material construction provides best ventilation
• Individual key lock of each HDD tray for physical security
• Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm

Specifications:
Host Interface: Any Standard SATA Interface
HDD Interface: Any 3.5" Standard SATA Interface
Data Transfer Rate: SATAII 3 Gbps
RAID Levels: 0, 1, 0+1, 3, 5, Large & Clone
LED Display for HDD:

• White - Power on indicator
• Blue - HDD Ready
• Flash Blue - HDD Access
• Flash Pink - HDD Rebuilding
• LED Display for Environmental Monitoring POWER on LED - white
• FAN normal – green; fail – Red (too slow rpm or stop)
• TEMP normal – green; Over 50°C – Red

Cooling: 80 x 80 x 25 mm Cooling Fan x 1
Alarm: Buzzer Beeping if fan fail (too slow or stop) or over temperature (over 50°C) occurs
Case Material: Aluminum Housing & Sturdy Metal Body Inside
Power Connector: 2
Physical Dimensions:

• Including Fan: 220(D) x146(W) x126(H) mm
• Excluding Fan: 193(D) x 146(W) x126(H) mm

O.S. support: Independent
GUI support: Windows (Available), Mac OS/ Linux (Q4, 2010)

System Note:

1. Operating systems that allow disk volume larger than 2 Terabytes (2048 Gigabytes) include:
   a. Windows Vista, Windows 7, and Windows Server 2008
   b. Mac OS 10.4/10.5 or higher
   c. Linux 2.6.23 or higher

2. If you want to use multiple RAID volumes, your system should meet either of the following requirements.
   a. The motherboard's SATA port should support Port Multiplier function.
   b. The system should have an internal SATA card with Port Multiplier function.

Package contents:
NR170S enclosure x 1
HDD Tray x 5
Manual & GUI CD x 1
Hard Disk Drive mounting screw x 20
Key for HDD tray x 2
SATA cable x 1
2 year warranty
