(Note: Enclosure only, Hard Drive/s not included)

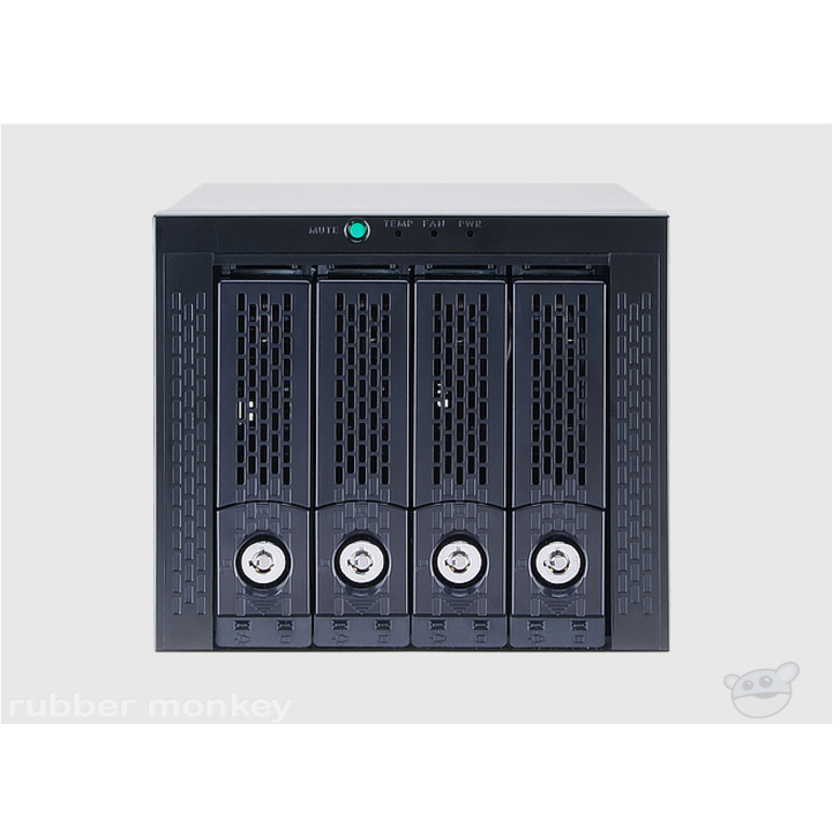

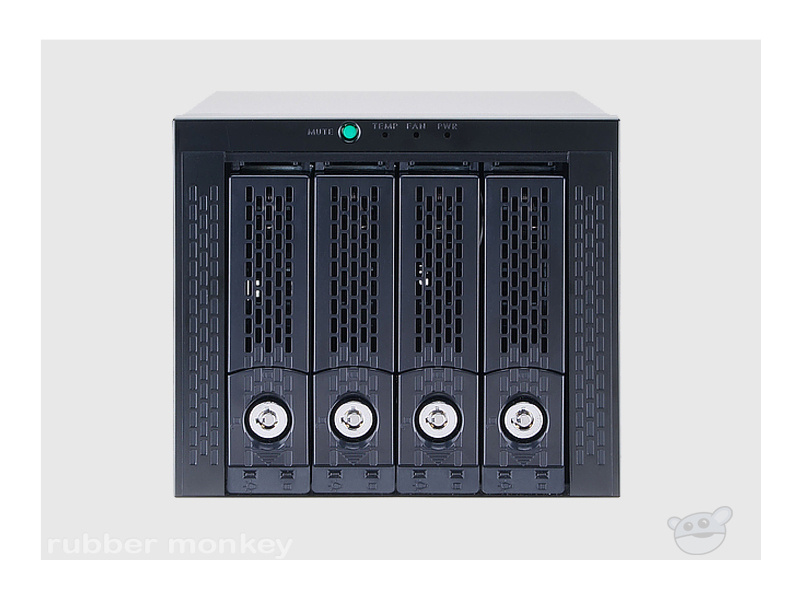

The Netstor NS160S External HDD Enclosure
4-bay Hard Drive Enclosure (SAS/SATA/hotswappable)
The NS160S is an Internal multi-drive aluminum enclosure with a SAS/SATA backplane design that supports 4 SAS/SATA Hard Disks with hotswappable trays. It includes a built-in fan for self-ventilation; hotswappable trays with individual key locks, power/access LEDs; environmental monitoring with LEDs for fan/temperature and mutable buzzer alarm.
Features:
- Supports SAS/SATA (3Gbps) Disks Compatible
- Mini SAS connector designs on backplane for only one cable connection to SAS/SATA Host card
- Backplane design for four removable SAS/SATA drive trays
- High quality aluminum material construction provides best ventilation
- Individual key lock of each HDD tray for physical security
- Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm
Specifications:
Host Interface: SAS/SATA (1x Int. mini SAS connector)
HDD Interface: SAS/SATA I/II
Data Transfer Rate: SAS / SATAII 3 Gbps
Hot-Swap: Both on Host and Device
LED Display:
- Green - Power on indicator
- Blue - Busy (HDD Accessing) indicator
- LED Display for Environmental Monitoring
- POWER on LED - White
- FAN normal – green; fail – Red (too slow rpm or stop)
- TEMP normal – green; Over 55°C – red
Cooling: One 8 x 8 x 2.5 cm Cooling Fan
Alarm Buzzer: Beeping if fan fail (too slow or stop) or over temperature (over 55°C) occurs
Material: Aluminum Housing & Plastic tray face
Power Connector: 2
Dimensions:
- Including Fan: 22(D) x14.6(W) x12.6(H) cm
- Excluding Fan: 19.3(D) x 14.6(W) x12.6(H) cm
O.S. support: OS Independent
Package contents:
NS160S Enclosure x 1
HDD Tray x 4
Manual CD x1
Hard Disk Drive mounting screw x 16
Key for HDD tray x 2
2 year warranty
