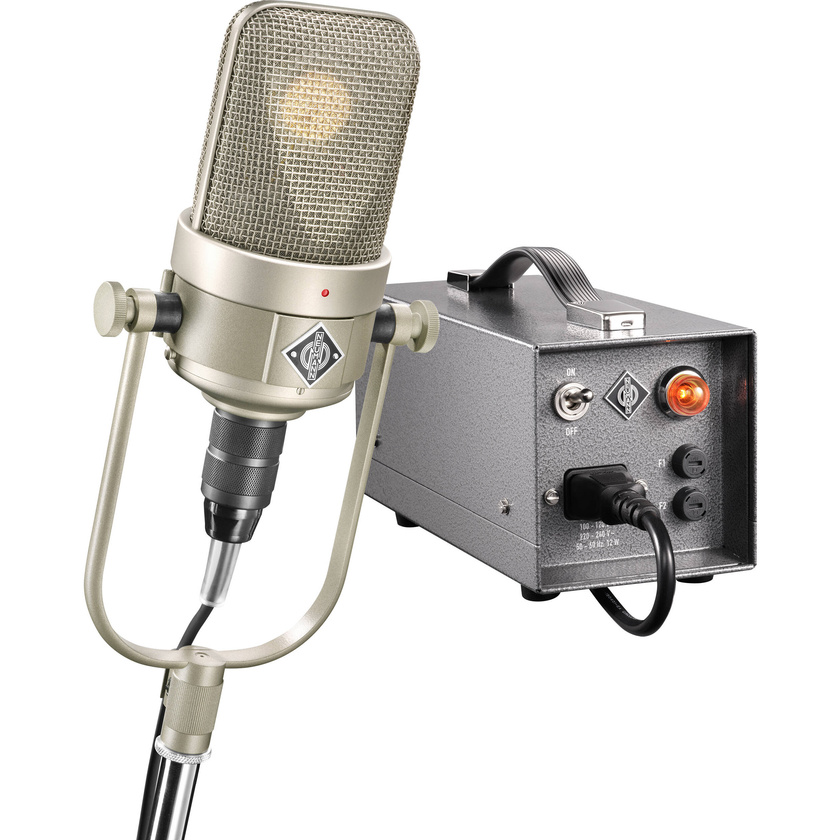

Neumann M 49 V Set Large-Diaphragm Tube Microphone
Special Order
Usually ships in 8 - 12 weeks
Our Price
$15,449.00
AUD
Special Order
Usually ships in 8 - 12 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 8 - 12 weeks.
Deliver to
New South Wales
for $203.00
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
8 - 12 weeks
Click & Collect
Features
- Reissue of Legendary M 49 Microphone
- K 49 Large-Diaphragm Capsule
- Continuously Variable Polar Pattern
- Omnidirectional, Cardioid, and Figure-8
- RF-Proof Connector
- Internal DIP Switches for Configuration
Description
The Neumann M 49 V Set Large-Diaphragm Tube Microphone is a reissue of the last revision c. Over the years, the M 49 was continuously improved: the originally installed Hiller tube MSC2 was replaced by the Telefunken tube AC701 and then the AC701k. This and other circuit changes improved the signal-to-noise ratio, dynamic range, and immunity to interference. In parallel, a broadcast version, the M 249, was issued with an RF-proof connector.
The M 49 V uses the same circuit as the M 49 c, but with an even lower noise subminiature tube. Since high-frequency interference has increased dramatically due to mobile phone networks and WiFi, the RF-proof connector has been adopted from the M 249.
Key Features
- Reissue of the legendary M 49 with detail improvements
- Superb vocal microphone for male and female voices
- Versatile microphone for all types of instruments
- Classic tube circuit with output transformer
- Continuously variable polar pattern, remote controlled
- Made to original specifications using archived documentation
- New pattern control unit automatically adapts to mains voltage
- Handmade and hand soldered in Germany
- Handmade vintage case manufactured in Germany
Specifications
Microphone | |
Primary Applications | Studio Recording, Broadcast |
Form Factor | Large Diaphragm Mic / Stand/Boom Mount |
Intended Sound Sources | Vocals, Acoustic Guitar, Double Bass, Piano, Instrument, Horns, Brass, Trumpet, Trombone, Saxophone, Orchestra |
Sound Field | Mono |
Operating Principle | Pressure Gradient |
Capsule | Condenser |
Polar Pattern | Cardioid, Figure-8, Omnidirectional |
Pattern Selection | Continuously Variable (Adjustable on Power Supply) |
Orientation | Side Address |
Circuitry | Tube |
High-Pass Filter | None |
Gain Adjustment | None |
Performance | |
Frequency Range | 40 Hz to 16 kHz |
Maximum SPL | Cardioid: 125 dB SPL |
Impedance | 200 Ohms |
Load Impedance | 1000 Ohms |
Sensitivity | Omnidirectional: 6.5 mV/Pa Cardioid: 8 mV/Pa Figure-8: 10 mV/Pa |
Output Level | -8 dBu (Max) |
Dynamic Range | Cardioid: 105 dB A-Weighted |
Signal-to-Noise Ratio | Omnidirectional: 73 dB A-Weighted Omnidirectional: 62 dB CCIR Cardioid: 74 dB A-Weighted Cardioid: 64 dB CCIR Figure-8: 75 dB A-Weighted Figure-8: 64 dB CCIR |
Equivalent Noise Level | Omnidirectional: 21 dB A-Weighted Omnidirectional: 32 dB CCIR Cardioid: 20 dB A-Weighted Cardioid: 30 dB CCIR Figure-8: 19 dB A-Weighted Figure-8: 30 dB CCIR |
THD | < 0.5% |
Connectivity | |
Output Connectors (Analogue) | 1 x Proprietary 7-Pin Male (Locking, on Mic) 1 x XLR 3-Pin Male (Locking, on Power Supply) |
Headphone Connector | None |
Power | |
Operating Voltage | Not Specified by Manufacturer |
AC Input Power (PSU) | Universal: 100 to 240 VAC, 50 / 60 Hz |
Physical | |
Colour | Silver |
Mounting | Shockmount (Included) |
Mounting Thread Size | 5/8"-27 Female |
Included Case | Hard Case |
Included Filters | None |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 75% |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Dimensions | ø: 3.1 x L: 6.4" / ø: 80 x L: 163 mm |
Weight | 1.8 lb / 800 g |
In The Box
- Neumann M 49 V Set Large-Diaphragm Tube Microphone
- Neumann MN V Pattern Control Unit
- Neumann KC 5 7-Pin Microphone Cable for M 49 V Mic (Black, 32.8' )
- Neumann MZ 49 A Elastic Suspension Shock-mount for M 49 V Microphone (Nickel)
- Handmade Vintage Case
