Neumann MCM 114 SET WOODWINDS Cardioid Miniature Clip-On Microphone System
Features
- Wired or Wireless Miniature Close Miking
- Oboe/Clarinet/Recorder/Bassoon/Flute
- KK 14 Capsule Head
- MCM 100 Output Stage with XLR
- SH 150 Flexible Gooseneck
- Universal Strap Clip for Woodwinds
Description
The Neumann MCM 114 SET WOODWINDS Cardioid Miniature Clip-On Microphone System is specifically designed for discerning musicians, engineers, concert venues, equipment rental houses, and event-production companies. This professional-grade instrument microphone is perfect for close miking a variety of woodwind instruments including oboe, clarinet, recorder, bassoon, flute, and harp. Featuring Neumann's advanced electret technology, it can handle an impressive maximum SPL of 153 dB, capturing the intricate details of both loud and soft instruments without introducing any distortion or self-noise. Whether you need it for wired recording in the studio or wireless performances on stage, this mic offers versatile connectivity options with traditional XLR mic preamps and wireless transmitters.
The MCM 114 SET WOODWINDS system comprises of a KK 14 cardioid capsule head, a flexible 6" gooseneck, and an MC 5 clip for securely mounting the gooseneck onto the instrument. It includes an AC 31 cable with 3.5mm locking connectors, allowing you to connect the capsule to the included MCM 100 48V phantom-powered XLR output-stage module, or to the locking mini-jack input commonly found on Sennheiser wireless transmitters. Designed with modularity in mind, the system is built to last for years with its sturdy construction. Each unit is manually assembled in Germany, ensuring top-notch tonal consistency and the exceptional aesthetics and handling that Neumann is known for.
Specifications
| Key Specs | |
| Form Factor | Gooseneck |
| Element Type | 1x Electret Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 153 dB SPL (Phantom Power) |
| Analogue Output | 1x XLR 3-Pin Male (on Included Cable) 1x 1/8" / 3.5 mm TRS Male (Locking, on Included Cable) |
| Power Sources | Phantom Power |
| Microphone | |
| Primary Applications | Live Sound, Studio Recording, Broadcast, Location Sound |
| Form Factor | Gooseneck |
| Intended Sound Sources | Woodwinds, Clarinet, Flute |
| Sound Field | Mono |
| Element Type | 1x Electret Condenser |
| Polar Pattern | Cardioid |
| Orientation | End Address |
| High-Pass Filter | No |
| Performance | |
| Frequency Range | 20 Hz to 20 kHz |
| Maximum SPL | 153 dB SPL (Phantom Power) |
| Impedance | 50 Ohms |
| Load Impedance | 1000 Ohms |
| Sensitivity | 3.6 mV/Pa at 1 kHz into 1 Kilohms |
| Dynamic Range | 130 dB A-Weighted |
| Signal-to-Noise Ratio | 63 dB CCIR (Phantom Power) 71 dB A-Weighted (Phantom Power) |
| Equivalent Noise Level | 31 dB CCIR (Phantom Power) 23 dB A-Weighted (Phantom Power) |
| THD | < 0.5% (Phantom Power) |
| Connectivity | |
| Analogue Output | 1x XLR 3-Pin Male (on Included Cable) 1x 1/8" / 3.5 mm TRS Male (Locking, on Included Cable) |
| Cable Length | 6' / 1.8 m |
| Power | |
| Power Sources | Phantom Power |
| Operating Voltage | V () |
| Physical | |
| Colour | Black |
| Dimensions | ø: 0.5 x L: 0.4" / ø: 12 x L: 11 mm (Capsule) L: 5.9" / L: 150 mm (Gooseneck) |
| Weight | 0.1 oz / 2.3 g (Microphone) |

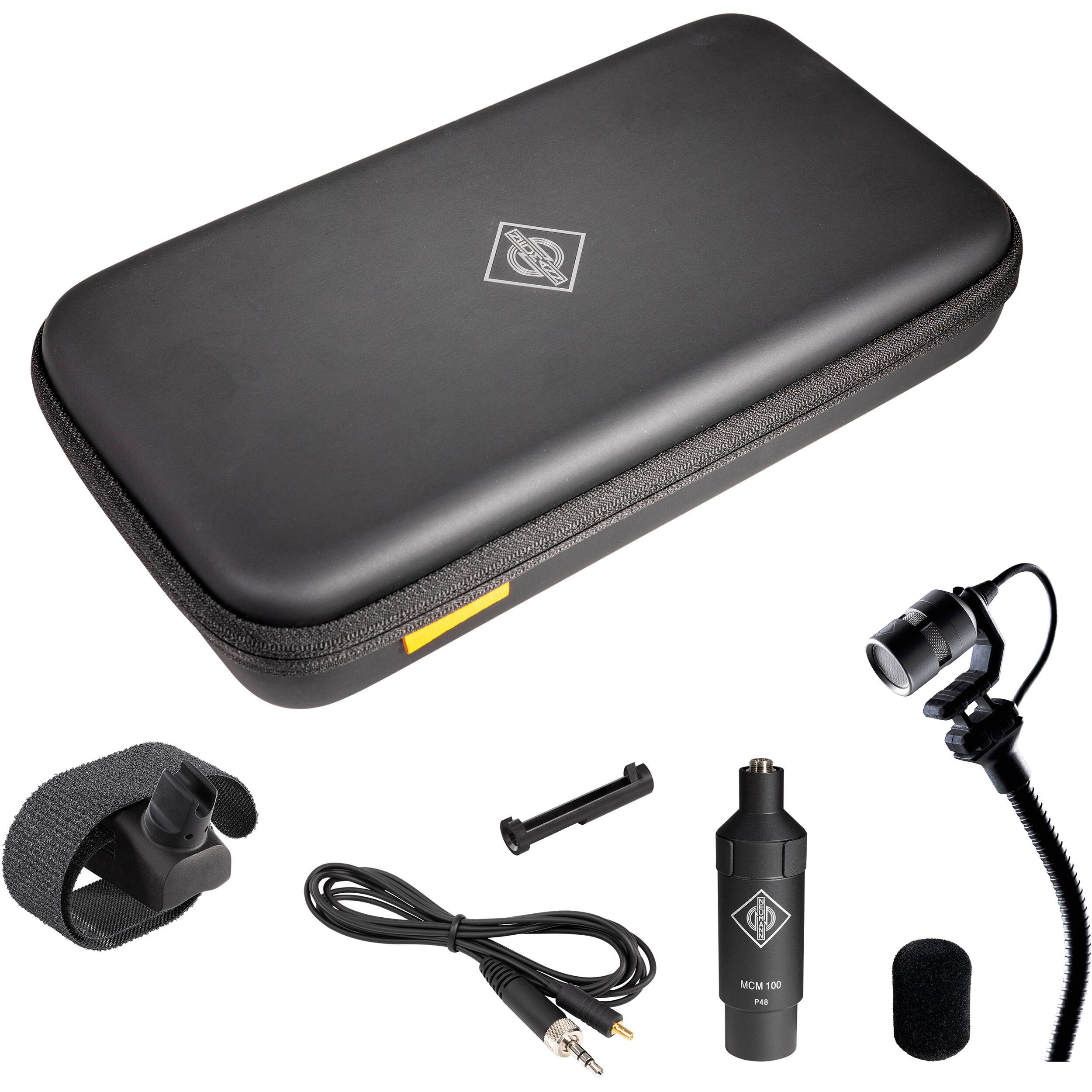

In The Box
- Neumann MCM 114 SET WOODWINDS Cardioid Miniature Clip-On Microphone System
- Neumann KK 14 Cardioid Capsule for MCM Microphone System
- Neumann MCM 100 XLR Output Stage Module for MCM Microphone System
- Neumann SH 150 Flexible Gooseneck for MCM Microphone System (5.9")
- Neumann AC 31 3.5mm TRS Cable for MCM System with Wireless Transmitter or Output Stage Module (5.9')
- KC1 Cable Braces for Gooseneck
- Neumann MC 5 MCM Universal Strap Clip for Woodwinds
- Neumann WS 110 Foam Windscreen for MCM Microphone System
- Soft Case
