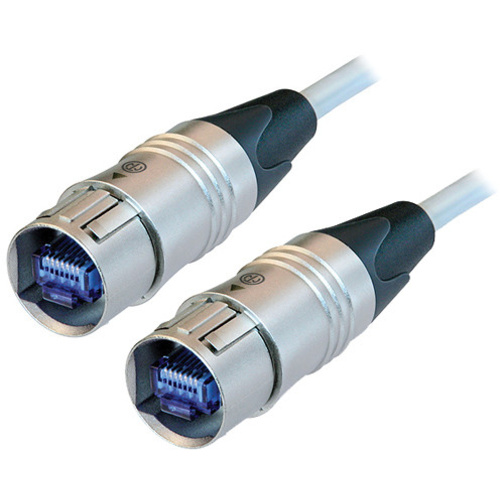

The Neutrik NKE6S-30 etherCON CAT6 Patch Cable (98.4’ / 30 m) uses a shielded S/FTP cable with a cable plug carrier offering a robust metal shell and push-pull locking system.
Key Features
- CAT6 compliant: Data rate up to 10 GB
- CAT6 performance: Fast data transmission and high bandwidth applications
- CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
- IP65: Dust and waterproof in mated condition
- Shielded system: High noise immunity and EMI protection
- Push Pull mating: Secure and proven locking system
- Ready made patch cables with rugged cable carrier and unique chuck-type strain relief
- Both cable ends with cable plug carrier
Specifications
| Gender |
Male |
| Contact Resistance |
<10 mΩ (inner) |
| Dielectric Strength |
1 kVDC |
| Frequency Range |
1 to 250 MHz |
| Insulation Resistance |
≥0.5 GΩ |
| Rated Current Per Contact |
1.5 A |
| Rated Voltage |
50 V |
| Insertion Force |
≤40 N |
| Withdrawal Force |
≤20 N |
| Lifetime |
>1000 mating cycles |
| Locking Device |
Push-pull |
| Wire Size |
8 x AWG 27/7 mm² |
| Boot |
Polyurethane |
| Contact Plating |
0.7 µm Au over 1.2 µm Ni plating |
| Contacts |
Bronze (CuSn8) |
| Insert |
Polyamide (PA 6.6 30% GR) |
| Shell |
Zinc diecast (ZnAl4Cu1) |
| Shell Plating |
Nickel |
| Strain Relief |
Polyacetal (POM) |
| Flammability |
UL 94 HB |
| Standard Compliance |
CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173 |
| Protection Class |
IP 65 |
| Temperature Range |
14 to 140°F (-10°C to 60°C) |
| Length |
98.4' (30 m) |
| Dimensions (Ø x L) |
0.917 x 2.795" (23.3 x 71 mm) |
