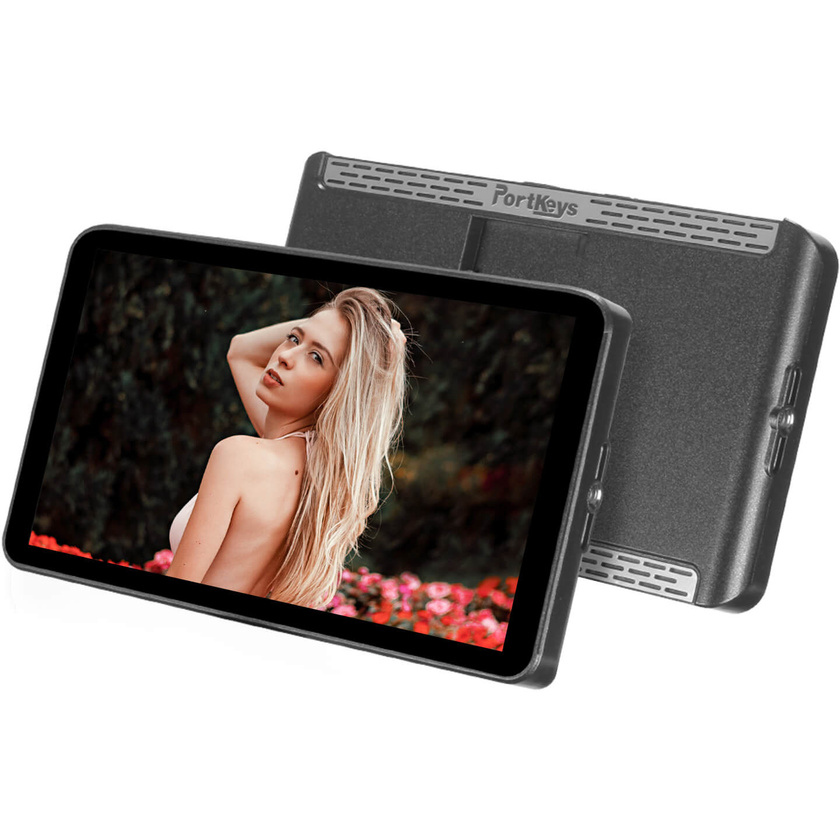

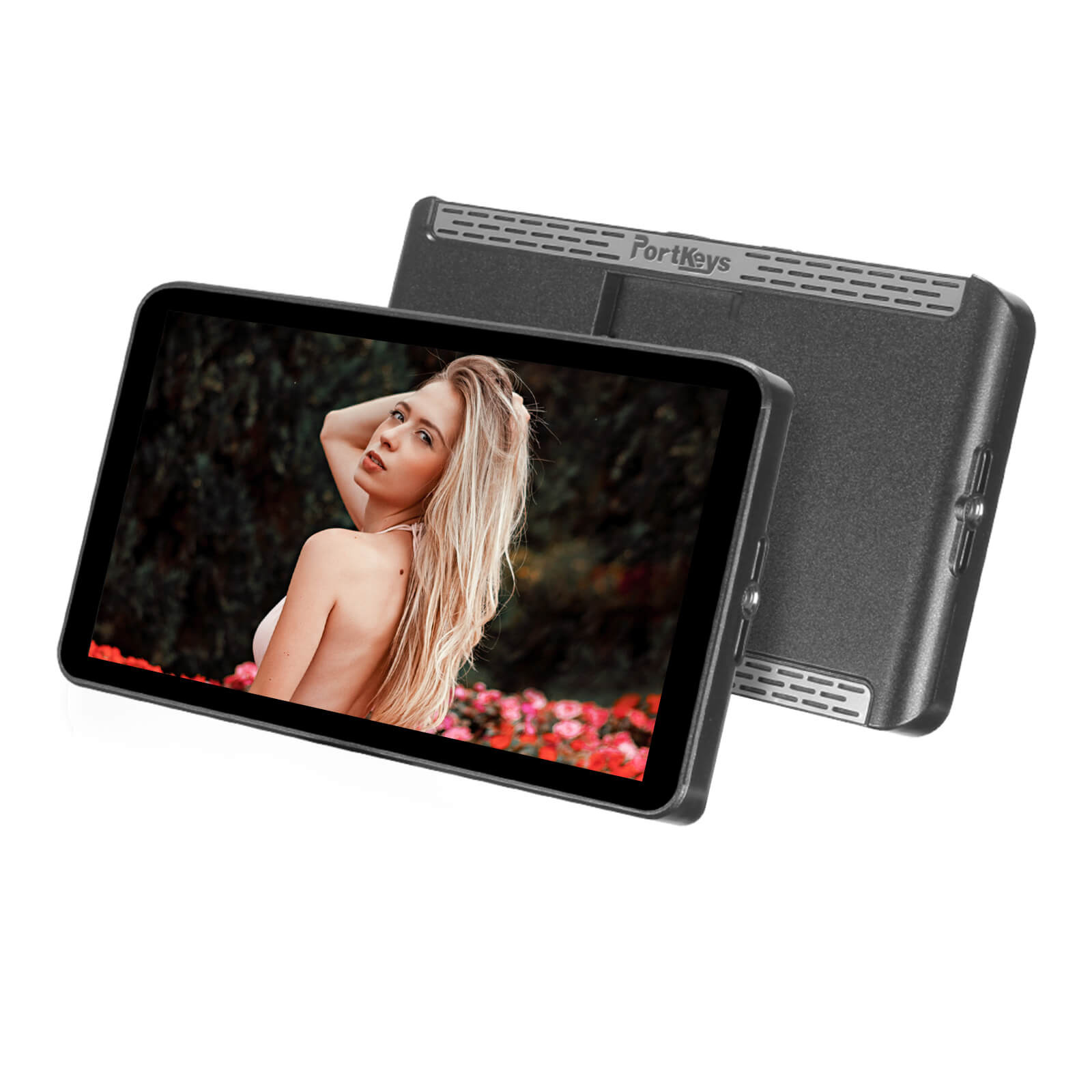

PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)

Product #103622 | SKU LH7PB | Portkeys
In stock Ships tomorrow
Our Price $639 AUD
In stock Ships tomorrow
- +

Shipping & Availability
Ships tomorrow. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney In stock. Pickup tomorrow
Click & Collect

Features

  • 7" HDMI 1920 x 1080 Touchscreen
  • Sony/BMD Wireless Camera Control
  • Up to DCI 4K24 Video Input Support
  • 1000 cd/m² Brightness, HDR Preview
  • HDMI Input & Output, Headphone Jack
  • Anamorphic Correction via HDMI Output

Description

Add pro monitoring tools and control for select Sony cameras to your camera rig with the LH7P 7" High-Bright Touchscreen Monitor with Wireless Control from PORTKEYS . This bright, 7" on-camera touchscreen display offers 1920 x 1080 resolution, 1000 cd/m² brightness, and the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI. The monitor comes in a black colour.

Compatible with Sony and Blackmagic Design cameras with wireless control capability, this monitor features a built-in wireless module that enables select camera functions, and a separately available control cable also allows you to connect your device to the monitor. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, colour temperature, waveform, histogram, and more.

Specifications

Key Specs
Display Size 7.0" / 17.8 cm
Native Resolution 1920 x 1080
Touchscreen Yes
HDR Support No
Video I/O 1x HDMI 1.4 Input
1x HDMI 1.4 Output
Media/Memory Card Slot No
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50
Battery Type 1x L-Series
Power Consumption 9 W
Mounting 2x 1/4"-20 Female
Display
Panel Type LCD
Display Size 7.0" / 17.8 cm
Native Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 170° (85/85)
Vertical: 170° (85/85)
Touchscreen Yes
Maximum Brightness 1000 nits / cd/m2
Contrast Ratio 1000:1
Colour Support 1.07 Billion Colours (8-Bit+FRC)
HDR Support No
Pixels Per Inch (ppi) 314 ppi
LUT Support Yes
Image Controls Anamorphic De-Squeeze, Cheque Field, Colour Temperature Selection, Focus Peaking, Histogram, Image Flip, Waveform, Zebra
Inputs / Outputs
Video I/O 1x HDMI 1.4 Input
1x HDMI 1.4 Output
Embedded Audio HDMI
Audio I/O 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker No
Power I/O 1x Barrel (24 VDC) Input
1x USB-A (2 A / 5 VDC) Input
Other I/O 1x USB-A (Firmware/LUT Upload) [Shared with USB-A Power Input]
Media/Memory Card Slot No
Wi-Fi Yes
Bluetooth Yes
Mobile App Compatible No
Format Support
Video Format HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50
Power
Input Power 7 to 24 VDC
Battery Type 1x L-Series
Power Consumption 9 W
Mounting
Mounting 2x 1/4"-20 Female
General
Environmental Resistance No
Material of Construction Plastic
Dimensions 6.9 x 4.1 x 0.7" / 176.2 x 103.8 x 18.4 mm
Weight 8.64 oz / 245.00 g

In The Box

  • PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
  • Micro-USB Flash Drive
  • HDMI Cable
  • Cleaning Cloth
  • Storage Box
  • Limited 1-Year Manufacturer Warranty

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
  • Manufacturer: Portkeys
  • Model: LH7P
  • SKU: LH7PB
  • RM Product #: 103622
  • Screen Size: 7"
  • Screen Resolution: 1920 x 1080
