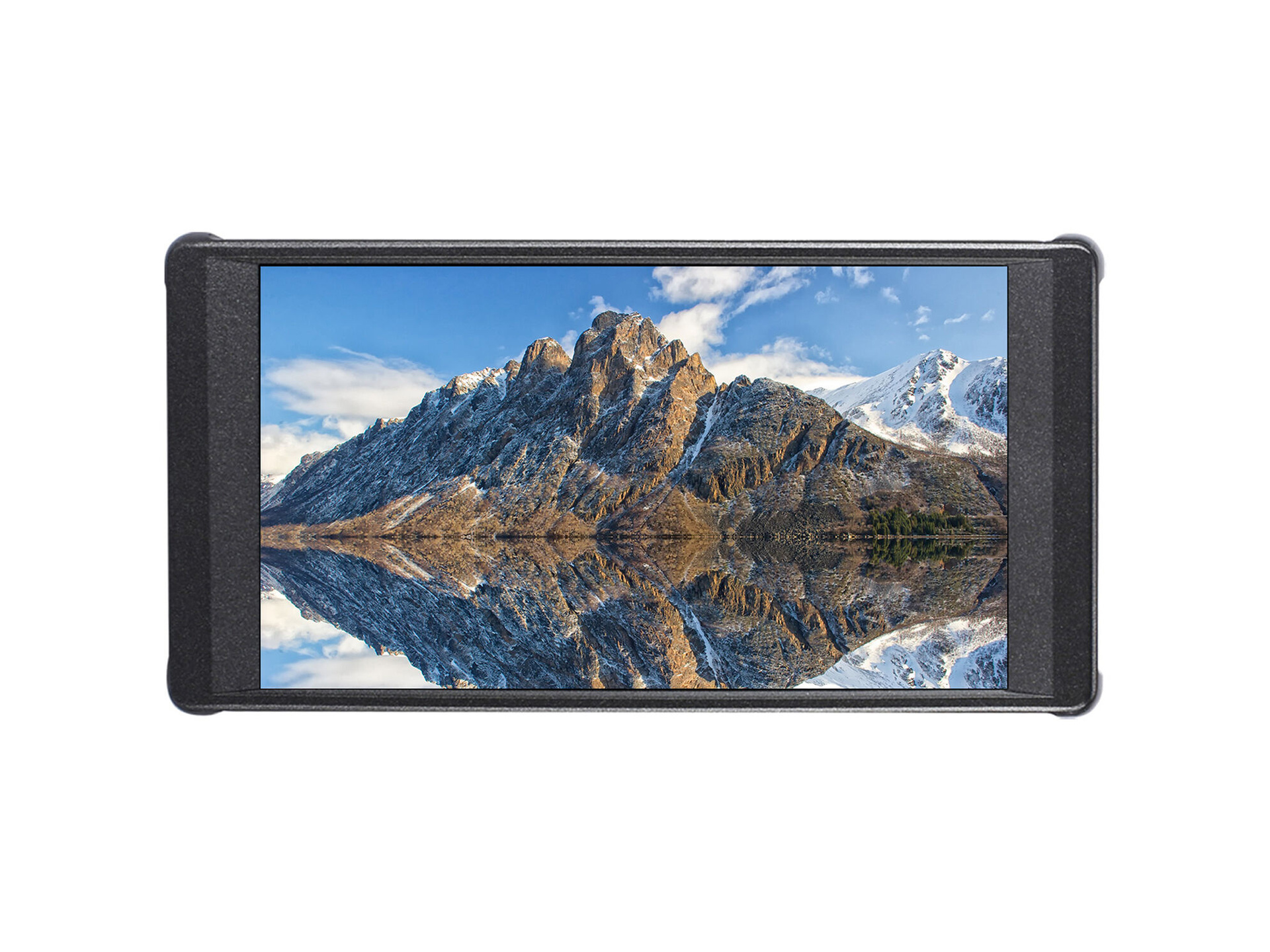

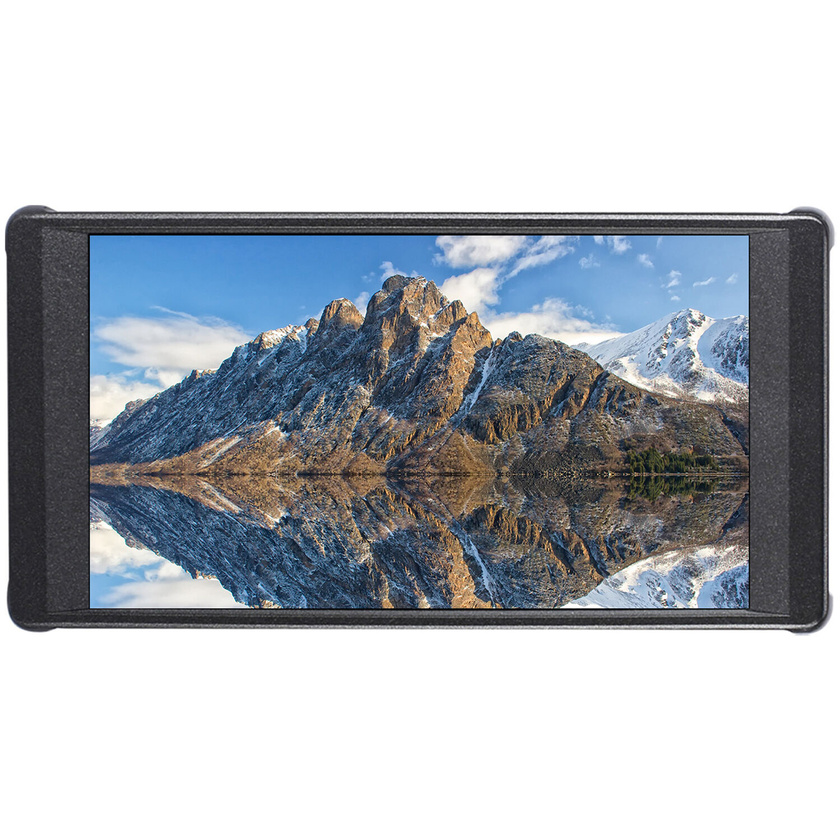

Add nuanced, LUT-enhanced imagery to your video monitoring using the PT6 5.2" 4K HDMI Touchscreen Monitor from PORTKEYS . This compact, 5.2" touchscreen monitor supports the DCI-P3 wide colour gamut and offers a host of imaging tools like focus peaking, image cropping, and anamorphic output. It features up to 4K30 HDMI input and 1080p60 output, UI output, and a stretch function for vertical monitoring.
PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
In stock
Ships tomorrow
Sale Price
$305
AUD
was
$339.00
In stock
Ships tomorrow
ON SALE
in
THE BURN PILE
while stock lasts
HURRY! ONLY 1
AVAILABLE AT THIS PRICE
Shipping & Availability
Ships tomorrow.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
In stock. Pickup tomorrow
Click & Collect
Features
- 5.2" 1920 x 1080 Touchscreen Display
- 4K30 HDMI Input/1080p60 HDMI Output
- 3D LUT Output, UI Output, DCI-P3 Colour
- 600 cd/m² Bright/1500:1 Contrast Ratio
- Vertical Output with Stretch Feature
- Anamorphic Output, Brightness, Tint
Description
Specifications
| Key Specs | |
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | Yes |
| Video I/O | 1x HDMI (Unspecified Signal) Input 1x HDMI (Unspecified Signal) Output |
| Media/Memory Card Slot | No |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2) DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 |
| Battery Type | 1x LP-E6, L-Series |
| Power Consumption | 6 W (Maximum) |
| Mounting | 1x 1/4"-20 Female |
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 5.2" / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 600 nits / cd/m2 |
| Contrast Ratio | 1500:1 |
| Colour Support | 1.07 Billion Colours (10-Bit) |
| HDR Support | Yes |
| Pixels Per Inch (ppi) | 423 ppi |
| Colour Gamut | 100% DCI-P3 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
| Inputs / Outputs | |
| Video I/O | 1x HDMI (Unspecified Signal) Input 1x HDMI (Unspecified Signal) Output |
| Embedded Audio | HDMI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel (24 VDC) Input |
| Other I/O | 1x USB-A 2.0 Input |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2) DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 |
| Gamma Curve | HDR-HLG |
| Power | |
| Input Power | 7 to 24 VDC |
| Battery Type | 1x LP-E6, L-Series |
| Power Consumption | 6 W (Maximum) |
| Mounting | 1x 1/4"-20 Female |
| General | |
| Material of Construction | Plastic, Polycarbonate |
| Dimensions | 5.9 x 3.1 x 0.3" / 150.7 x 77.8 x 8.5 mm |
| Weight | 6.00 oz / 170.00 g |
In The Box
- PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
- Sunshade
- HDMI Cable
- Micro-HDMI to HDMI Cable
- Rubber Cover
- MH-2 Mount
- Storage Box
- Limited 1-Year Manufacturer Warranty
