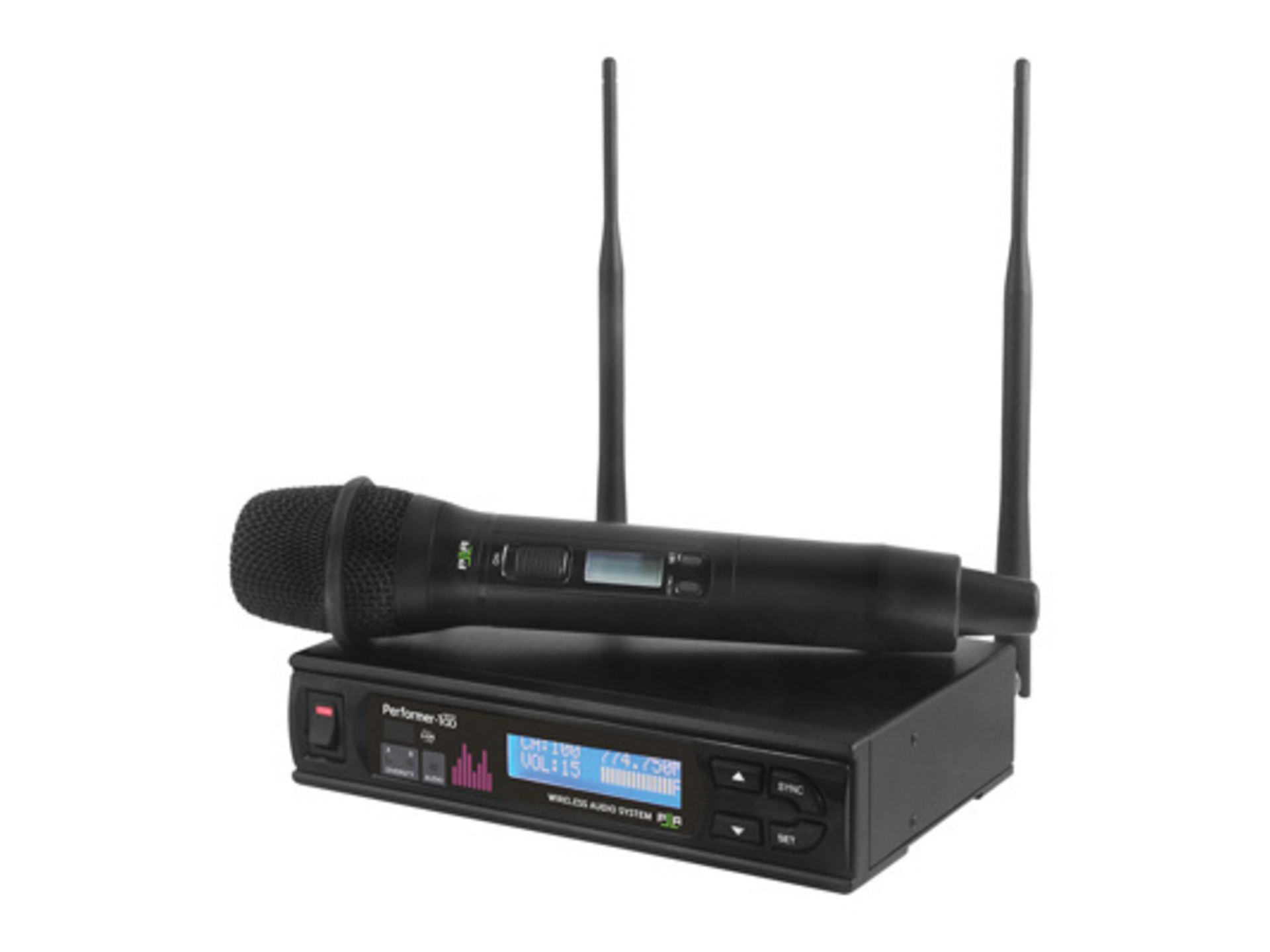

Parallel Audio PERFORMER-HH Wireless Handheld System

Product #116955 | SKU PERFORMER-HH | Parallel Audio
Usually ships in 1 - 2 weeks what does this mean?
Our Price $689 AUD
Usually ships in 1 - 2 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 1 - 2 weeks. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • 100 factory preset UHF frequencies
  • Advanced microprocessor control
  • Patented IrDA technology
  • SCAN function
  • Diversity design
  • LCD display on receiver

Description

The Parallel Audio PERFORMER-HH Wireless Handheld System offers users a wide range of features and benefits. With 100 factory preset UHF frequencies to choose from, users have plenty of options when it comes to selecting the right frequency for their needs. The system also utilizes advanced microprocessor control and excellent RF design to ensure improved signal performance and interference-free operation. Furthermore, the system incorporates patented IrDA technology, enabling seamless communication between the transmitter and receiver. The SCAN function is another useful feature, as it automatically locates the next clean frequency, making setup quick and easy. Users can also take advantage of the system's ability to operate more than 10-12 non-interfering channels simultaneously within a selected 25MHz bandwidth. The diversity design ensures high sensitivity, selectivity, and rejection of unwanted noise and interference. The LCD display on the receiver allows users to easily view and select the desired frequency. Additionally, the system offers flexible mounting options, as the antennas can be mounted either in the rear or front. Other features include anti-interference Pilotone control and RF noise squelch circuitries, as well as RF and AF LED indicators. The system also provides both balanced (XLR) and unbalanced (O6.3mm) audio outputs for added convenience. The half-rack metal chassis makes the system durable and sturdy, and it can be easily mounted using the optional mount kits. To complete the system, users can choose from matching transmitters such as the HH6100 and BP6100. With true diversity reception, the system delivers optimal performance and reliability. Additionally, the receiver provides power for Parallel Audio antenna systems, enhancing reception range and overall signal stability.

Specifications

Channel Single
Chassis EIA standard 19" 1/2U
Frequency range UHF 520-675MHz (3 available bands)
Bandwidth Up to 25MHz
Receiving mode True Diversity
Peak deviation ñ40kHz
Channel sync 2-way (receiver - transmitter)
Sensitivity S/N > 80dBm at 10dB?¬V
S/N ratio > 110dB (A)
T.H.D. < 0.5% @ 1kHz
Frequency response 50Hz - 18kHz
Receiving antenna Rear Panel. Detachable
Preset channels 100
Oscillation mode PLL synthesised, frequency stability ??ñ 0.005% (-10 - +60C)
Squelch Pilotone & Noise-cancelling dual-squelch circuit
Audio output adjustment Gain control circuit for adjustment of output volume
Output connector Balanced XLR and unbalanced 6.3??
Power supply 12V DC, 1.0A
Power consumption 12W
Dimensions (mm) 200 (W) x 44 (H) x 150 (D)
Weight (kg) 0.63kg

In The Box

  • Performer-100 Wireless Receiver
  • HH6100 Handheld Transmitter

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Parallel Audio PERFORMER-HH Wireless Handheld System
  • Manufacturer: Parallel Audio
  • Model: PERFORMER-HH
  • SKU: PERFORMER-HH
  • RM Product #: 116955
  • System Type: Handheld System
