The Parallel Audio STAGE-HH Wireless Handheld System offers a range of features for high quality audio performance. The system includes a metal chassis that can be easily mounted in a rack, with a clear LCD display showing important information such as channel, frequency, RF level, AF level, and antenna selection. With 100 factory preset user-selectable UHF channels, users have flexibility in choosing the best frequency for their needs. The battery level indicator on the receiver panel helps monitor the transmitter's battery status to ensure uninterrupted operation. The use of a high-performance THAT compander IC ensures a wide dynamic range and excellent sound quality. With true diversity reception, the system maximizes performance and reliability, reducing the chances of signal dropouts. Pilotone and noise-cancelling dual-squelch circuits further enhance the audio quality by eliminating noise and interference. The system also features an adjustable SQ function, allowing for increased receiver range with higher sensitivity and reduced interference with lower sensitivity. The auto scan function enables a quick search for an interference-free working channel among the 100 presets. The system's world-first patented IrDA technology facilitates rapid and precise 2-way frequency synchronization between the receiver and transmitter. Moreover, the receiver provides power for Parallel Audio antenna systems, enhancing reception range and signal stability. Finally, users can choose between balanced XLR or unbalanced 6.3mm audio output jacks for their convenience.

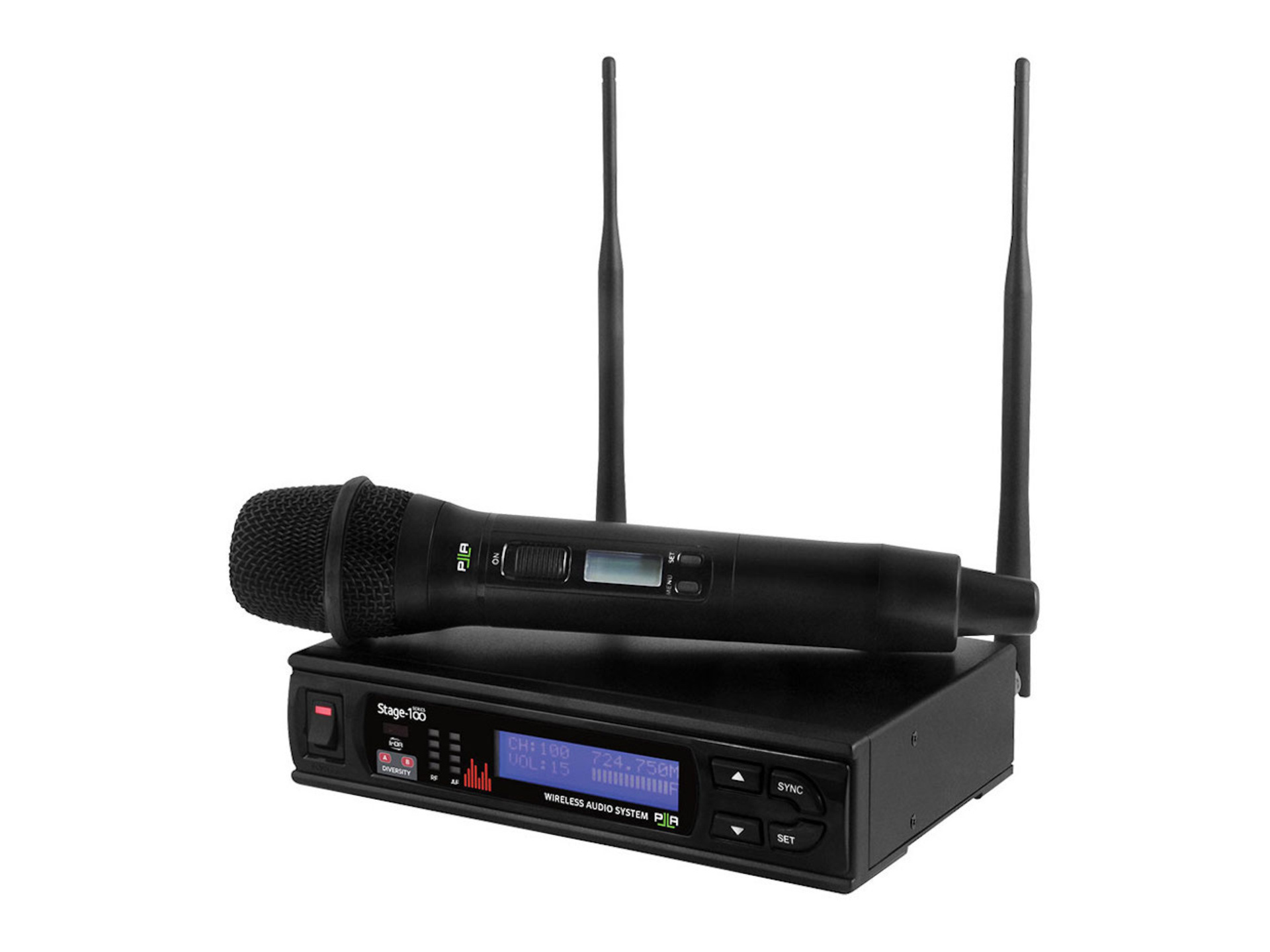

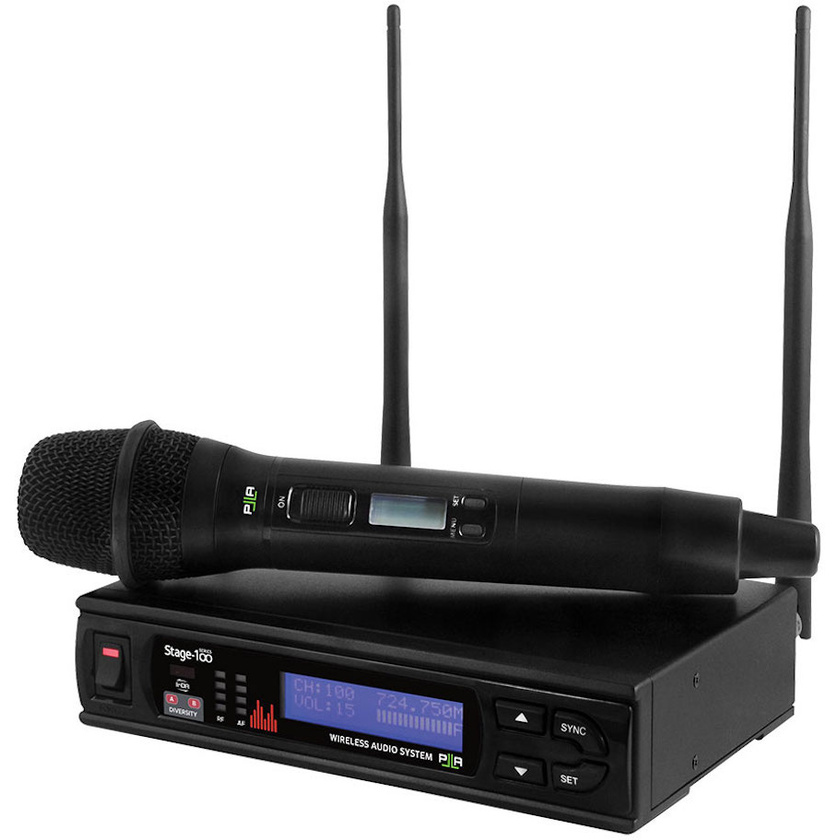

Parallel Audio STAGE-HH Wireless Handheld System
Usually ships in 1 - 2 weeks
Our Price
$749
AUD
Usually ships in 1 - 2 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 1 - 2 weeks.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
1 - 2 weeks
Click & Collect
Features
- 1/2U rack-mountable metal chassis
- High contrast LCD display
- 100 factory preset UHF channels
- Battery level indicator
- High performance
- True diversity reception
Description
Specifications
| Channel | Single |
| Chassis | EIA standard 19" 1/2U |
| Frequency range | UHF 520-675MHz (3 available bands) |
| Bandwidth | Up to 25MHz |
| Receiving mode | True Diversity |
| Peak deviation | ñ40kHz |
| Channel sync | 2-way (receiver - transmitter) |
| Sensitivity | S/N > 80dBm at 10dB?¬V |
| S/N ratio | > 110dB (A) |
| T.H.D. | < 0.5% @ 1kHz |
| Frequency response | 50Hz - 18kHz |
| Receiving antenna | Rear Panel. Detachable |
| Preset channels | 100 |
| Oscillation mode | PLL synthesised, frequency stability ??ñ 0.005% (-10 - +60C) |
| Squelch | Pilotone & Noise-cancelling dual-squelch circuit |
| Audio output adjustment | Gain control circuit for adjustment of output volume |
| Output connector | Balanced XLR and unbalanced 6.3?? |
| Power supply | 12V DC, 1.0A |
| Power consumption | 12W |
| Dimensions (mm) | 200 (W) x 44 (H) x 220 (D) |
| Weight (kg) | 1.1 |
In The Box
- Stage-100 Wireless Receiver
- HH9000 Handheld Transmitter
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Parallel Audio STAGE-HH Wireless Handheld System
- Manufacturer: Parallel Audio
- Model: STAGE-HH
- SKU: STAGE-HH
- RM Product #: 116952
- System Type: Handheld System
