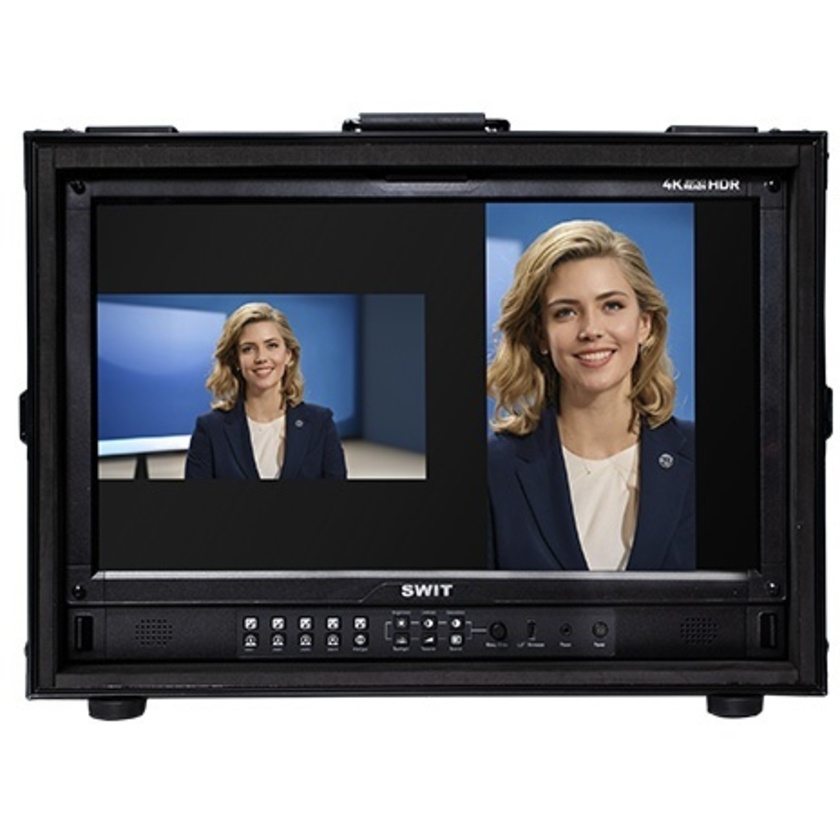

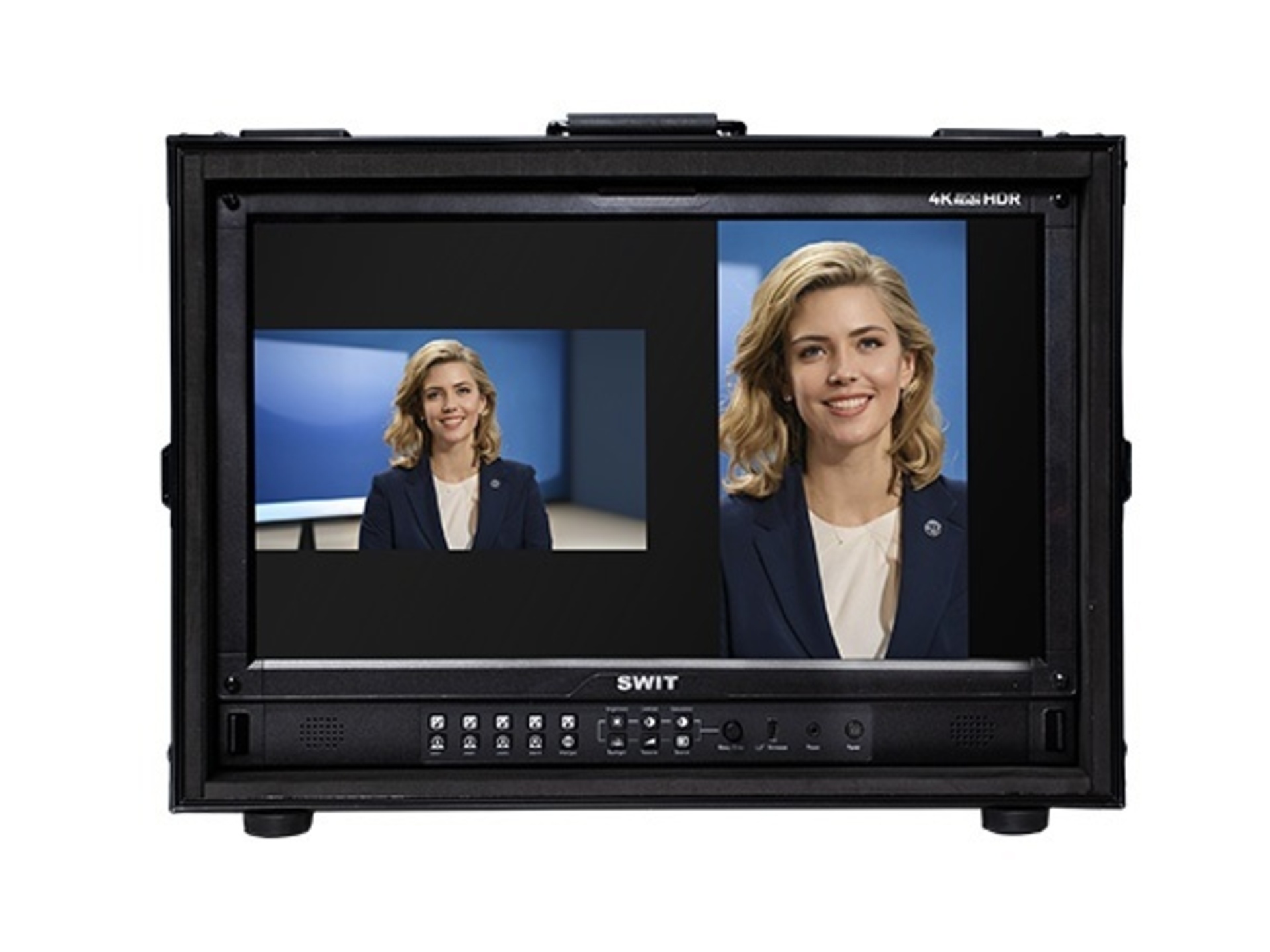

SWIT FM-215HDR 21.5" 12G-SDI HDR Field Monitor

Name: SWIT FM-215HDR 21.5" 12G-SDI HDR Field Monitor
Brand: SWIT
SKU: 113843
Price: 2949.00 NZD
Availability: BackOrder

Product #113843 | SKU FM-215HDR | SWIT

| Write a review

Usually ships in 4 - 6 weeks what does this mean?

SWIT FM-215HDR 21.5" 12G-SDI HDR Field Monitor

Our Price $2,589 AUD

Usually ships in 4 - 6 weeks what does this mean?

Email me when stock arrives

Request price match

Talk to our experts

Shipping & Availability

Usually ships in 4 - 6 weeks. Deliver to New South Wales for $5 Change location

Click & Collect

Check availability

Related Products

SWIT 140Wh Pocket Battery with D-Tap and USB Outputs (V-Mount)

Usually ships in 4 - 6 weeks

$459

SWIT Foldable Sunhood for FM-215HDR Professional Field Monitor

Usually ships in 4 - 6 weeks

$95^.95

Features

21.5" 1920 × 1080 QLED Panel
1000nits high bright PQ/HLG HDR
12G-SDI 4K in and out
4× 3G-SDI Quadlink 4K input
HDMI® 2.0 4K input

Description | Specifications | In The Box

Description

The SWIT FM-215HDR 21.5" 12G-SDI HDR Field Monitor is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.

The monitor is equipped with an advanced Quantum Dot LED (QLED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring. Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input. 1× input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform live-streaming productions.

Specifications


Specs
Size	21.5"
Display area	476×268mm
Resolution	1920×1080
Aspect ratio	16:9
Brightness	1000nits
Contrast	1000:1
Color depth	10-bit
Signal process	18-bit
Viewing angle	178°(H) /178°(V)
Input
BNC ×1	12G/6G/3G/HD/SD-SDI input
BNC ×3	3G/HD/SD-SDI input
HDMI® ×1	HDMI® 2.0 input
RS485 ×1	TSL 3.1/4.0 UMD input
RS485 ×1	GPI (Tally) input
RJ45 ×1	1000M Ethernet input for Webserver IP control
Output
BNC ×1	12G/6G/3G/HD/SD-SDI loop output
BNC×1	3G/HD/SD-SDI loop output
RS485 ×1	TSL 3.1/4.0 UMD output
Analog audio	3.5mm headphone and speaker
Video Format
SDI 1	4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (50 / 59.94 / 60) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576I (50)
SDI 2/3/4	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 1080psf (30 / 29.97 / 25 / 24 / 23.98) 720p (60 / 59.94 / 50) 480i (59.94), 576I (50)
Quad Link 4K (Each channel)	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI®	4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50)
General
Input voltage	DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption	60W
Working temperature	0°C~+50°C
Working humidity	10%~90%
Storage temperature	-15°C~+60°C
Storage humidity	10%~90%
Dimensions	570×405×260mm (with case)
Net weight (main body)	14kg (with case)

In The Box

SWIT 21.5 inch 1000nits 12G-SDI HDR Field Monitor
Install Plate x2
Screen Protector
Flight Case

Reviews

(no ratings yet)

Own or use this product?
Give it a quick rating:

Share your thoughts with other customers:
Write a review

Details

Product: SWIT FM-215HDR 21.5" 12G-SDI HDR Field Monitor
Manufacturer: SWIT
Model: FM-215HDR
SKU: FM-215HDR
RM Product #: 113843
Screen Size: 21.5"
Connection: BNC
Screen Resolution: 1920 x 1080
Connection: HDMI
Connection: RJ45
Warranty: 1 year manufacturer warranty. Batteries over 100Wh - 2 year manufacturer warranty
