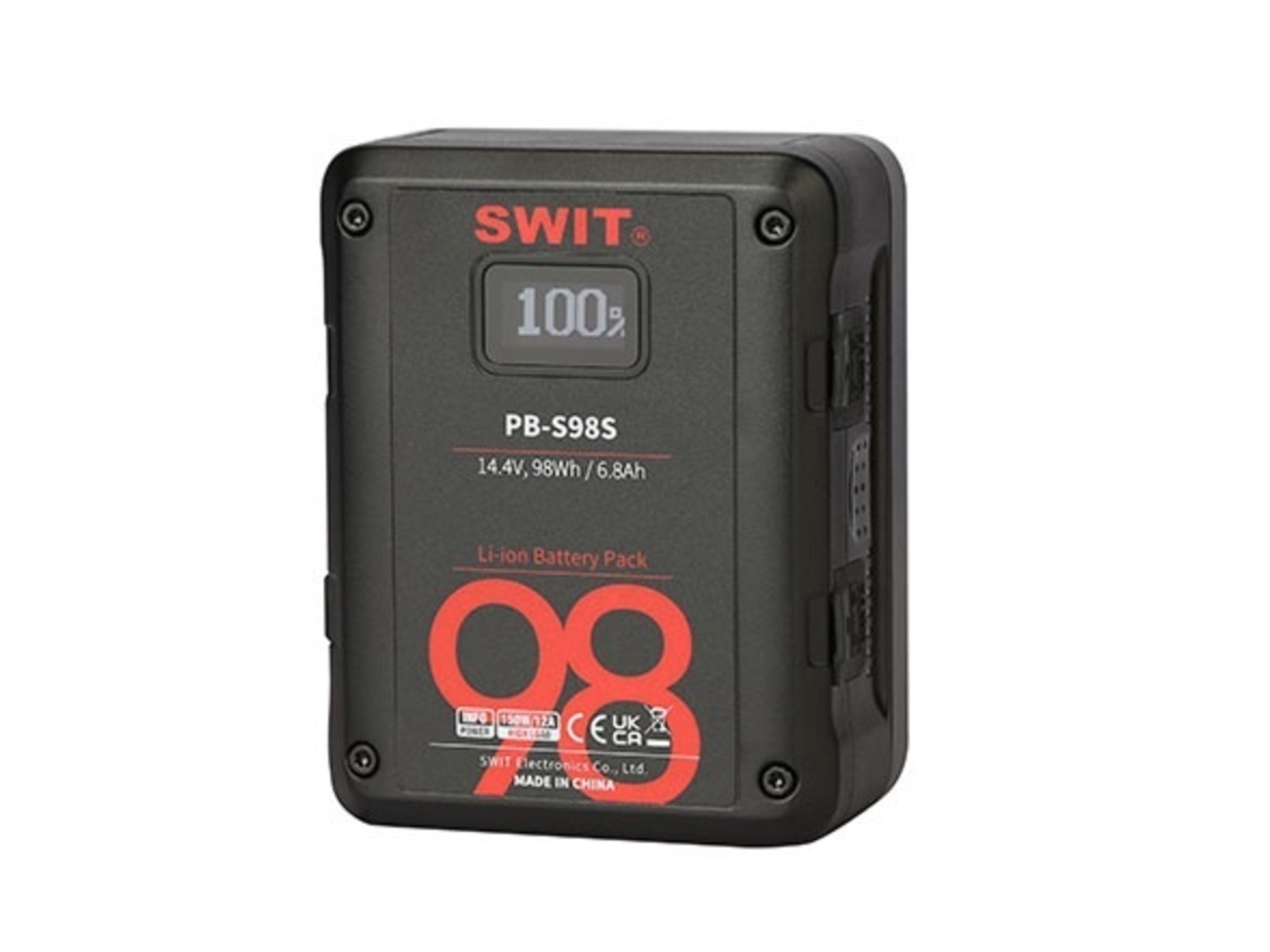

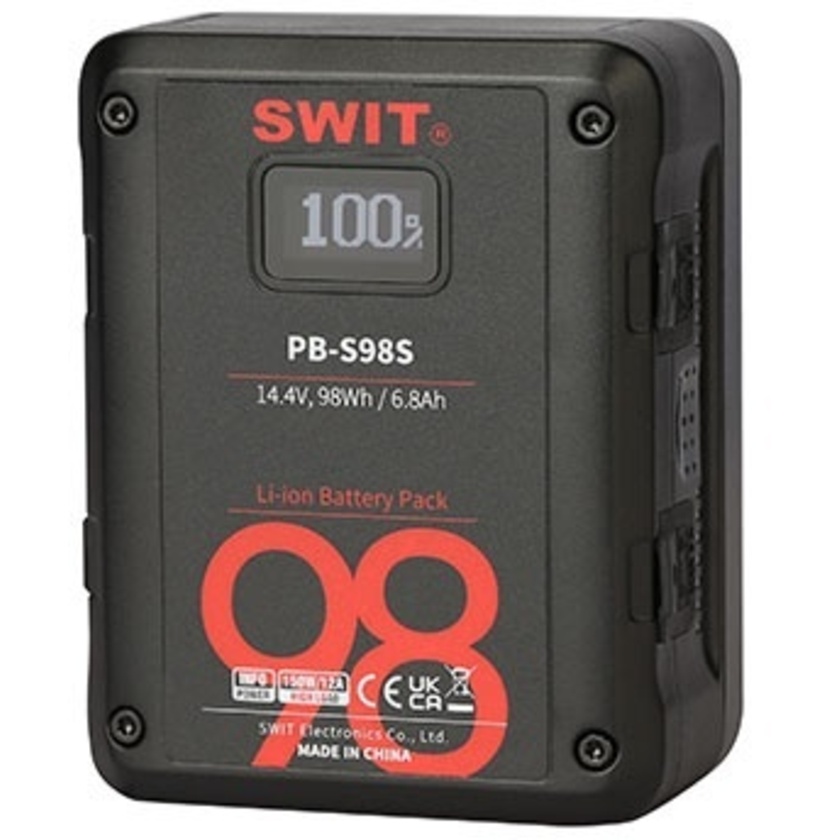

SWIT PB-S98S 14.4V 98Wh Dual D-Tap Heavy-Duty Digital Battery (V-Mount)

Product #114011 | SKU PB-S98S | SWIT
Usually ships in 4 - 6 weeks what does this mean?
Our Price $359 AUD
Usually ships in 4 - 6 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 4 - 6 weeks. Deliver to New South Wales for $5 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 4 - 6 weeks
Click & Collect

Features

  • Short, Compact Design
  • Up to 100W/8A Continuous Output
  • Powers ENG Cameras for Approx. 3 Hours
  • Suitable for Drone & Mobile Applications
  • Two D-Tap Outputs
  • USB Port

Description

The SWIT PB-S98S 14.4V 98Wh Dual D-Tap Heavy-Duty Digital Battery , featuring a V-mount, has a short, compact design and provides up to 100W/8A continuous output. While it's suitable for most cameras and devices and it can power an ENG camera for approximately 3 hours, its small size also makes it ideal for drones and other mobile applications. In addition to this, the PB-S98S offers two D-Tap outputs for powering accessories and a USB port for charging mobile devices.

The battery has an intelligent LCD that displays remaining runtime in minutes when the battery is in use and as a percentage value when not in use or when charging. When remaining runtime is less than 15 minutes, the LCD will flash as a warning. It'll also show a warning signal with a specific warning code if the battery detects over-discharging, over-charging, circuit issues, and the like. A long press of the power-cheque button will display the battery's cycle times on the LCD. The PB-S98S also communicates runtime info to RED and Sony viewfinders.

Specifications

Mount / Series Type V-Mount
Chemistry Lithium-Ion
Battery Capacity 6800 mAh / 98 Wh
Output Voltage 14.4 VDC
Maximum Load 100 W, 8 A
Accessory I/O 2x D-Tap / P-Tap
Maximum Load (Accessory I/O) 100 W, 8 A (D-Tap)
USB Output 5 V, 2 A
Dimensions (W x H x D) 3.74 x 4.76 x 2.32" / 9.5 x 12.1 x 5.9 cm
Weight 1.76 lb / 0.8 kg

In The Box

  • SWIT PB-S98S 14.4V 98Wh Dual D-Tap Heavy-Duty Digital Battery (V-Mount)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: SWIT PB-S98S 14.4V 98Wh Dual D-Tap Heavy-Duty Digital Battery (V-Mount)
  • Manufacturer: SWIT
  • Model: PB-S98S
  • SKU: PB-S98S
  • RM Product #: 114011
  • Battery Mount / Series: V-Mount
  • Batteries / Chargers: Batteries Only
  • Wattage / mAh: 6800mAh
  • Battery: Lithium-Ion
  • Warranty: 1 year manufacturer warranty. Batteries over 100Wh - 2 year manufacturer warranty
