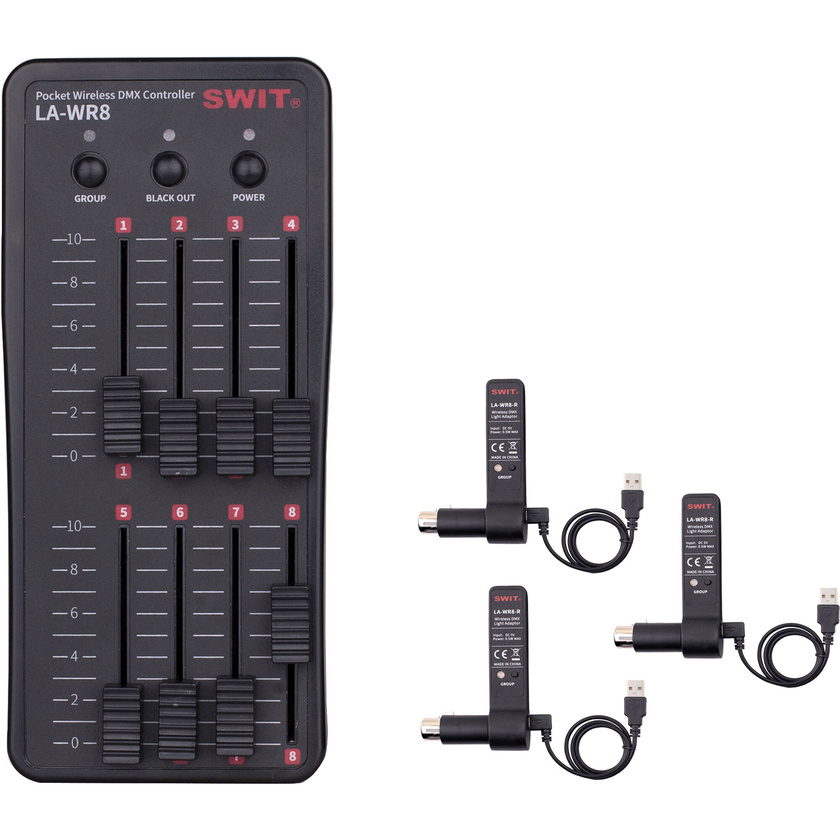

SWIT Pocket Wireless DMX Controller Kit

Product #114024 | SKU LA-WR8 KIT(Tx+3Rx) | SWIT
Usually ships in 10 - 12 weeks what does this mean?
Our Price $339 AUD
Usually ships in 10 - 12 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 10 - 12 weeks. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 10 - 12 weeks
Click & Collect

Features

  • 1 x Wireless DMX Controller/Transmitter
  • 3 x Wireless DMX Receivers
  • DMX 512 Compatible
  • 7 x Groups, 8 x Channels per Fixture
  • 2.4 GHz, 1300' L.O.S. Range
  • 8 x Discrete Sliders, Blackout Button

Description

Eliminate the need for long DMX wiring cable runs with the SWIT Electronics Pocket Wireless DMX Controller. By connecting your light fixtures with an optional wireless receiver, you can control them wirelessly using this portable DMX controller. It operates on a 2.4 GHz frequency and also offers the option for wired control with an optional USB to XLR cable. The wireless control has a range of over 1300' line-of-sight, saving you the hassle of dealing with extensive cables.

This compact controller features eight sliders, allowing you to control up to eight channels per light fixture. You can create up to seven groups of lights, resulting in a total of 56 channels. Powered by two AA batteries, the controller can provide approximately four hours of usage. Additionally, it can be powered through a micro-USB port using the provided cable and USB power supply. The unit enters sleep mode after one minute of inactivity to conserve power.

Specifications

DMX 512 Protocol Channels: 8
Channels per Fixture: 8
GROUP Number: 7
Signal Output Wireless: 2.4 GHz
USB Type-A
Connectors USB
1 x Type-A
1 x Micro-USB
Wireless Transmission 1312.34' / 400 m
Power Supply
2 x AA Batteries
5 VDC (Through Micro-USB Socket)

Consumption
1 W

Output
1 x USB Type-A
Dimensions 7.24 x 3.31 x 1.22" / 184 x 84 x 31 mm
Weight 9.67 oz / 274 g (Without Batteries)
Key Specs
Inputs/Outputs 1x USB-A Male
Channels 0 (ArtNet)
General
Inputs/Outputs 1x USB-A Male
Channels 0 (ArtNet)
Cooling System Passive
Wireless Range 1312.3' / 400 m
Frequency 2.4 GHz
Power
Power Consumption 0.5 W
Input Power 5 VDC
Environmental
Environmental Protection No
Physical
Rack Mount Yes
Dimensions 4.3 x 2.8 x 0.5" / 110.0 x 70.0 x 12.0 mm
Weight 16.9 oz / 479 g

In The Box

  • SWIT Pocket Wireless DMX Controller
  • SWIT Light Adapter

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: SWIT Pocket Wireless DMX Controller Kit
  • Manufacturer: SWIT
  • Model: LA-WR8 KIT(Tx+3Rx)
  • SKU: LA-WR8 KIT(Tx+3Rx)
  • RM Product #: 114024
  • Warranty: 1 year manufacturer warranty. Batteries over 100Wh - 2 year manufacturer warranty
