The Sennheiser EW 500 BOOM G4-GBW Wireless Boom System is a highly versatile solution for professional film sound: Rugged all-in-one wireless system for professional interviews and recording. The professional‘s choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use. The phantom power-equipped SKP 500 plug-on transmitter adapts any wired shotgun or handheld microphone for a wide range of wireless applications, from field interviews to off-camera boom work.

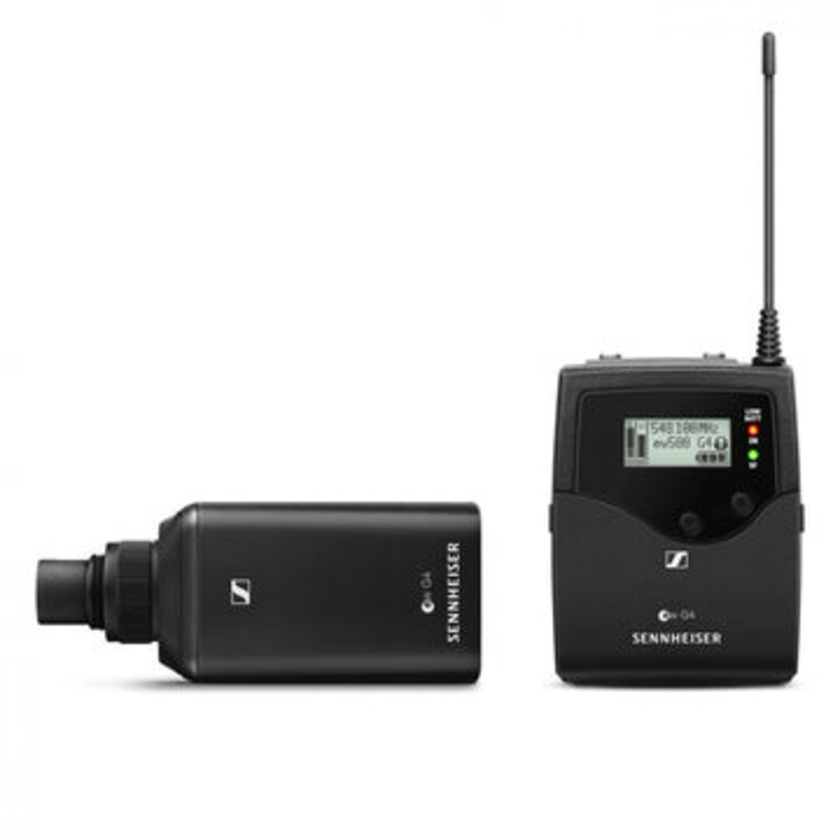

Sennheiser EW 500 BOOM G4-GBW Wireless Boom System
Usually ships in 6 - 8 weeks
Our Price
$1,739
AUD
Usually ships in 6 - 8 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 6 - 8 weeks.
Deliver to
New South Wales
for $4.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
6 - 8 weeks
Click & Collect
Features
- Highly versatile solution
- Professional sound
- Easy to use and fast setup time
- Increased RF output power
- Up to 8 hours of operation time
- With 48 V phantom powering
Description
Specifications
| Dimensions | Approx. 82 x 64 x 24 mm Approx. 105 x 43 x 43 mm |
| Compander | Sennheiser HDX |
| THD, total harmonic distortion | ≤ 0.9 % |
| Weight (incl. batteries) | Approx. 130 g |
| (incl. batteries) | Approx. 195 g |
| Audio outpu | 3.5 mm jack socket: +17 dBu (mono, balanced) |
| Signal-to-noise ratio | Line: ≥ 110 dBA Phones: approx. 90 dBA ≥ 120 dBA |
| RF output power | Switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Switching bandwidth | Up to 88 MHz |
| Peak deviation | ±48 kHz |
| Nominal deviation | ±24 kHz |
| Operating time | Typically 8 h |
| Modulation | Wideband FM |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Current consumption | At nominal voltage: typ. 140 mA At nominal voltage: typ. 210 mA With receiver switched off: ≤ 25 µA With transmitter switched off: ≤ 25 µA |
| Adjacent channel rejection | Typically ≥ 65 dB |
| Input impedance | 68 kΩ, unbalanced |
| Intermodulation attenuation | Typically ≥ 65 dB |
| Max. Input voltage | 6 Veff |
| Powering | 3 V battery / 2.4 V rechargeable battery |
| Receiving frequency | Max. 3520 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| RF sensitivity | < 1.6 μV for 52 dBA eff S/N |
In The Box
- Sennheiser EW 500 BOOM G4-GBW Wireless Boom System
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Sennheiser EW 500 BOOM G4-GBW Wireless Boom System
- Manufacturer: Sennheiser
- Model: 509903
- SKU: 509903
- RM Product #: 117082
- System Type: Handheld System
- Warranty: 2 year manufacturer warranty
