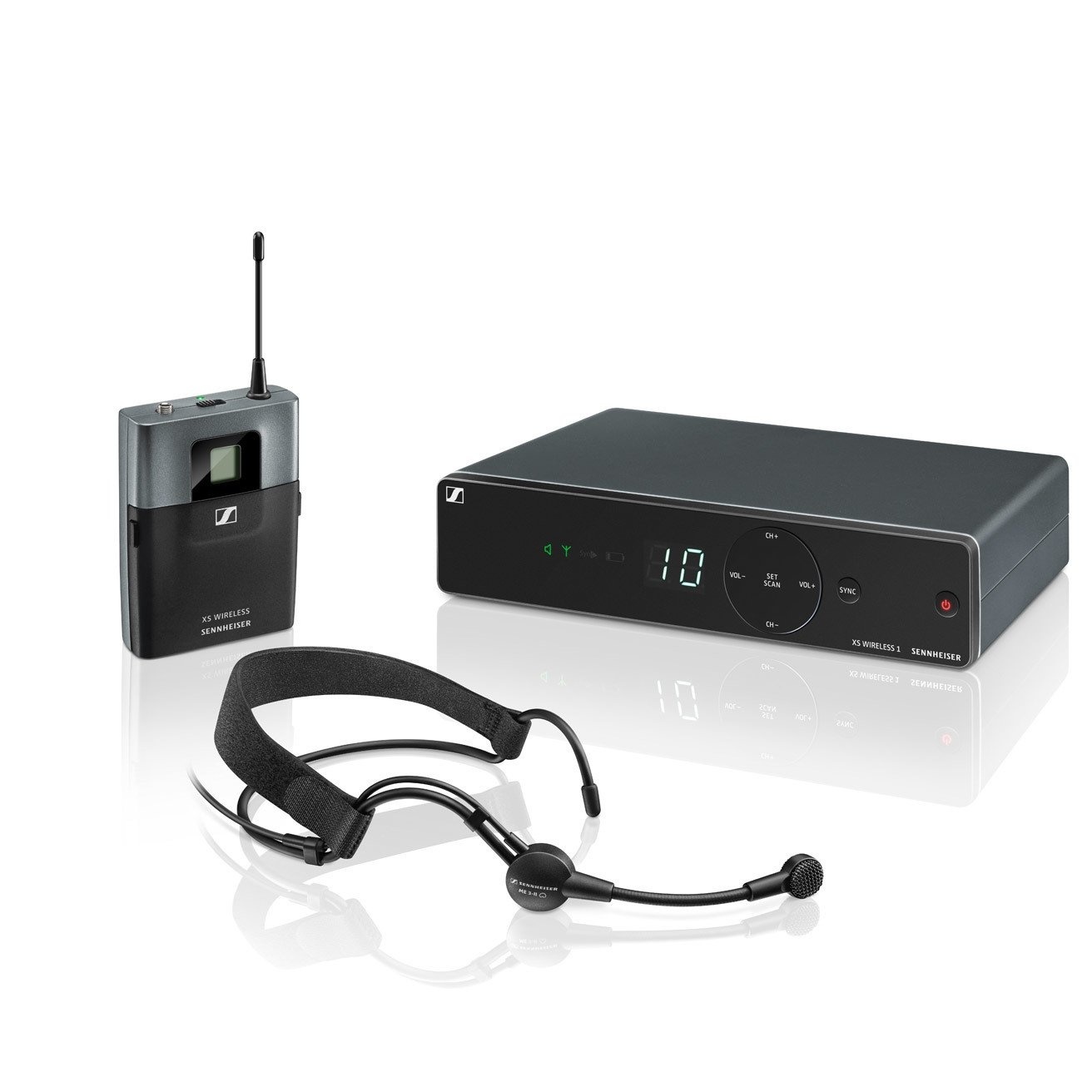

Sennheiser XSW 1-ME3 UHF Headmic Set (BC: 670 - 694 MHz)
Usually ships in 4 - 6 weeks
Our Price
$589.00
AUD
Usually ships in 4 - 6 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 4 - 6 weeks.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
4 - 6 weeks
Click & Collect
Features
- BC Band (670 - 694 MHz)
- SK-XSW Bodypack Transmitter
- EM-XSW 1 UHF Receiver
- ME3-II Headmic
- Antenna-Switching Diversity Reception
- Automatic Frequency Management
Description
Hands-free performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 HEADMIC SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound that involves dancing and singing all at the same time. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a compact bodypack transmitter and a lightweight headset microphone.
Key Features:
- Lightweight headmic and compact bodypack transmitter
- Antenna-switching diversity reception
- Integrated antennas
- Automatic frequency management and synchronization via remote channel for easy setup
- Selectable UHF frequencies within a large bandwidth
- Up to 10 compatible channels
Specifications
| System | |
| Modulation | Wideband FM |
| Frequency Range | BC: 670 - 694 MHz |
| Switching Bandwidth | Up to 24 MHz |
| Signal to Noise Ratio | ≥ 103 dBA |
| Total Harmonic Distortion | ≤ 0.9% |
| Temperature Range | Operation: 32 to 104°F (0 to +40°C) |
| Storage | -4 to 158°F (-20 to 70°C) |
| Transmitter Synchronisation | 2.4 GHz, Low Power OQPSK (only active during synchronisation) |
| Receiver | |
| Principle | Double superheterodyne |
| Diversity | Antenna switching diversity via internal antennas |
| Sensitivity | < 3 μV at 52 dBA RMS S/N (at peak deviation) |
| Frequency Response | 50 Hz to 16 kHz (-3 dB) |
| Max Output Voltage | At Peak Deviation, 1 kHz AF 1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu XLR Socket (balanced): +12 dBu |
| Adjustment Range | Audio: 45 dB, adjustable in 5-dB steps |
| Power Supply | 12 VDC nominal, 300 mA |
| Squelch | Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone) |
| Line/Mic Level | 20 dB, switchable |
| Material of Construction | ABS housing |
| Dimensions | 7.9 x 1.7 x 5.0" (200 x 42 x 127 mm) |
| Weight | 12 oz (340 g) |
| Bodypack Transmitter | |
| Output Power | 10 mW |
| Frequency Response | Line: 50 Hz to 16 kHz Mic: 50 Hz to 16 kHz |
| Audio Input | 1/8" (3.5 mm) jack socket |
| Input Voltage | Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS lineat -30 dB gain |
| Power Supply | 2 x AA batteries, 1.5 V |
| Operating Time | Approximately 10 hours |
| Adjustment Range | Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps |
| Material of Construction | Rugged ABS housing |
| Dimensions | 2.8 x 3.8 x 1.1" (71 x 96 x 28 mm) |
| Weight | 3.4 oz (95 g) |
| Headset | |
| Microphone Type | Condenser, pre-polarised |
| Sensitivity | 1.6 mV/Pa |
| Polar Pattern | Cardioid |
| Max SPL | 150 dB |
In The Box
- 1 receiver EM-XSW 1
- 1 headset microphone ME 3-II
- 1 bodypack transmitter SK-XSW
- 1 power supply NT 12-5 CW
- 2 AA batteries
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Sennheiser XSW 1-ME3 UHF Headmic Set (BC: 670 - 694 MHz)
- Manufacturer: Sennheiser
- Model: XSW 1-ME3
- SKU: 507452
- RM Product #: 100319
- System Type: Headset System
- Warranty: 2 year manufacturer warranty
