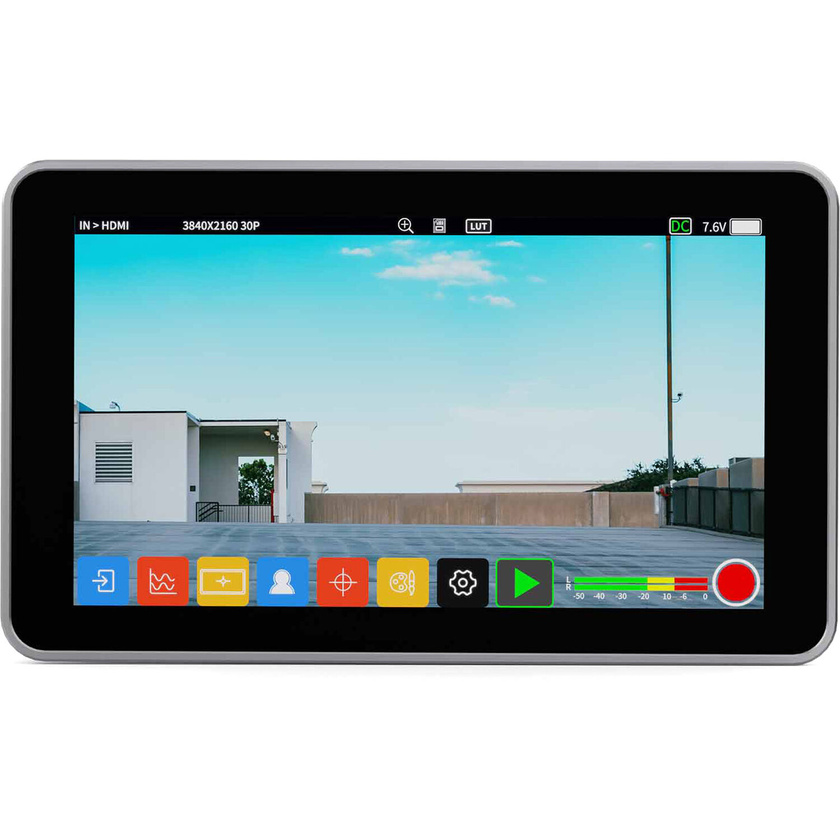

With enhanced functionality and a refreshed user interface, the Shimbol Memory I Pro 5.5" 3D LUT HDMI & 3G-SDI Touchscreen Video Recorder/Monitor offers advanced capabilities. This versatile device is capable of recording and viewing DCI 4K25 HDMI or 1080p60 3G-SDI video while supporting customised 3D LUTs. Equipped with a 5.5" touchscreen display boasting a resolution of 1920 x 1080 and a wide viewing angle of 178°, the Pro monitor ensures optimal visibility in various lighting conditions with its impressive 1200:1 contrast ratio and 2000 cd/m² brightness, even in bright sunlight. Connectivity options include HDMI and 3G-SDI inputs and outputs, a USB-C port for debugging purposes, a 3.5mm headphone jack for embedded audio, and an SD card slot for convenient onboard recording capabilities. The improved UI and touchscreen controls enable easy access to a range of visual assist functions.
Shimbol Memory I Pro 5.5" 3D LUT HDMI & 3G-SDI Touchscreen Video Recorder/Monitor
In Stock with Supplier Usually ships in 2 - 4 weeks
Our Price
$849
AUD
In Stock with Supplier Usually ships in 2 - 4 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 4 weeks.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
2 - 4 weeks
Click & Collect
Features
- 1920 x 1080 Touchscreen Display
- Up to DCI 4K25 HDMI, 1080p60 3G-SDI
- 1080p60 MP4 File Recording to SD Card
- 2000 cd/m² Brightness
- Improved UI Interface, 3D LUT Support
- HDR Monitoring, Waveform
Description
Specifications
| Key Specs | |
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | Yes |
| HDR Support | Yes, Hybrid Log Gamma |
| Video I/O | 1x HDMI 1.4 Input 1x BNC (3G-SDI) Input 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Video Format | HDMI DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Built-In Battery | No |
| Battery Type | 1x L-Series |
| Power Consumption | 12 W |
| Mounting | 2x 1/4"-20 Female |
| Display | |
| Panel Type | LCD |
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 2000 nits / cd/m2 |
| Contrast Ratio | 1200:1 |
| HDR Support | Yes, Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 400 ppi |
| Image Controls | Cheque Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Image Flip, Screen Markers, Waveform, Zebra |
| Inputs / Outputs | |
| Video I/O | 1x HDMI 1.4 Input 1x BNC (3G-SDI) Input 1x HDMI 1.4 Output 1x BNC (3G-SDI) Output |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel Input |
| Other I/O | 1x USB-C (Firmware) |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Gamma Curve | Rec709 |
| Timecode Support | Yes |
| Recording | |
| Pulldown Conversion | No |
| Camera Trigger | SDI, HDMI |
| Pre-Roll Record | No |
| Encoding Formats | Up to 1920 x 1080 H.264 at up to 60 fps |
| Power | |
| Input Power | 6.5 to 16.8 VDC |
| Built-In Battery | No |
| Battery Type | 1x L-Series |
| Power Consumption | 12 W |
| Mounting | |
| Mounting | 2x 1/4"-20 Female |
| General | |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Storage Conditions | -4 to 140°F / -20 to 60°C |
| Material of Construction | Aluminium |
| Dimensions | 5.8 x 3.4 x 1" / 146.6 x 87.6 x 26.5 mm |
| Weight | 11.29 oz / 320.00 g |
In The Box
- Shimbol Memory I Pro 5.5" 3D LUT HDMI & 3G-SDI Touchscreen Video Recorder/Monitor
- Cold Shoe Mount Adapter
- SD Card
- Tempered Screen Protector
- HDMI Cable
- SDI Cable
