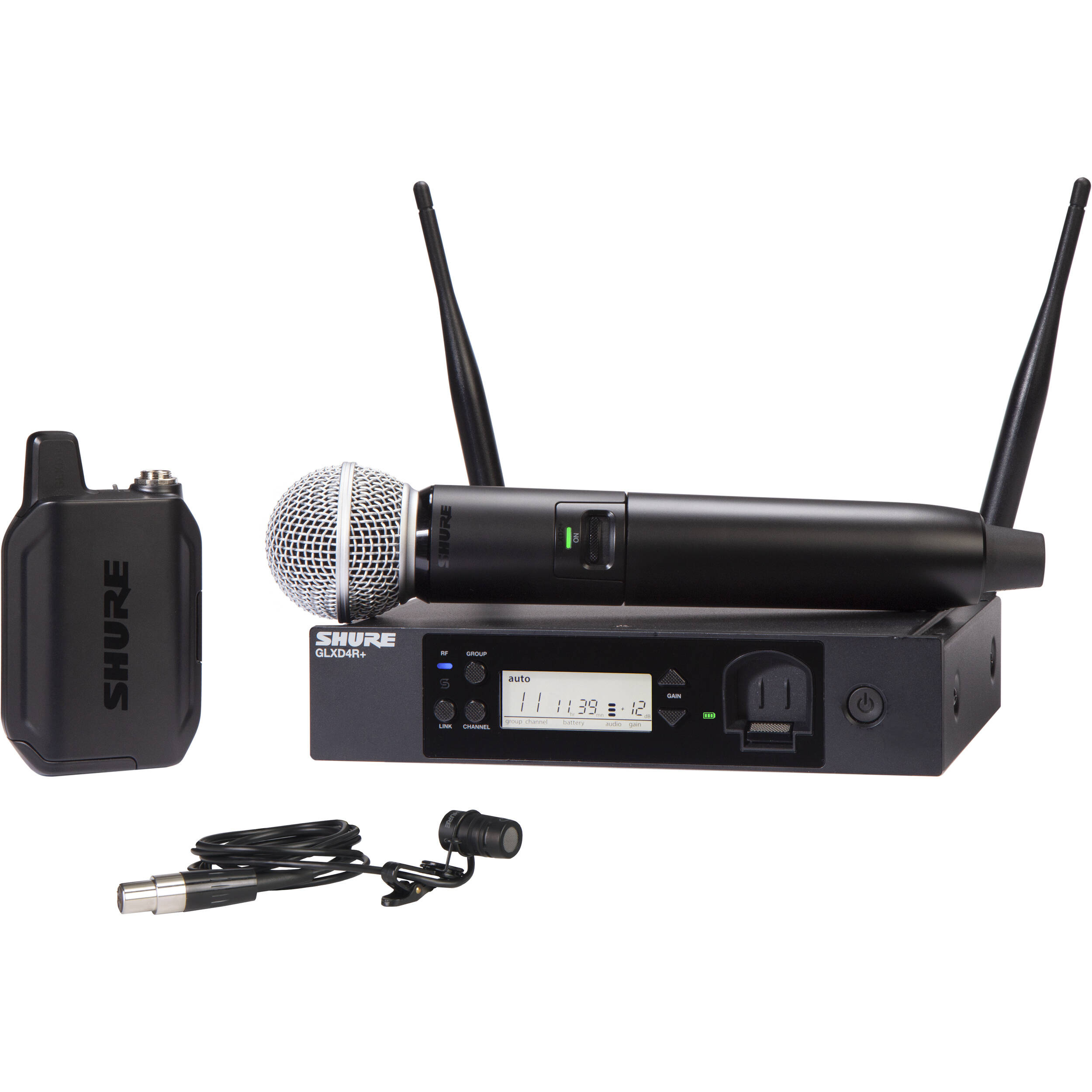

Shure GLXD124R+ Dual-Band Wireless Combo Rack System

Name: Shure GLXD124R+ Dual-Band Wireless Combo Rack System
Brand: Shure
SKU: 103424
Price: 2049.00 NZD
Availability: Discontinued

Product #103424 | SKU GLXD124R+-WL185 | Shure

| Write a review

This product is no longer available what does this mean?

Featuring the industry standard SM58® microphone handheld, the WL185 lavalier microphone, and the half-rack GLXD4R+, the new Shure GLXD124R+ Dual-Band Wireless Combo Rack System is tailored to deliver flexibility for installed applications.

Featuring the industry standard SM58® microphone handheld, the premium WL185 lavalier microphone, and the half-rack GLXD4R+, the new GLX-D+ Dual Band Wireless Combo System is tailored to deliver maximum flexibility for installed applications. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.

Shure SM58 Microphone

The SM58 is known as the world’s most popular performance microphone. It is an instantly recognisable icon for performance and can be seen in the hands of anyone from Pop Idols and Presidents, to Podcasters, Poets and MC’s It is also a very effective microphone for live streaming and podcasting. Simply connect the SM58 to either an MVi, an X2U, or your audio interface of choice, and you’ve got a very affordable and durable kit for your live stream.

Shure WL185 Lavalier Microphone

The WL185 premium cardioid lavalier microphone brings a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, this lavalier uses an interchangeable condenser cartridge, meaning there will always be a lavalier to suit your application.

Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver

The new GLXD4+ Dual Band Rack Receiver delivers exceptional digital audio clarity. In combination with the new GLXD+ Dual Band Frequency Manager provides seamless operation with advanced RF performance.

Key Features

For Performers and Presenters
WL185 Cardioid Lav Mic with Bodypack
SM58 Dynamic Cardioid Mic/Transmitter
Metal Half-Rack Receiver
Easy Setup with Auto Pairing


System
Wireless Technology	Digital 2.4 GHz/5.8 GHz
Included Transmitters	1 x Handheld 1 x Bodypack
Diversity	True Digital Diversity
RF Frequency Band	M17: 662- 686MHz
RF Channel Scanning	Auto-Scan
Max Operating Range	30.5 m (Line of Sight)
Max Transmitters per Band	8
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No *As of February, 2023: Cheque with manufacturer for the most up-to-date compatibility
Dynamic Range	120 dBA
Modulation	Proprietary
Receiver
Receiver Type	Rackmount
Mounting Options	Rackmount (with Included Hardware)
Rackmount Size	1 RU (1/2 Rack)
Antenna	2 x 1/2 Wave Sleeve Dipole, Detachable (Rear-Mount)
Number of Audio Channels	1
Audio I/O	1 x XLR 3-Pin Male Balanced Mic/Line Output 1 x 1/4" TRS Female Balanced Output
Gain Range	-18 to +42 dB (1 dB Steps)
Pad	30 dB
Audio Output Level	XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4" Output: +12 dBV
Phantom Power Protection	On 1/4", XLR Outputs
Frequency Response	20 Hz to 20 kHz (Dependant on Mic)
Network I/O	None
Word Clock I/O	None
USB/Lightning Connectivity	1 x USB-C Female (Firmware Update)
Standalone Audio Interface Capable	No
Impedance	XLR Output: 100 Ohms (Balanced) 1/4" Output: 100 Ohms (Balanced) 50 Ohms (Unbalanced)
Approximate RF Sensitivity	-88 dBm
RF Output Power	10 mW (EIRP, Max)
Spurious	Rejection: >35 dB
Power Requirements	AC/DC Power Adapter
AC/DC Power Adapter	14.5 to 17 VDC at 600 mA (Included)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Display & Indicators	1 x Backlit LCD (AF Level, Channel, Frequency, Group, Transmitter Battery Status)
Housing	Metal
Operating Temperature	0 to 45°C
Dimensions	197 x 42 x 163 mm (without Antennas)
Weight	866 g
Transmitter
Transmitter Type	Handheld
RF Output Power	10 mW (EIRP)
Audio I/O	None
Pad	None
Muting	Off/On Switch
Auto-Level Control	No
Gain Range	-18 to +42 dB (1 dB Steps)
Sync Method	Proprietary
Antenna	1 x External, Fixed (Handheld)
Power Requirements	Battery
Battery Type	1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity	2420 mAh
Battery Charging Time	.25 to 3 Hours
Approx. Battery Life	12 Hours (Lithium Rechargeable)
USB/Lightning I/O	1 x USB-C (Charging)
Display & Indicators	1 x LED (Battery Status, Sync)
Housing	Metal, Plastic
Dimensions	51 x 246 x 37 mm
Weight	275 g (without Batteries)
Microphone
Microphone Type	Handheld
Colour	Black
Sound Field	Mono
Capsule	Dynamic
Polar Pattern	Cardioid
Frequency Range	50 Hz to 15 kHz
Impedance	300 Ohms
Sensitivity	-54.5 dBV/Pa
Transmitter 2
Transmitter Type	Bodypack
RF Output Power	10 mW (EIRP)
Audio I/O	1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Plug-In Power	5 V
Pad	None
Muting	Off/On Switch
Audio Input Level	-8.4 dBV / 7.5 V p-p
Auto-Level Control	No
Gain Range	-18 to +42 dB
Signal Processing	None
Sync Method	Proprietary
Antenna	1 x Internal, Fixed (Beltpack)
Power Requirements	Battery
Battery Type	1 x Shure SB904 (Included, Replaceable)
Internal Battery Capacity	2420 mAh
Battery Charging Time	.25 to 3 Hours
Approx. Battery Life	12 Hours (Lithium Rechargeable)
USB/Lightning I/O	1 x USB-C (Charging)
Display & Indicators	1 x LED (Battery Status, Sync)
Housing	Metal
Dimensions	67 x 115 x 28.5 mm
Weight	153.1 g (without Batteries)
Microphone 2
Microphone Type	Lavalier
Colour	Black
Sound Field	Mono
Capsule	Electret Condenser
Polar Pattern	Cardioid
Frequency Range	50 Hz to 17 kHz
Equivalent Noise Level	28 dB A-Weighted
Maximum SPL	130.5 dB SPL
Impedance	1.8 Kilohms
Sensitivity	-45.5 dBV/Pa
Dynamic Range	102.5 dB
Outputs	1 x TA4/Mini XLR 4-Pin Female Unbalanced (Lockable)
Cable Length	3.9' / 1.2 m
Operating Voltage	1.5 to 10 V
