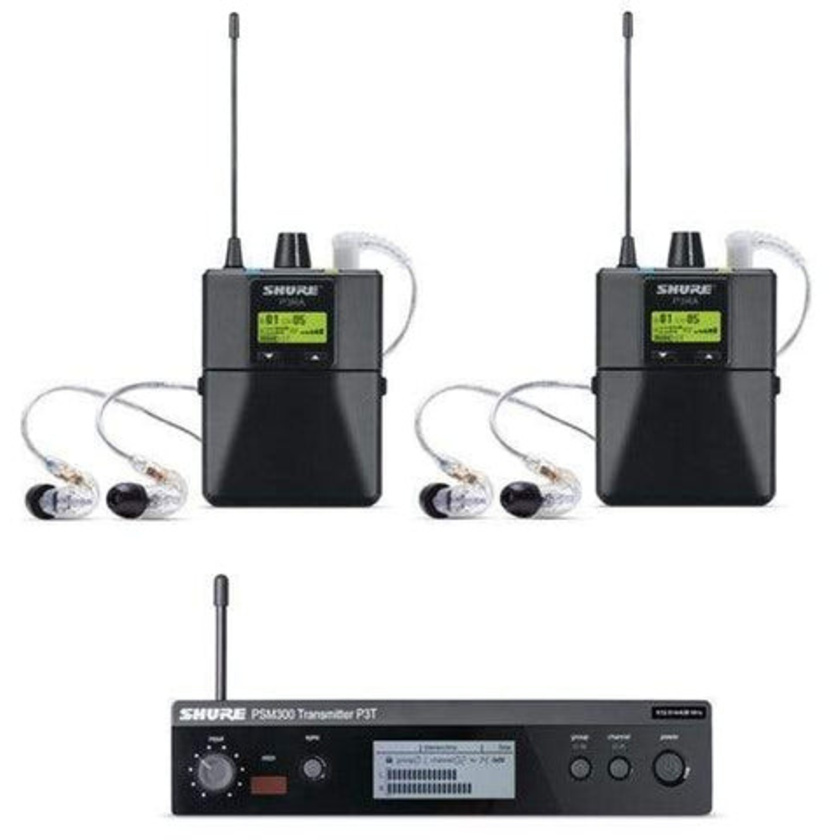

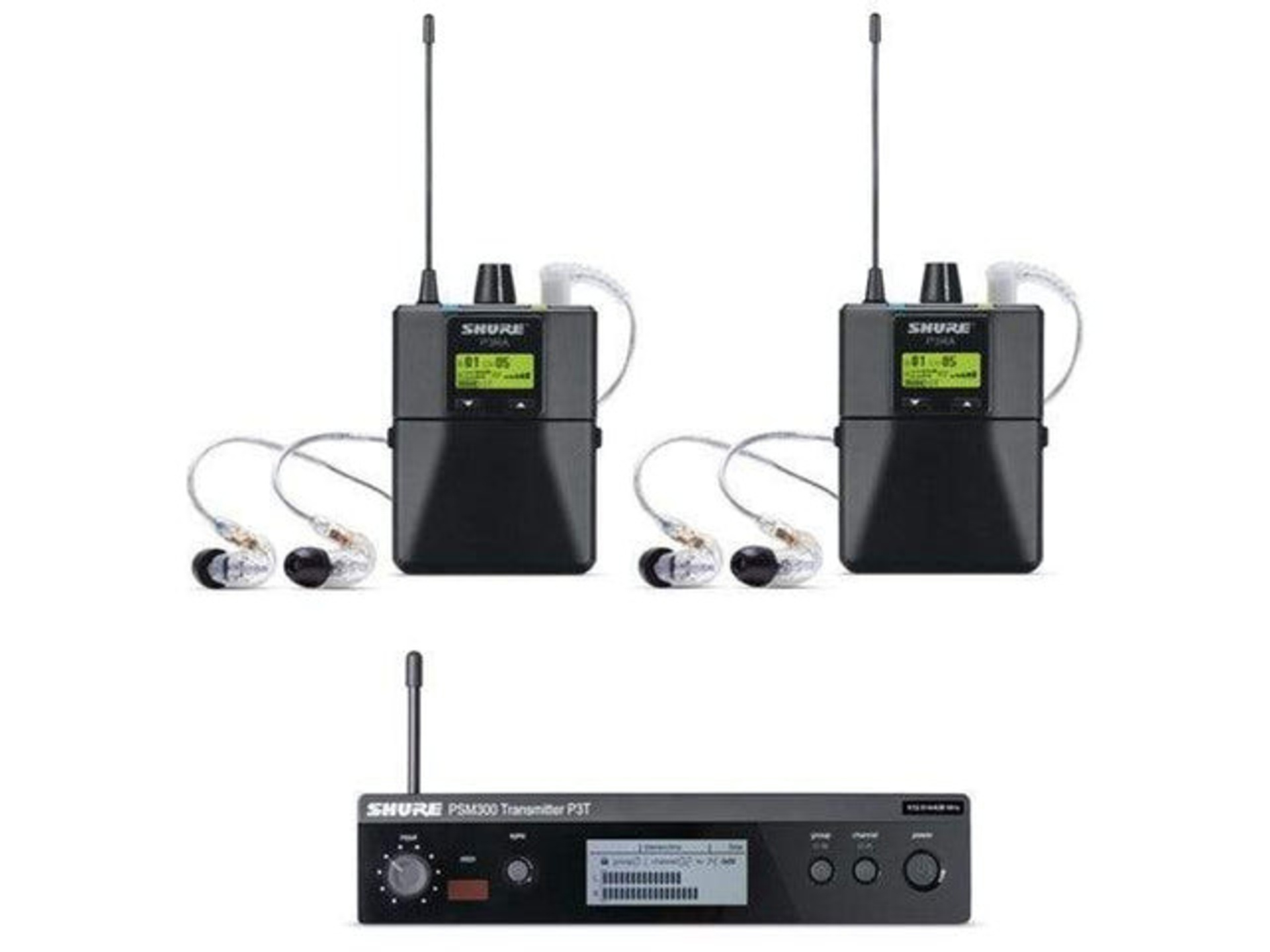

Shure PSM 300 Twin Stereo Personal Monitor System with IEM (L19: 630-654 MHz)

Product #126400 | SKU P3TRA215TWP-L19 | Shure
| Write a review
Special Order what does this mean?
Shure PSM 300 Twin Stereo Personal Monitor System with IEM (L19: 630-654 MHz)
Our Price $2,639 AUD
Special Order what does this mean?
- +
Procuret
Email me when stock arrives
Request price match
Talk to our experts

Features

  • Two P3R bodypacks with SE215 IEMs
  • 24-bit audio for clear sound
  • Audio Reference Companding feels wired
  • 90 dB signal-to-noise ratio
  • RF range up to 90 metres
  • Two AA batteries, 7-hour operation

Description

The Shure PSM 300 Twin Stereo Personal Monitor System with IEM (L19: 630-654 MHz) is an ideal monitoring solution for up to two performers, offering a convenient, durable metal multi-bodypack system-in-a-box. It also supports optional use with the SB900A rechargeable battery and includes Sound Isolating earphones designed to deliver clear, precise stereo mixes on stage.

The PSM®300 Stereo Personal Monitor System delivers detailed 24-bit digital audio processing and dependable wireless freedom to every corner of the stage. Patented Audio Reference Companding provides exceptionally clear sound with ultra-low noise and no artifacts. Reliable wireless coverage extends over 90 m and helps eliminate dropouts. Designed for easy setup and operation, PSM®300 systems feature one-touch frequency scan and sync to quickly find and assign a clean wireless channel. Users can adjust the volume and use MixMode® technology or stereo mode to create a personal mix from two channels of audio.

P3TRA215CL includes SE215 Sound Isolating™ Earphones, all-metal components, optional receiver rechargeability, and more advanced receiver controls.

Specifications
Shure P3T Wireless Transmitter for PSM300 (L19: 630-654 MHz)
Performance
Frequency Range L19: 630-654 MHz
RF Output Power 10, 20, 30 mW
Note: varies by region
RF Output Impedance 50 Ohms (typical)
Transmission Range 300' (90 m)
Audio Input
Connector Type 1/4" TRS (6.35 mm)
Polarity Tip positive with respect to ring
Configuration Electronically balanced
Impedance 40 kOhms (actual)
Nominal Input Level Switchable, +4 dBu, -10 dBV
Maximum Input Level +4 dBu: +22 dBu
-10 dBV: +12.2 dBu
Pin Assignments Tip=hot, Ring=cold, Sleeve=ground
Phantom Power Protection Up to 60 VDC
Audio Output
Connector Types 1/4" TRS (6.35 mm)
Configuration Electronically balanced
Impedance Connected directly to inputs
General
Antenna 1/4 wave, detachable
Power Requirement 12 to 15 VDC, 260 mA maximum
Dimensions 1.7 x 7.8 x 6.8" (43 x 198 x 172 mm)
Nett Weight 27.6 oz (783 g)
Shure P3RA Wireless Bodypack Receiver for PSM300 System
Frequency Range L19: 630-654 MHz
RF Sensitivity Active: 2.2 μV (at 20 dB SINAD)
Image Rejection > 90 dB
Adjacent Channel Rejection > 60 dB
Intermodulation Attenuation > 50 dB
Blocking > 60 dB
Audio Output Power 80 mW per output (1 kHz at < 1% distortion, peak power, at 32 Ohms)
Minimum Load Impedance 16 Ohms
Headphone Output 1.8" (3.5 mm), stereo
Continuous Battery Life 4 to 5.5 hours, AA batteries
5.5 to 7 hours, SB900 battery (available separately)
Dimensions 3.8 x 2.5 x 0.9" (99.0 x 66.0 x 23.00 mm)
Nett Weight 6.9 oz (196 g), with batteries
Shure SE215 Pro Sound-Isolating Earphones (Clear)
Headphone
Wearing Style Dual Wired Earbud with Behind-Ear Cabling
Earpiece Design In-Ear (Intra-Aural)
Open/Closed-Back Closed-Back
Sound Field Stereo
Number of Drivers 1 per Earpiece
Driver Type Dynamic
Impedance 17 Ohms
Active Noise Cancellation No
Frequency Response 22 Hz to 17.5 kHz
Sensitivity 107 dB SPL/mW at 1 kHz
Built-In Controls No
Built-In Mic No
Connectivity
Audio Connector 1x 1/8" / 3.5 mm TRS Right-Angled
Included Adapter No
Cable Design Detachable / Straight
Audio Connector to Earpiece MMCX
Cable Length 3.81' / 1.16 m
Physical
Colour Clear
Environmental Protection No
Weight 1.1 oz / 30 g

In The Box

  • Shure P3T Wireless Transmitter for PSM300 (L19: 630-654 MHz)
  • 2x Shure P3RA Wireless Bodypack Receiver for PSM300 System (JL19: 630-654 MHz)
  • 2x Shure SE215 Pro Sound-Isolating Earphones (Clear)

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Shure PSM 300 Twin Stereo Personal Monitor System with IEM (L19: 630-654 MHz)
  • Manufacturer: Shure
  • Model: P3TRA215TWP-L19
  • SKU: P3TRA215TWP-L19
  • RM Product #: 126400
  • Warranty: 2 year manufacturer warranty (excluding consumable e.g. lithium-ion batteries).
