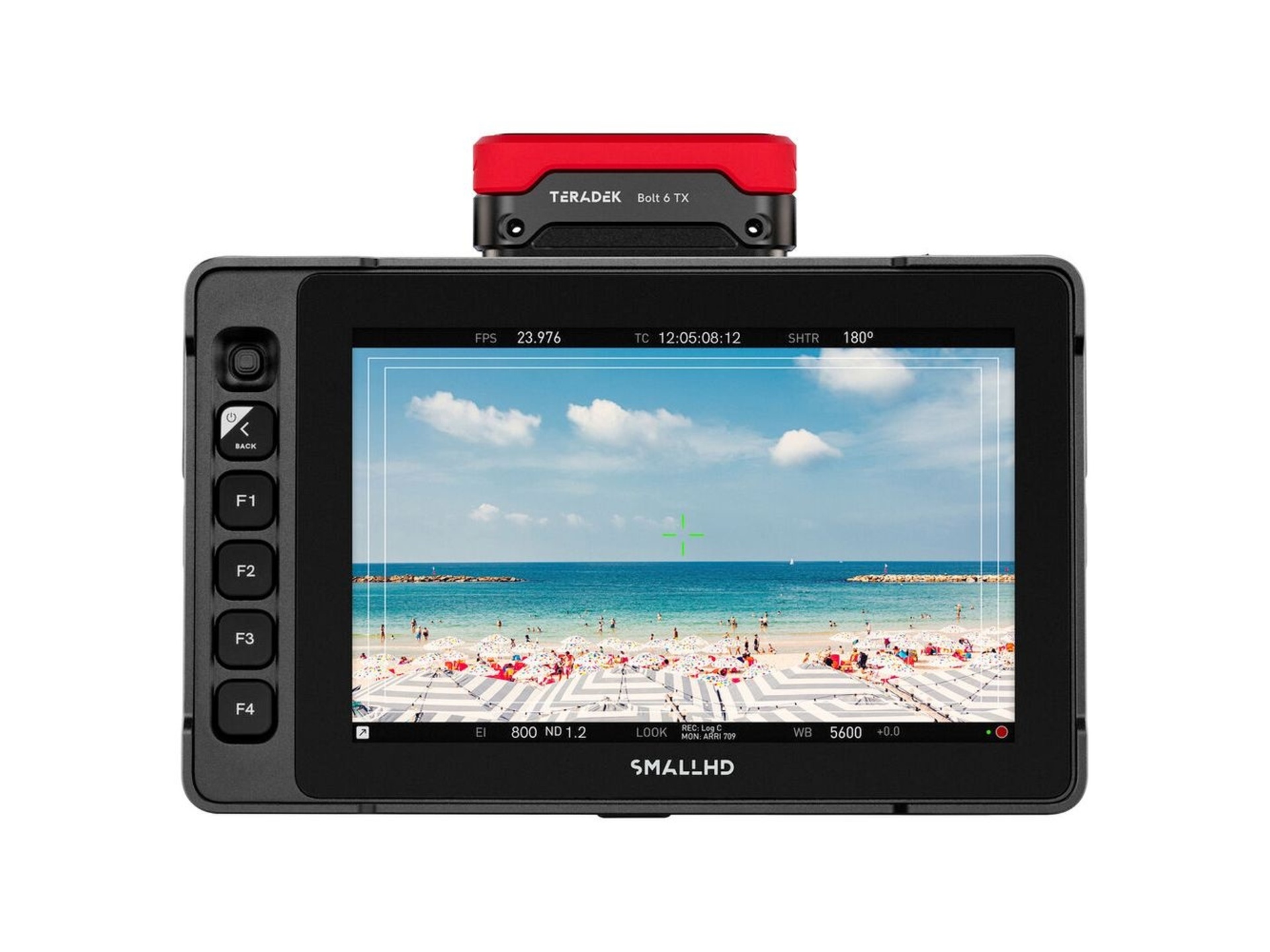

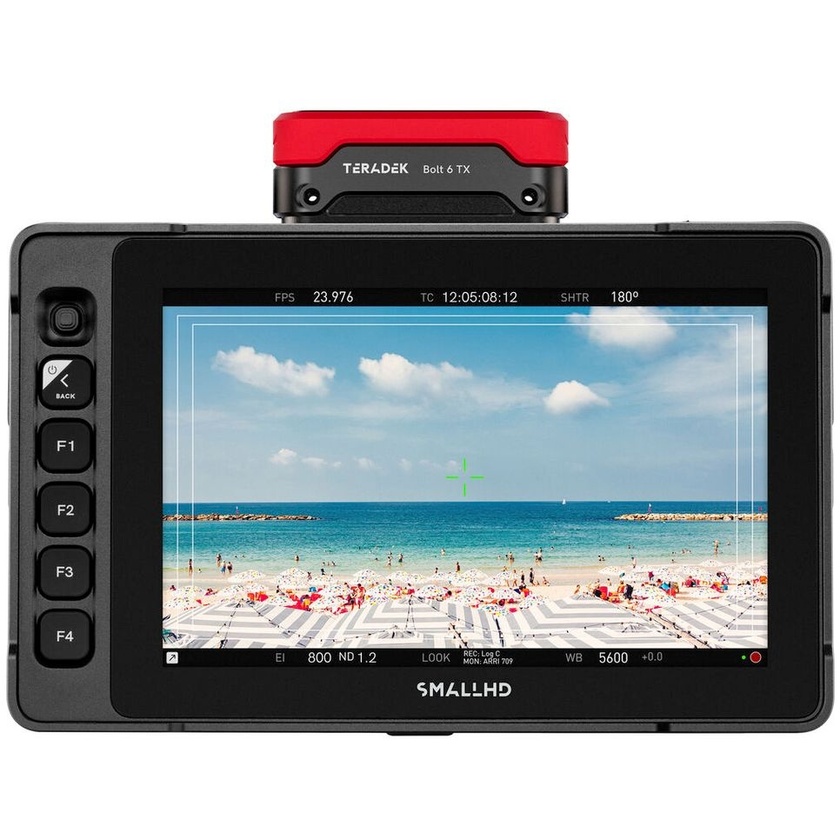

SmallHD ULTRA 7 Bolt 6 TX 750 Monitor

Product #113650 | SKU 33.1.16-0729 | Small HD
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Our Price $7,099 AUD
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 working days. Deliver to New South Wales for $5.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 3 - 4 working days
Click & Collect

Features

  • 7" 1920 x 1080 Touchscreen Display
  • Built-In Bolt 6 Wireless Transmitter
  • 6G-SDI & HDMI Inputs/Outputs, 4K I/O
  • 6 GHz Wireless Transmission up to 750'
  • Bright 2300 cd/m² LCD Panel
  • 10-Bit 4:2:2 DCI-P3 Colour Gamut

Description

Introducing the SmallHD ULTRA 7 Bolt 6 TX 750 Monitor - a must-have addition to your production rig. This powerful monitor combines the ULTRA 7 bright 7" on-camera display with the integrated Bolt 6 transmitter from Teradek. With a remarkable 2300 cd/m² brightness and a 1920 x 1080 touchscreen LCD, this monitor delivers exceptional clarity. It offers HDMI and 6G-SDI inputs/outputs that support up to 4K resolution, along with camera control options, tactile buttons, and 10-bit 4:2:2 Rec. 709 colour processing.

What sets this monitor apart is its built-in transmitter module. This module enables wireless image transmission up to 750', making it incredibly convenient. Additionally, with a separately available receiver module and connection kit, you can enjoy optional wireless camera control. The transmitter module operates on the 6 GHz wireless band and can transmit to up to six Teradek Bolt 6 series receivers. It is also compatible with 5 GHz receivers, such as the Teradek Bolt 4K series. Featuring a robust internal V-antenna, this monitor ensures high-quality, low-latency transmissions. Moreover, its unibody design is water and dust resistant, adding durability to its impressive list of features.

Specifications

Key Specs
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1080
Touchscreen Yes
Video I/O 1x BNC (6G-SDI) Output
1x HDMI (Unspecified Signal) Output
1x BNC (6G-SDI) Input
1x HDMI (Unspecified Signal) Input
Media/Memory Card Slot Single Slot: SD (Unspecified Type)
Video Format SDI (10-Bit 4:2:2)
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/24/23.98
DCI 2K: 60/59.94/50/48/47.95
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 100/60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50
HDMI (8/10/12/16-Bit 4:4:4)
UHD 4K: 30
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i: 240/239.76/120/119.88/60/59.94
576i: 200/100/50
Built-In Battery Yes
Display
Panel Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 2300 nits / cd/m2
Contrast Ratio 1000:1
Bit Depth / Colour Support 10-Bit (1.07 Billion Colours)
Pixels Per Inch (ppi) 314 ppi
Colour Gamut 95% DCI-P3
98% Rec. 709
Image Controls Blue Only, False Colour, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform
Inputs / Outputs
Video I/O 1x BNC (6G-SDI) Output
1x HDMI (Unspecified Signal) Output
1x BNC (6G-SDI) Input
1x HDMI (Unspecified Signal) Input
Embedded Audio HDMI
SDI
Audio I/O 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker No
Power I/O 1x LEMO 0B 2-Pin (2.1 A / 34 VDC) Input
Other I/O 1x LEMO 5-Pin (Camera Control) Output
1x RJ45 (Camera Control) Output
Media/Memory Card Slot Single Slot: SD (Unspecified Type)
Encryption No
Wireless
Wireless Range 750' / 228.6 m
Wi-Fi Yes
Bluetooth No
Mobile App Compatible No
Format Support
Video Format SDI (10-Bit 4:2:2)
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/24/23.98
DCI 2K: 60/59.94/50/48/47.95
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 100/60/59.94/50/30/29.97/25/24/23.98
480i: 59.94
576i: 50
HDMI (8/10/12/16-Bit 4:4:4)
UHD 4K: 30
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
480i: 240/239.76/120/119.88/60/59.94
576i: 200/100/50
Audio Format 2-Channel
Power
Input Power 10 to 34 VDC at 2.1 A
Built-In Battery Yes
Environmental
Environmental Protection Dust-Resistant (IP53)
Certifications COE, FCC, IC, RoHS
General
Material of Construction Aluminium
Weight 2.0 lb / 900 g

In The Box

  • SmallHD ULTRA 7 Bolt 6 TX 750 Monitor
  • SmallHD D-Tap to 2-Pin Power Cable (36")

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: SmallHD ULTRA 7 Bolt 6 TX 750 Monitor
  • Manufacturer: Small HD
  • Model: 33.1.16-0729
  • SKU: 33.1.16-0729
  • RM Product #: 113650
  • Screen Size: 7"
  • Connection: HDMI
  • Screen Resolution: 1920 x 1080
  • Connection: BNC
  • Warranty: 1 year manufacturer warranty
