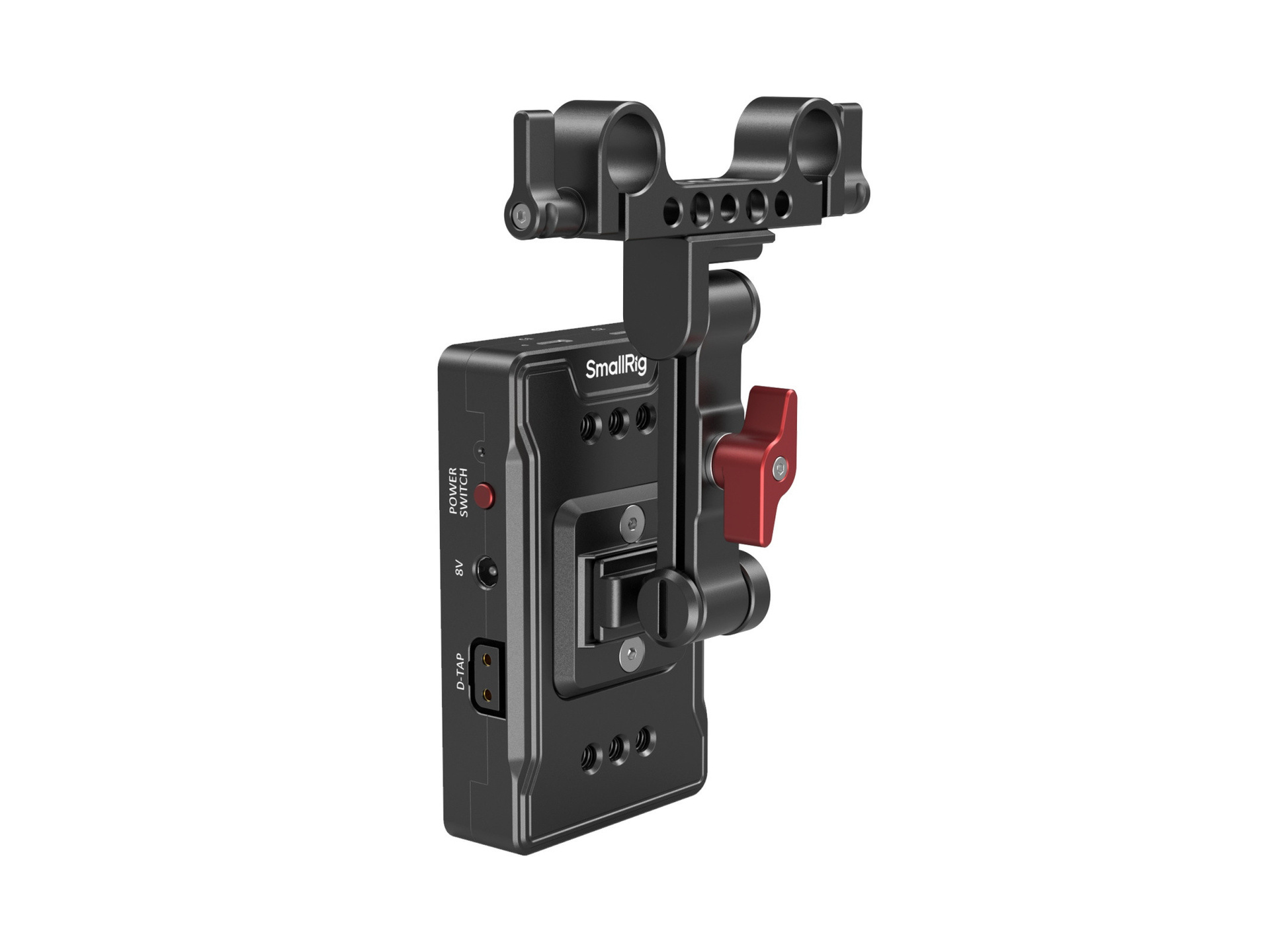

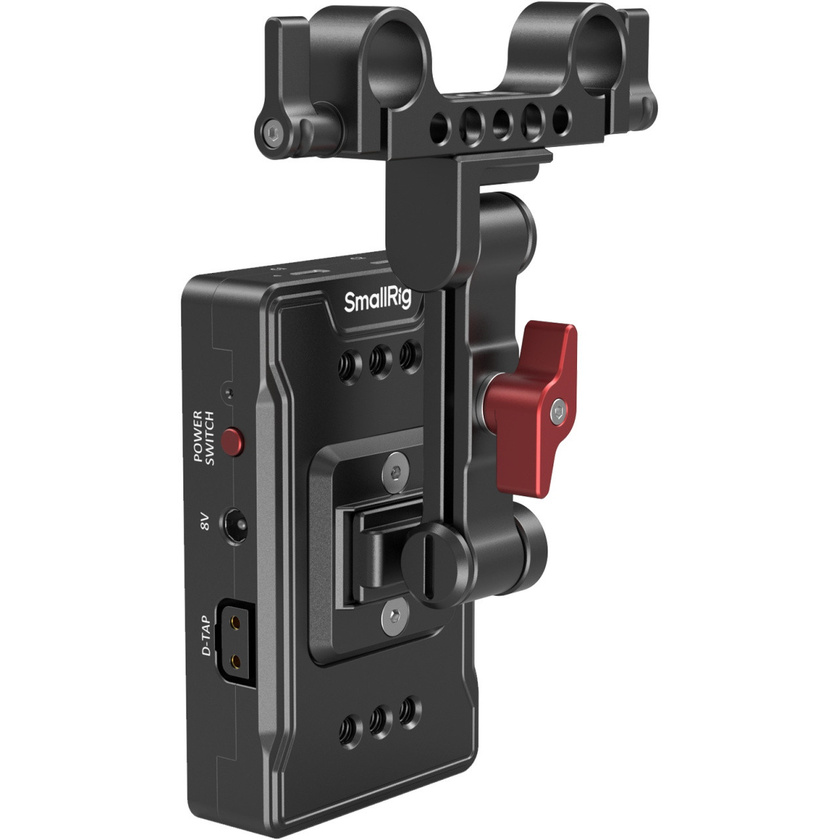

The SmallRig 3499B V Mount Battery Adapter Plate with Extension Arm (Basic) can be quickly attached to a 15mm LWS rod system using the adjustable extension arm with a dual rod clamp. This battery adapter plate features a standard V-Mount that is compatible with most V-Mount batteries. It incorporates six 1/4"-20 threaded holes and ten M4 threaded holes on the back, as well as five 1/4"-20 threaded holes on the top and bottom, allowing for the attachment of a dual rod clamp and other accessories.
It is equipped with two USB-C input / output ports (65W Max.) that support PD protocol, and one USB-A output port, that supports QC protocol, for fast charging and discharging. Additionally, it has two D-Tap input / output ports (14.8V) and two DC output ports (DC5521 8V x 1 / DC5525 12V x 1) for versatile power solutions.
The power and charging mode indicator lights show the working status and whether fast or slow charging is in effect. The power on / off button can control multiple ports simultaneously. Furthermore, the adapter plate is constructed from high-strength aluminum alloy, providing robust durability and excellent heat dissipation.
Note:
- Do not use it in a damp environment to avoid short circuits.
- When the indicator light keeps flashing, it means the working temperature exceeds 65℃ / 149°F. Please suspend its use.
- Please do not drop the product, use it under high temperatures or when a short circuit occurs.
USB-C Charging / Discharging Indicator Light:
- Orange Light: Slow charging / discharging
- Blue Light: Fast charging / discharging
- Power Indicator Light:
- Light On: Powered on;
- Light Off: Powered off;
- Flashing Light: Working temperature exceeds 60℃ / 140°F
- Power On / Off Button:
- Power On: Tap the button;
- Power Off: Press the button for 2 seconds
- USB-C, D-Tap, and DC Output Unavailable after Powering Off
- D-Tap and USB-C Input Available after Powering Off
