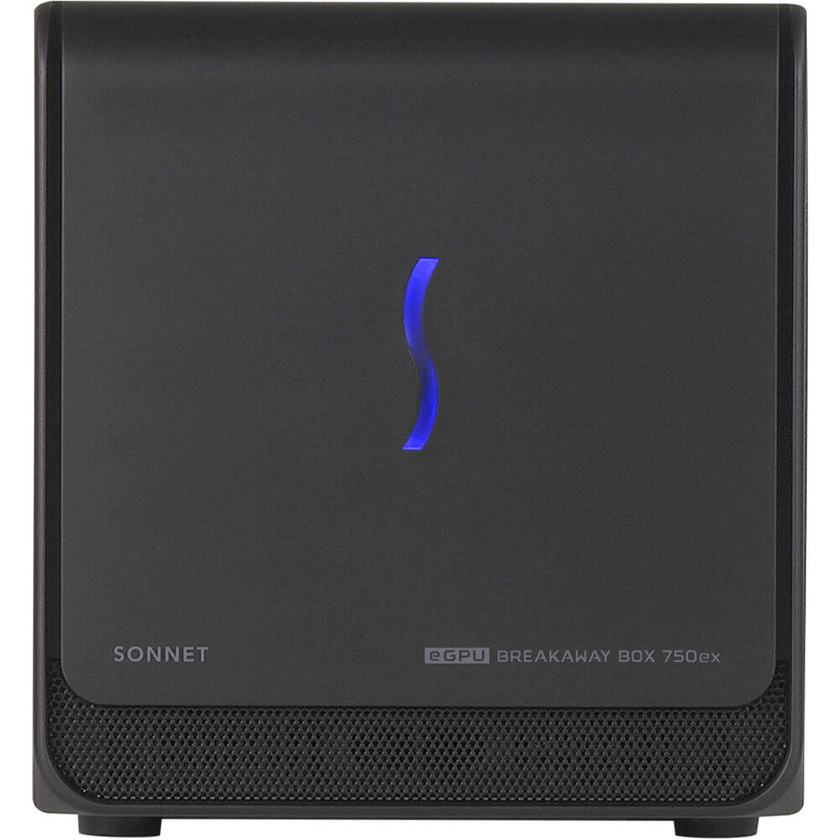

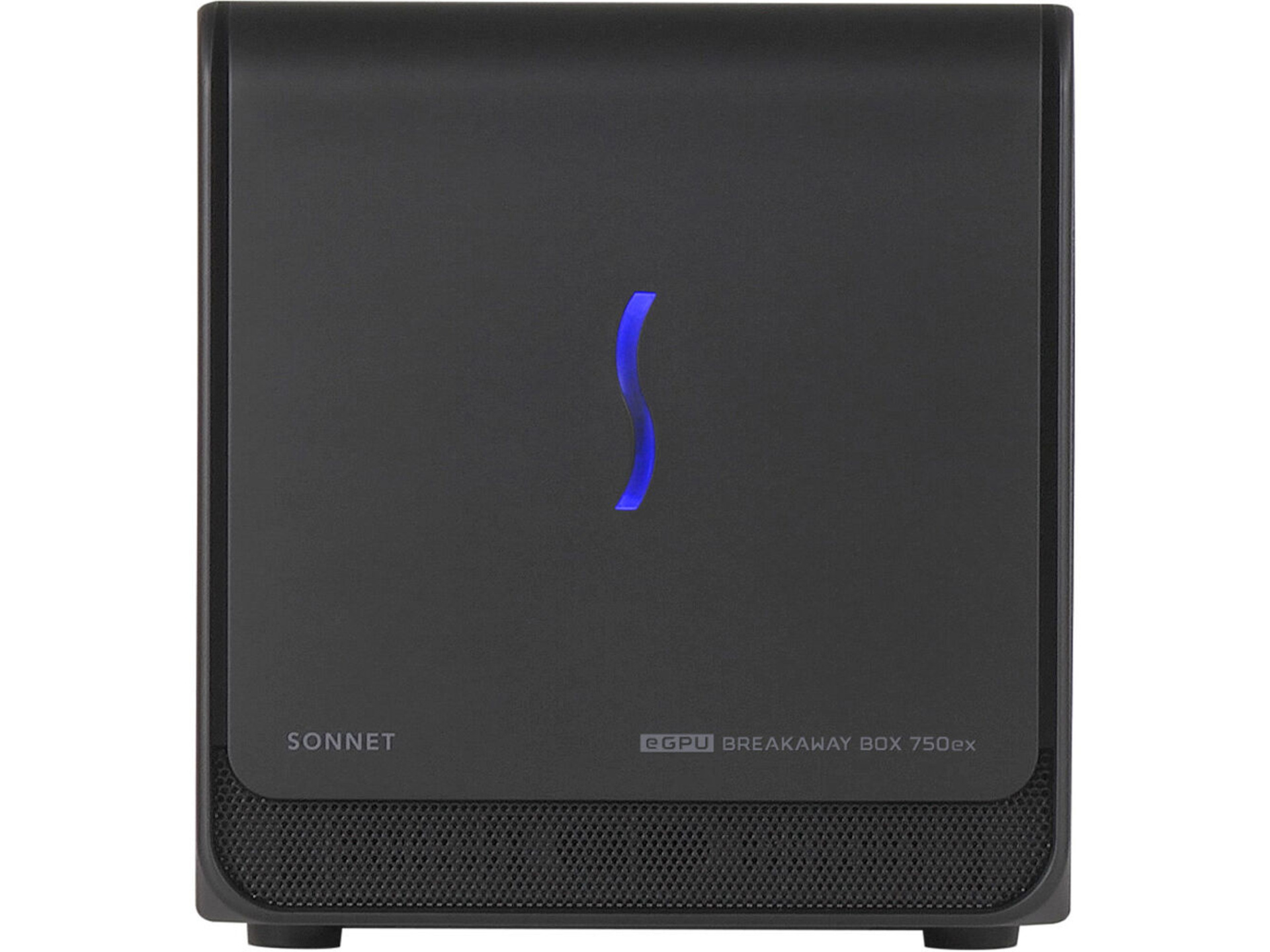

Sonnet eGPU Breakaway Box 750ex Enclosure

Product #113875 | SKU GPU-750WEX-TB3 | Sonnet
Usually ships in 2 - 3 weeks what does this mean?
Our Price $1,059 AUD
Usually ships in 2 - 3 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 2 - 3 weeks. Deliver to New South Wales for $7.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 2 - 3 weeks
Click & Collect

Features

  • 1 x PCIe 3.0 x16 Slot
  • 1 x Thunderbolt 3 Port
  • Supports 2-Slot Wide, Full Length GPU
  • Built-In 750W Power Supply
  • 85-Watt Power Delivery
  • 4 x USB 3.2 Gen 1Type-A Ports

Description

Render projects and run other hardware-demanding applications with the Sonnet eGPU Breakaway Box 750ex Enclosure. This external enclosure is designed to support various PCIe 3.0 x16 equipped graphics cards, allowing you to transform your Thunderbolt 3 enabled notebook into a powerful workstation for photo and video editing. The 750ex eGPU is an excellent option for notebook users who want to unleash their creativity or enjoy graphically intensive games without the need for a completely new system.

Equipped with a 750-watt power supply, the enclosure provides two 8-pin (6+2 pin) connectors, enabling you to harness the power of high-performance GPUs while being able to charge your notebook with 85-watt power delivery. The 750ex supports a wide range of graphics cards, including two-slot, full-length cards like the AMD Radeon VII, RX, RX Vega, NVIDIA GeForce RTX, TITAN, and Quadro models. Additionally, the enclosure features four USB 3.1 Gen 1 Type-A ports for connecting external drives and controllers, as well as an RJ45 Gigabit Ethernet port for a wired network connection.

Specifications

Key Specs
Expansion Slots 1x PCIe 3.0 x16
System Connection Thunderbolt 3
Inputs/Outputs 1x USB-C (Thunderbolt 3)
4x USB-A
1x RJ45 (Gigabit Ethernet)
PCIe I/O 2x 6+2-Pin
General
Expansion Slots 1x PCIe 3.0 x16
Supported PCI Card Sizes Full-Height, Full-Length, Double-Width
Maximum GPU Length 12.3" / 312 mm
System Connection Thunderbolt 3
Inputs/Outputs 1x USB-C (Thunderbolt 3)
4x USB-A
1x RJ45 (Gigabit Ethernet)
Data Transfer Rates Thunderbolt 3: 40 Gb/s
OS Compatibility Windows 10 to 11
macOS 10.13.6 to 12.2
Power
Power Source Type 1x 750 W Internal PSU
PCIe I/O 2x 6+2-Pin
Input Power 100 to 200 VAC, 50 / 60 Hz
Port Power Delivery 85 W Max
Cooling
Fans 1
Environmental
Operating Temperature 32 to 95°F / 0 to 35°C
Physical
Form Factor Desktop
Certifications RoHS 3, IEC62368-1, IEC62368-2
Status Monitoring LED Indicator
Dimensions 13.38 x 8 x 7.25" / 33.99 x 20.3 x 18.41 cm
Weight 7.1 lb / 3.2 kg

In The Box

  • Sonnet eGPU Breakaway Box 750ex Enclosure
  • Power Cable
  • Thunderbolt 3 Cable

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Sonnet eGPU Breakaway Box 750ex Enclosure
  • Manufacturer: Sonnet
  • Model: GPU-750WEX-TB3
  • SKU: GPU-750WEX-TB3
  • RM Product #: 113875
