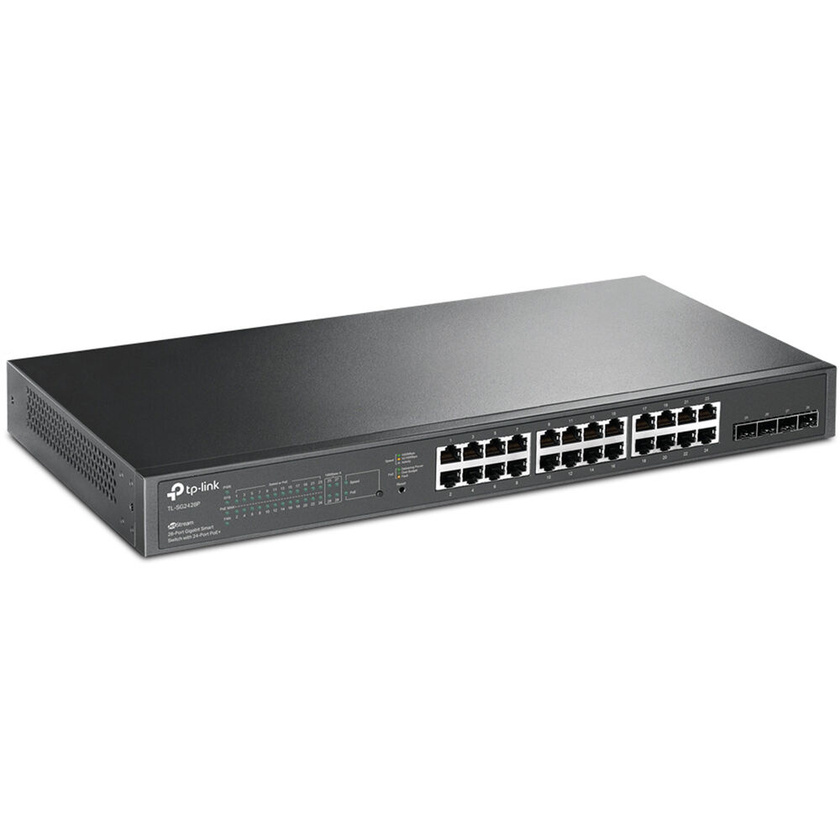

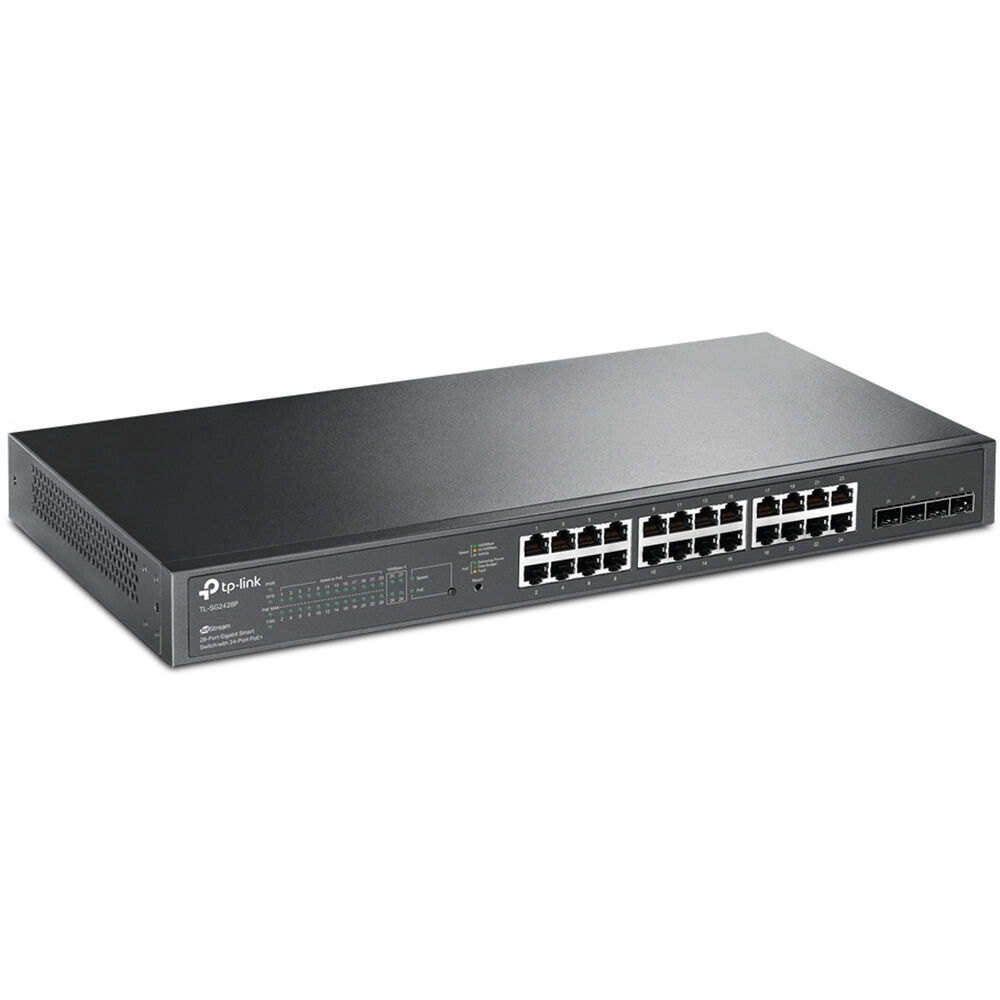

TP-Link JetStream TL-SG2428P 24-Port PoE+ Compliant Gigabit Managed Switch with SFP

Product #107630 | SKU TL-SG2428P | TP-Link
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?
Not currently for sale
Contact us for more information
In Stock with Supplier Usually ships in 2 - 3 working days what does this mean?

Features

  • 24 x Gigabit Ethernet PoE+ Ports
  • 4 x Gigabit SFP Ports
  • 56 Gb/s Switching Capacity
  • 41.7 Mpps Forwarding Rate
  • Rack-Mountable Design
  • Up to 250W Power Budget

Description

The TP-Link JetStream TL-SG2428P 24-Port PoE+ Compliant Gigabit Managed Switch with SFP integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

For general surveillance, TP-Link has designed a variety of PoE Switches to meet the requirements of most IPCs. Many robust features provide value well beyond basic networking needs, creating a versatile and reliable surveillance network to grow your business.

TP-Link Omada allows hotels to build reliable WiFi networks. Hotel WiFi network solutions including network topology, design, features, installation, and products are introduced.

Due to its reliable, scalable, and secure network solution, TP-Link has been widely acknowledged by global customers in the Education market ranging from infant schools with a few APs up to colleges and universities with hundreds of APs.

Specifications

Interfaces
Inputs/Outputs 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10/100/1000 Mb/s Gigabit SFP
Protocols
Layer Services Supported Layer 2 Support
Supported Protocols Auto-MDIX/MDI
DHCP Server
DoS
IGMP Snooping
IPv4
IPv6
Link Aggregation
MAC Filtering
RADIUS
SNMPv1
SNMPv2c
SNMPv3
Queueing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 8K
VLAN Groups 4000
Security
Security Features DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
Access Control List 230
Standards
Supported IEEE Standards 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3i, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 41.7 Mpps
Switching Bandwidth 56 Gb/s
Priority Queues 8
Packet Buffer 4.1 Mb
Electrical
Power Draw 308.6 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 250 W
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Cooling System Fan
Material of Construction Metal
Rack Form Factor 1 RU
Dimensions 17.3 x 8.7 x 1.7" / 440 x 220 x 44 mm

In The Box

  • TP-Link JetStream TL-SG2428P 24-Port PoE+ Compliant Gigabit Managed Switch with SFP
  • Power Cable
  • Rackmount Kit
  • Rubber Feet

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: TP-Link JetStream TL-SG2428P 24-Port PoE+ Compliant Gigabit Managed Switch with SFP
  • Manufacturer: TP-Link
  • Model: TL-SG2428P
  • SKU: TL-SG2428P
  • RM Product #: 107630
