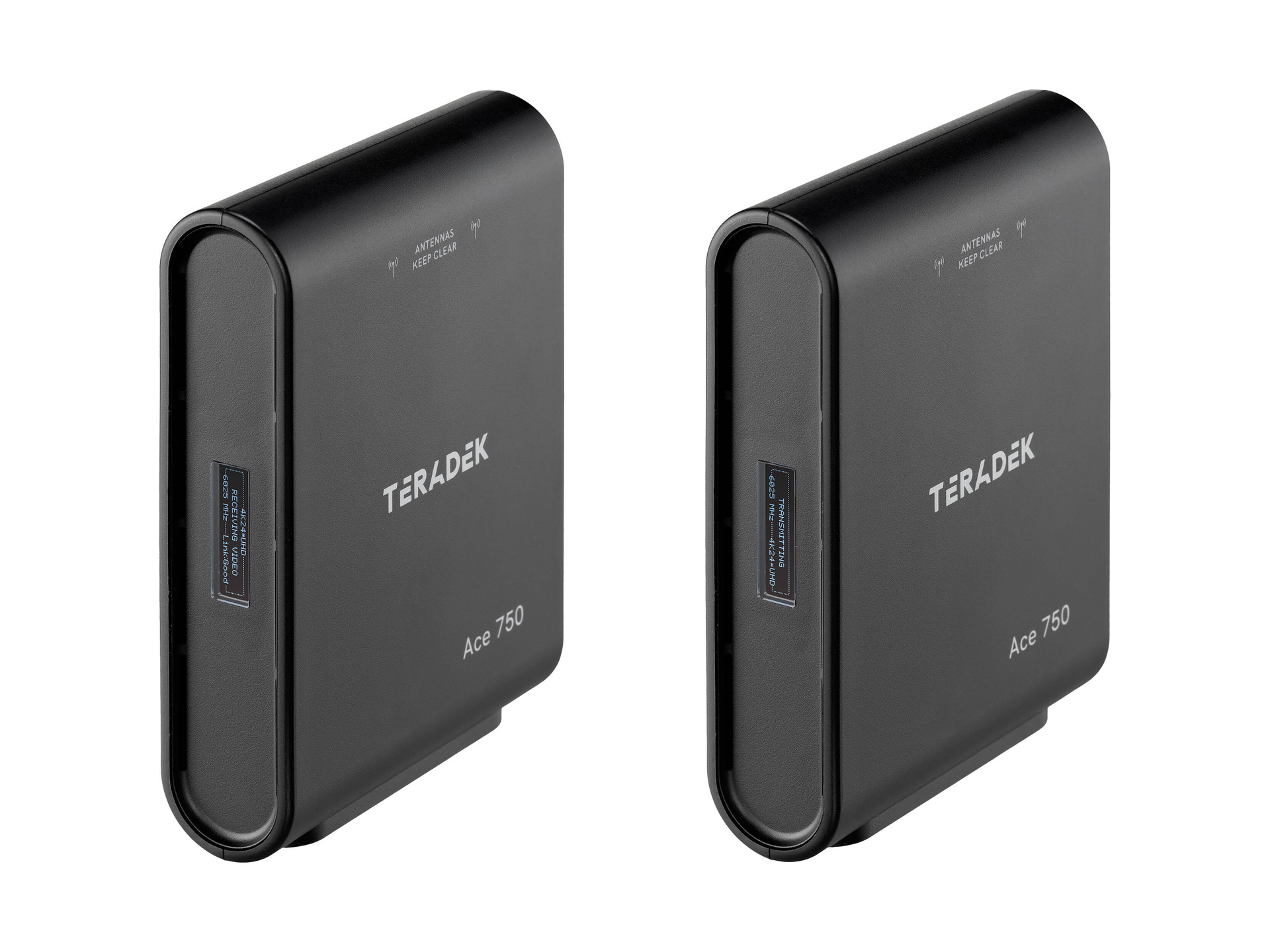

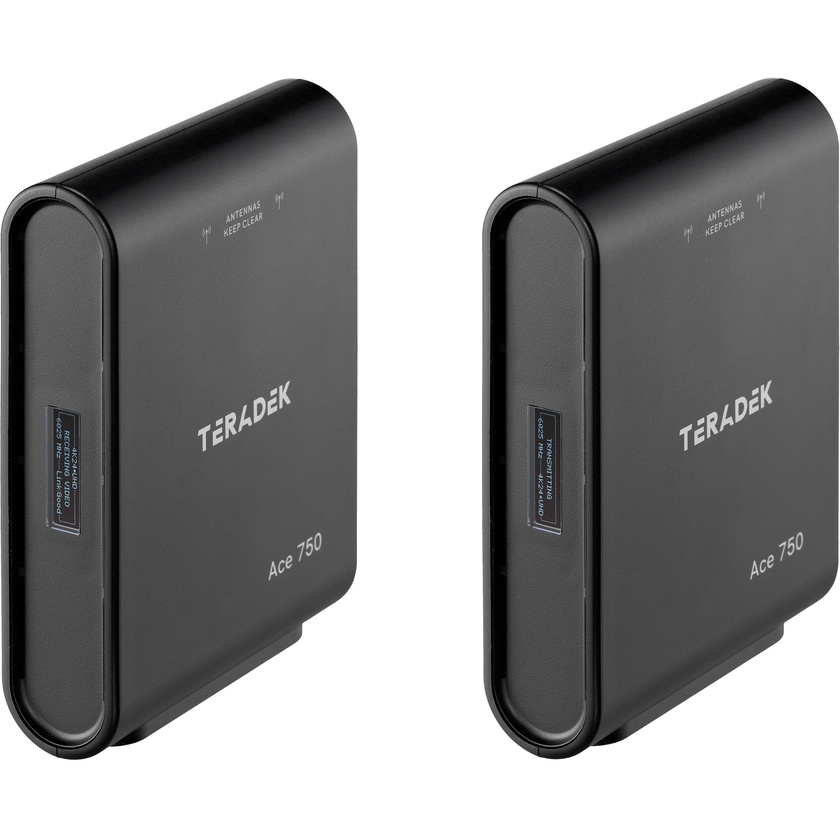

The Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set comprises of both a Ace 750 transmitter unit and an Ace 750 receiver unit. With this system, you have the ability to transmit and receive visually lossless, uncompressed 10-bit 4K30 HDR video signals from a camera without any delay up to a maximum of 750' line of sight. The Ace 750 is compatible with the 5 and 6 GHz frequency bands, allowing it to be used with other Bolt systems like the Bolt 6 and Bolt 4K, as well as SmallHD monitors that have integrated Bolt TX or RX units. Additionally, the built-in antennas contribute to a more compact design and easier installation, while the units themselves are equipped with HDMI connectors.
Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set
In Stock with Supplier
Usually ships in 2 - 3 working days
Our Price
$1,959
AUD
In Stock with Supplier
Usually ships in 2 - 3 working days
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
New South Wales
for $4.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
3 - 4 working days
Click & Collect
Features
- Includes Transmitter and Receiver Units
- Transmit/Receive up to 4K30 HDR Video
- Compatible with Bolt 4K and Bolt 6 Units
- Transmission up to 750' Line of Sight
- HDMI Input/Output, Built-In Antennas
- Transmit to up to 6 Receivers/Devices
Description
Specifications
| Teradek Ace 750 Wireless Video Transmitter | |
| Key Specs | |
| Video I/O | 1x HDMI 1.4b Input |
| Embedded Audio | HDMI: 2-Channel |
| Latency | < 0.01 ms |
| Video Format | HDMI (10-Bit 4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 |
| Power Consumption | 6 W |
| Mounting | 1x 1/4"-20 Female |
| Inputs / Outputs | |
| Antenna I/O | No |
| Video I/O | 1x HDMI 1.4b Input |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | No |
| Power I/O | 1x Barrel Input |
| Other I/O | 1x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 19 dBm |
| Wi-Fi | No |
| Bluetooth | Yes |
| Mobile App Compatible | Yes: Android & iOS App Name: Bolt Manager Functionality: Adjust Settings, Remote Control, Setup |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI (10-Bit 4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| Power | |
| Input Power | 7 to 18 VDC |
| Power Consumption | 6 W |
| Mounting | |
| Mounting | 1x 1/4"-20 Female |
| Environmental | |
| Environmental Protection | No |
| Certifications | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| General | |
| Material of Construction | Plastic |
| Dimensions | 4.4 x 3.2 x 1" / 112 x 81 x 25 mm |
| Weight | 6.6 oz / 187 g |
| Teradek Ace 750 HDMI Wireless Video Receiver | |
| Key Specs | |
| Video I/O | 1x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Latency | < 0.01 ms |
| Video Format | HDMI (10-Bit 4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 |
| Power Consumption | 6 W |
| Mounting | 1x 1/4"-20 Female |
| Inputs / Outputs | |
| Antenna I/O | No |
| Video I/O | 1x HDMI 1.4b Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | No |
| Power I/O | 1x Barrel (18 VDC) Input |
| Other I/O | 1x USB-C (Firmware) Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 17 dBm |
| Wi-Fi | No |
| Bluetooth | Yes |
| Mobile App Compatible | Yes: Android & iOS App Name: Bolt Manager Functionality: Adjust Settings, Remote Control, Setup |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI (10-Bit 4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| Power | |
| Input Power | 7 to 18 VDC |
| Power Consumption | 6 W |
| Mounting | |
| Mounting | 1x 1/4"-20 Female |
| Environmental | |
| Environmental Protection | No |
| Certifications | No |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| General | |
| Material of Construction | Plastic |
| Dimensions | 4.4 x 3.2 x 1" / 112 x 81 x 25 mm |
| Weight | 6.6 oz / 187 g |
In The Box
- Teradek Ace 750 Wireless Video Transmitter
- Teradek Ace 750 HDMI Wireless Video Receiver
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set
- Manufacturer: Teradek
- Model: 53.10-2240
- SKU: 53.10-2240
- RM Product #: 113577
- Warranty: 1 year manufacturer warranty
