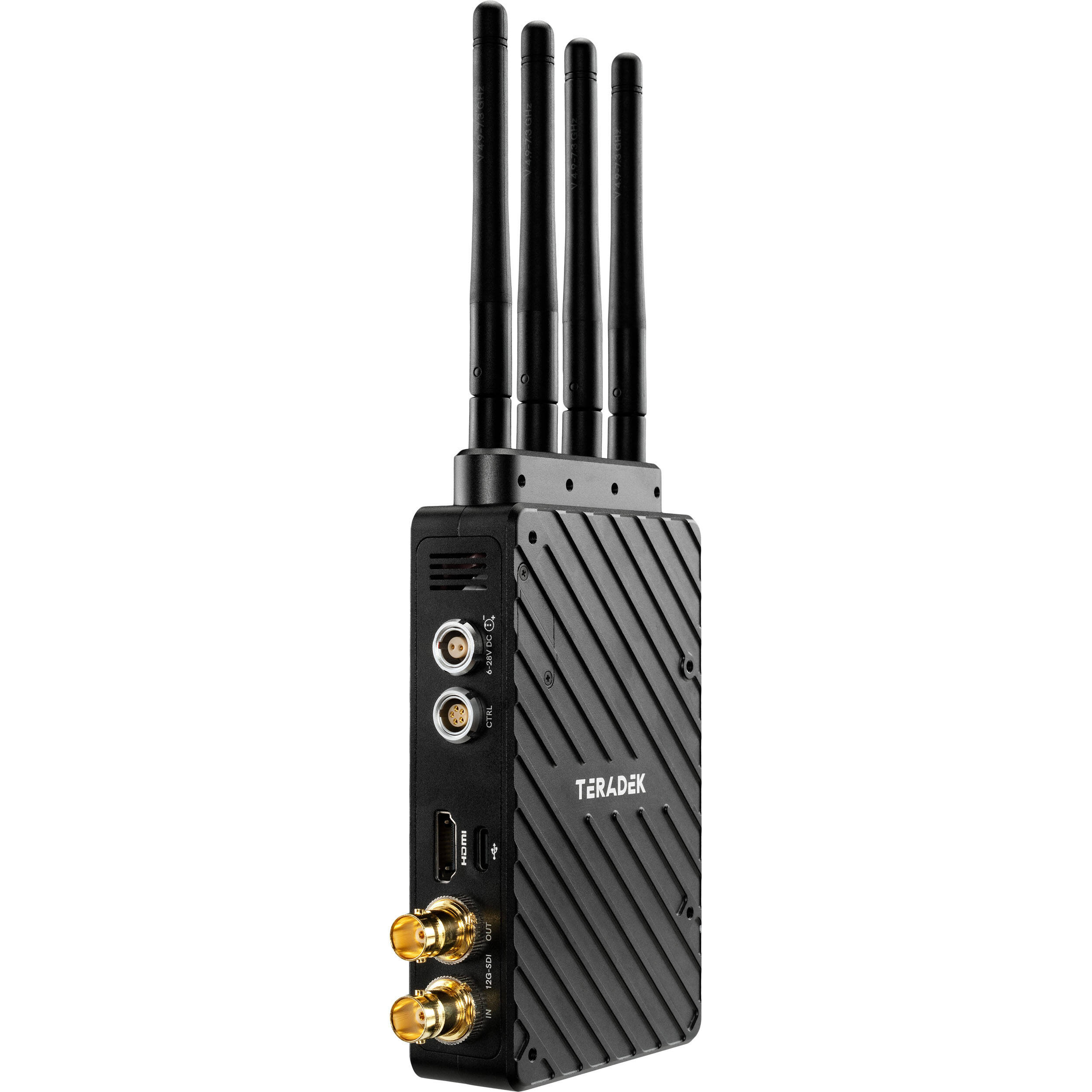

Transmit lossless HD video up to 750'(228m) with the Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter (V-Mount). With a smaller and lighter form factor than the Bolt 4K model, this transmitter can input up to DCI 4K60 video over HDMI or 12G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. It also features a 50% quieter operation with its redesigned cooling system. The transmitter unit provides a powerful signal that can travel up to a 750'(228m) line of sight. It features a bright OLED display and 12G-SDI loop output, can be powered using its V-mount battery plate, and supports camera control with optional firmware via its 5-pin USB output.
The transmitter supports the transmission of up to DCI 4K60 video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keep your video clean no matter how many devices are using the wireless spectrum. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.
Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, both providing a spectrum analyser, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
Key Features
- Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
- Smaller, lighter, and 50% quieter than previous models
- Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
- Input and output 12G-SDI and HDMI video and transmit up to 4K60 video; 12G-SDI loop output
- SDI Eye Pattern Tool to check SDI cable integrity
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Powered via DC input or the V-mount battery plate
- Improved "long-range" mode
- Transmit to up to six Bolt 4K or Bolt 6 series receivers
- AES-256 encryption support
- Wireless iOS/Android app via Bluetooth features a spectrum analyser and remote configuration
- Power via 2-pin DC input or included V-mount battery plate
