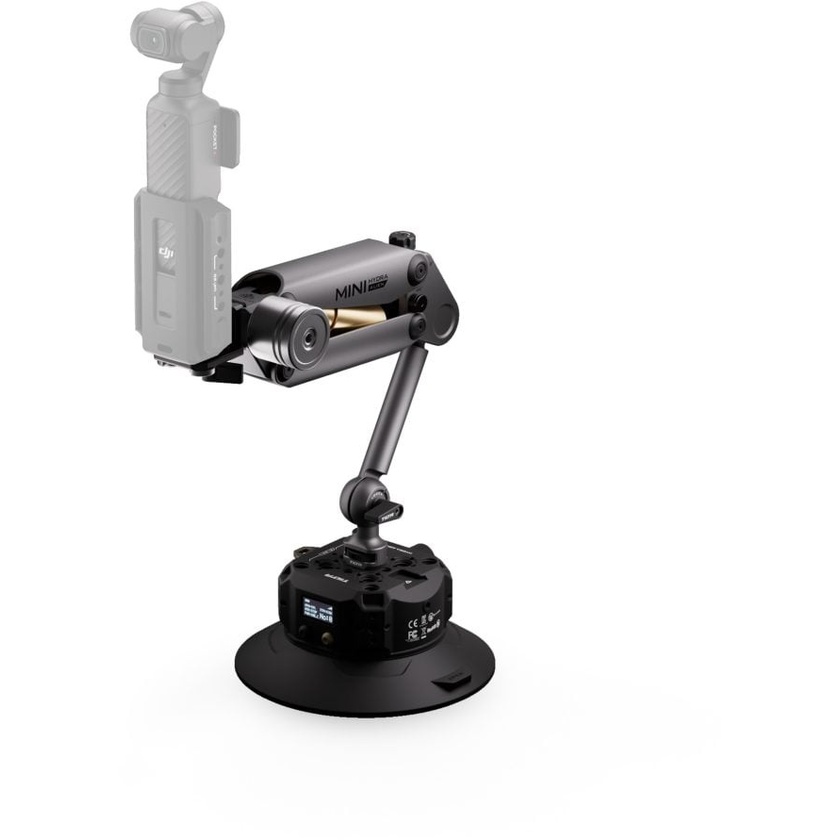

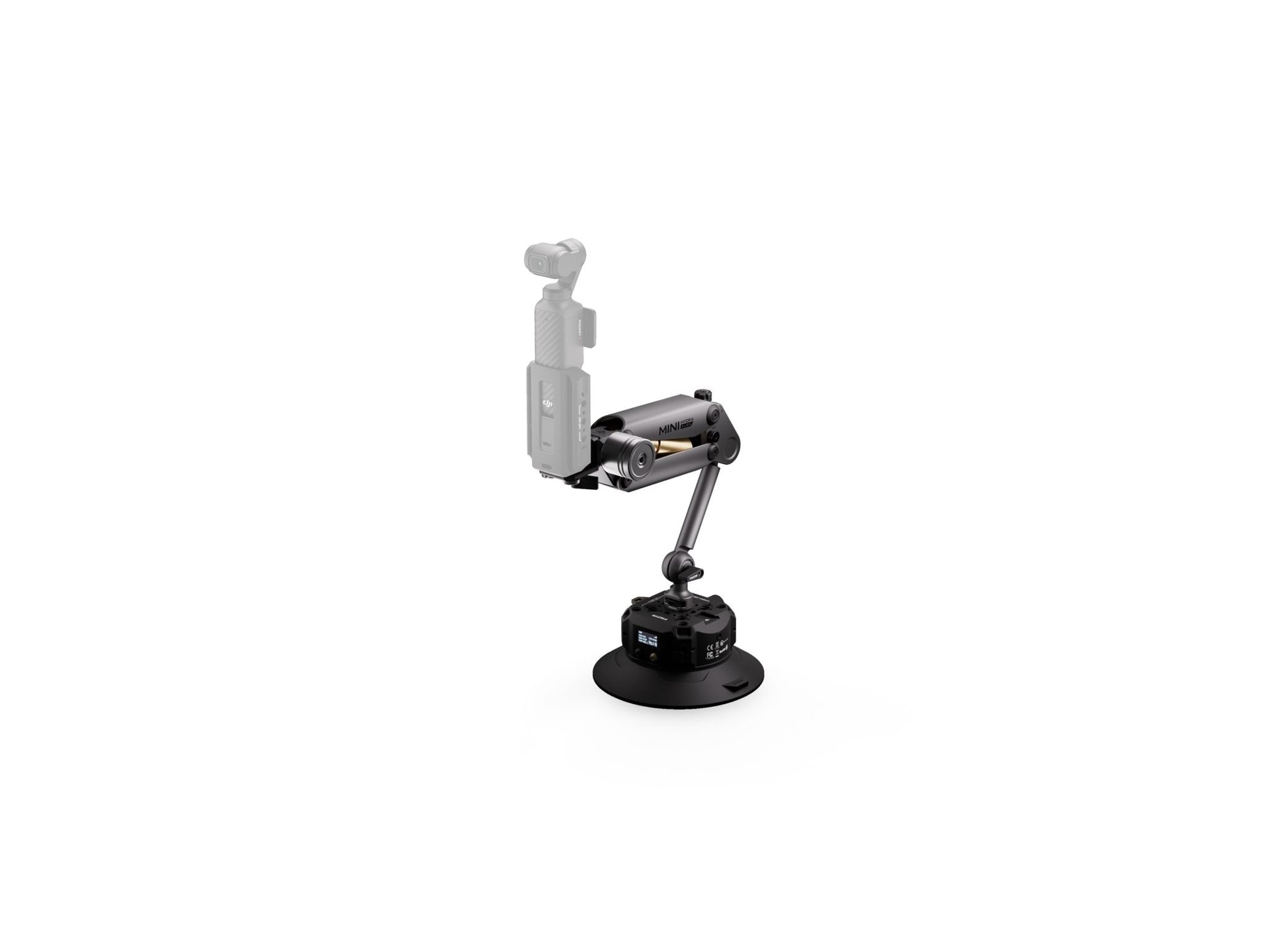

The Tilta Hydra Alien Mini Electronic Suction Cup (6") Kit (Titanium Gray) builds on the intelligent design of the 4.5″ version with a larger pad and significantly increased holding power for more flexible mounting configurations.
The integrated air-pressure monitoring system samples pressure 1000 times per second, continuously analyzing suction performance and displaying real-time status information on the wireless monitor’s screen. (not included)
If the system detects a drop in pressure, the internal motor automatically restores suction by pumping out additional air, helping prevent the suction cup from detaching during use.
The larger 6″ design delivers up to 100% greater suction force compared to the 4.5″ model, providing a more secure connection for heavier payloads or challenging environments.
This miniature arm is compatible with smaller camera systems such as the DJI Action 3/4, DJI Pocket 3, Insta360 X4/X3, and any other system that weighs up to 1.32lbs including Smartphones with our Khronos Ecosystem.
The Hydraulic Damping System utilizes automotive-grade oil imported from the US for track-level performance and is easy for users to add additional oil if needed.
Included with the kit is an extender arm which is adjustable on both axes, allowing users to better position the arm for various configurations and vehicle placements.
The upgraded high-performance motor achieves full suction in as little as 2 seconds, representing a 200% faster attachment time compared to the previous generation. Despite the increased power, the motor operates quietly at under 60dB, making it suitable for professional production environments.
The system also automatically adapts to high-altitude conditions, ensuring reliable suction performance even when atmospheric pressure changes.
Powering the system is a long lasting internal battery that can operate for up to 19 hours under normal conditions which is approximately 3 hours longer than the 4.5″ version. The battery also supports 5V/1A USB-C external power input, allowing for extended operation when connected to external power sources.
For quick and convenient removal, the suction cup now features a dedicated release button. Suction can also be released wirelessly, allowing operators to detach the mount remotely when needed.
Durability has also been improved with IPX5 water resistance, allowing the suction cup to operate reliably in light rain and other challenging outdoor conditions.
The modular mounting system supports multiple mounting options via 1/4″-20 and 3/8″-16 threads with locating points. Different mounts can be purchased tro support Hydra systems like the Alien, Alien Pro, Alien Mini.
More unique mounts are also available such as the Manfrotto Ball Head Mount and the Baby Pin Mount which allows the suction cup to support lights.
For delicate surfaces, an optional “No-Mark” Suction Pad can be used to help prevent marks from forming on the mounting surface. When using this accessory, the maximum recommended payload is 66 lbs (30 kg).
ELECTRONIC SUCTION CUP SAFETY NOTICE:
The Electronic Suction Cup, like other suction cups, has the potential to leave marks on various surfaces. It is recommended to take precautions such as using protective film or other materials to protect the surface being used. Using these suction cups in direct sunlight or in hotter environments can increase the chance of leaving a mark. It is not recommended to use these suction cups with wrapped vehicles.
It is recommended to use this suction cup on a flat surface with the weight of the arm balanced over the center of the suction cup. Extending the arm past the suction cup or side mounting the suction cup can increase the risk of failure. In these situations we recommend taking additional precautions such as further securing the system with Ratchet Straps or Safety Chains.
Regardless of additional safety measures, we always recommend pushing down the suction cup when first attaching it to any surface. The suction cup should be as flat against the surface as possible and should look noticeably flatter than when not attached. Attaching the suction cup without applying physical force to it can greatly increase the chance of accidental disconnection.
