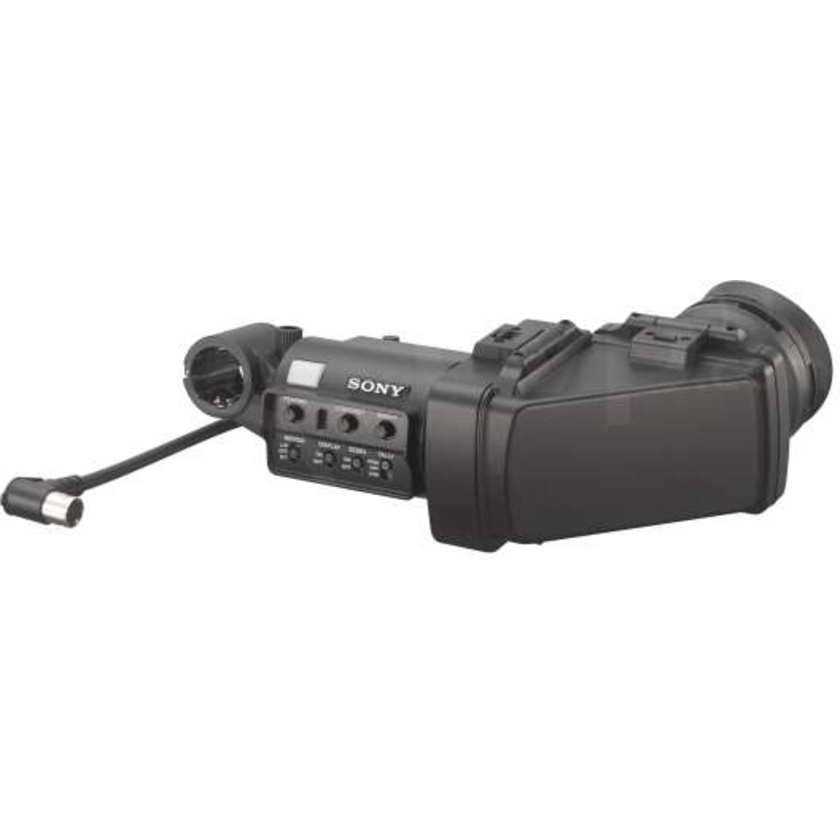

Sony HDVF-L10 3.5" Color LCD HD Viewfinder

Product #85160 | SKU HDVF-L10 | Sony
This product is no longer available what does this mean?
Not currently for sale
Contact us for more information
This product is no longer available what does this mean?

Features

  • 5" Colour LCD QHD Viewfinder
  • Uses round-type 20-pin viewfinder interface
  • Switchable display mode

Description

Sony

HDVF-L10

3.5" Color LCD HD Viewfinder

This Sony 3.5" Color LCD HD Viewfinder is for HDVF Compatible Cameras and Camcorders. The 3.5" Color LCD HD Viewfinder for cameras has a round-type 20-pin viewfinder interface. Applicable cameras output the higher resolution QHD signal to this viewfinder, and operators can see the LCD directly because the optical loupe and the elbow parts can be flipped-up.

In addition to the normal display mode, this viewfinder can switch over to another display mode that shows the reduced-size screen with tally display, surrounding on it. You can see the whole screen and tally easily when your eye is away from the eye-cup.

Key Features:

  • 5" Colour LCD QHD Viewfinder
  • Uses round-type 20-pin viewfinder interface
  • Switchable display mode

Specifications

Power supply 10.5 to 17.0 V DC (supplied by the camera)
Power consumption 3.3 W
Operating temperature -5℃ - 45℃
Storage temperature –20C to +60C (–4 F to +140 F)
Mass 700 g
External dimensions 201mm (8 in) x 255mm (10 1/8 in) x 60mm (2 3/8 in) 89mm (3 5/8 in) 3.5-inch colour TFT transflective LCD Image display area dimensions 76.8 × 43.2 mm (31/8 × 13/4 inches) (H/V, 16:9 aspect ratio)
Brightness 200 cd/m2 (typical) (when eyepiece is attached)
Resolution 500 lines or more
Colour temperature 6500 K (typical)
Connector Round-type 20-pin connector
Supplied accessories Operation manual
Optional accessories Viewfinder Rotation Assembly: BKW-401
Compatible products HXC-FB75KC, HXC-FB75H, HDC-1700, HDC-2400, HDC-2500, HDC-2570, HDC-3300R, HDC-4300, HSC-100R, HSC-100RF, HSC-300R, HSC-300RF, PDW-680, PDW-700, PDW-850, PDW-F800, PMW-500, PXW-X400, PXW-X500

In The Box

  • Sony 3.5" Color LCD HD Viewfinder

Reviews

0.0 (no ratings yet)

Details

  • Product: Sony HDVF-L10 3.5" Color LCD HD Viewfinder
  • Manufacturer: Sony
  • Model: HDVF-L10
  • SKU: HDVF-L10
  • RM Product #: 85160
