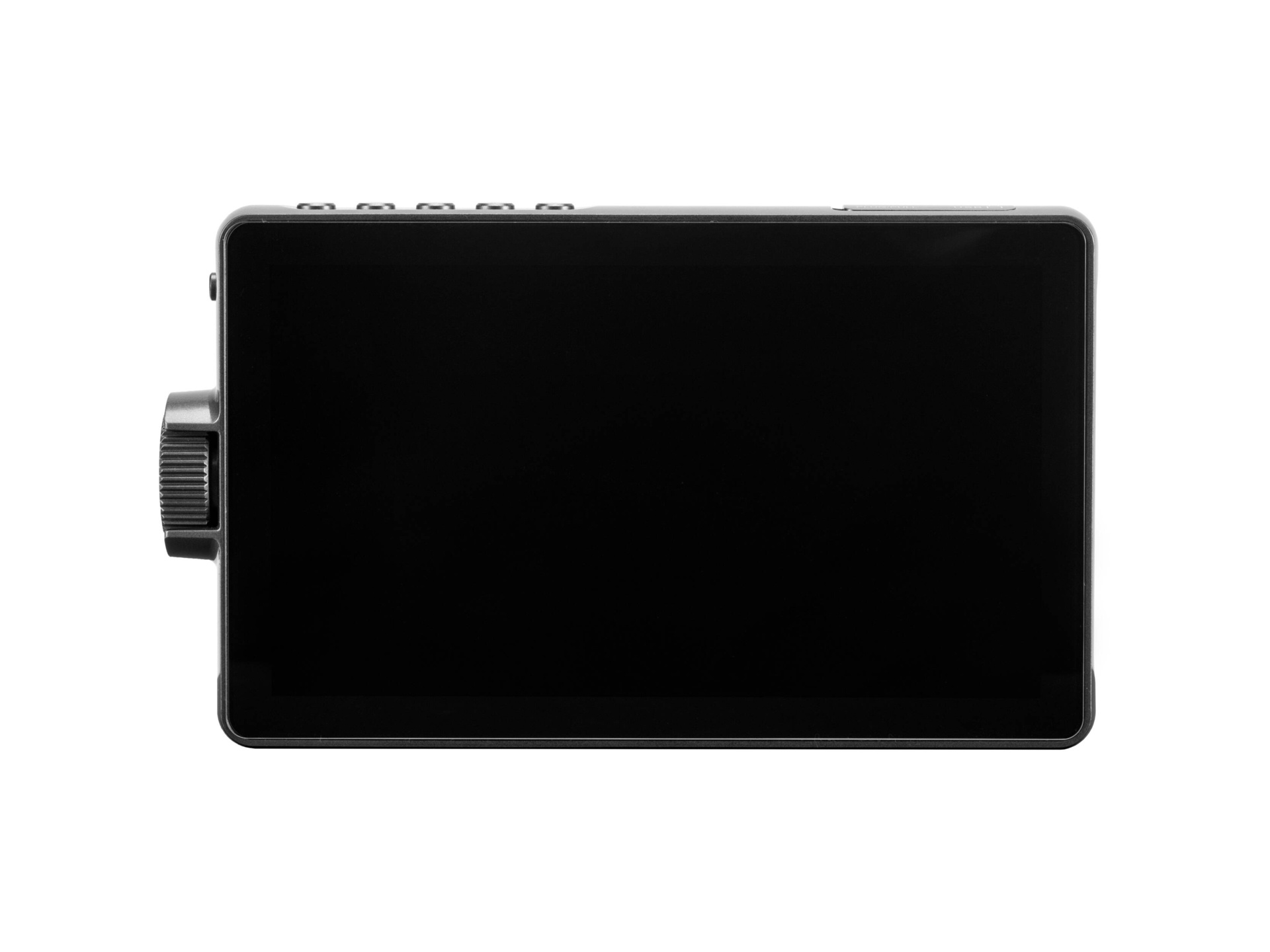

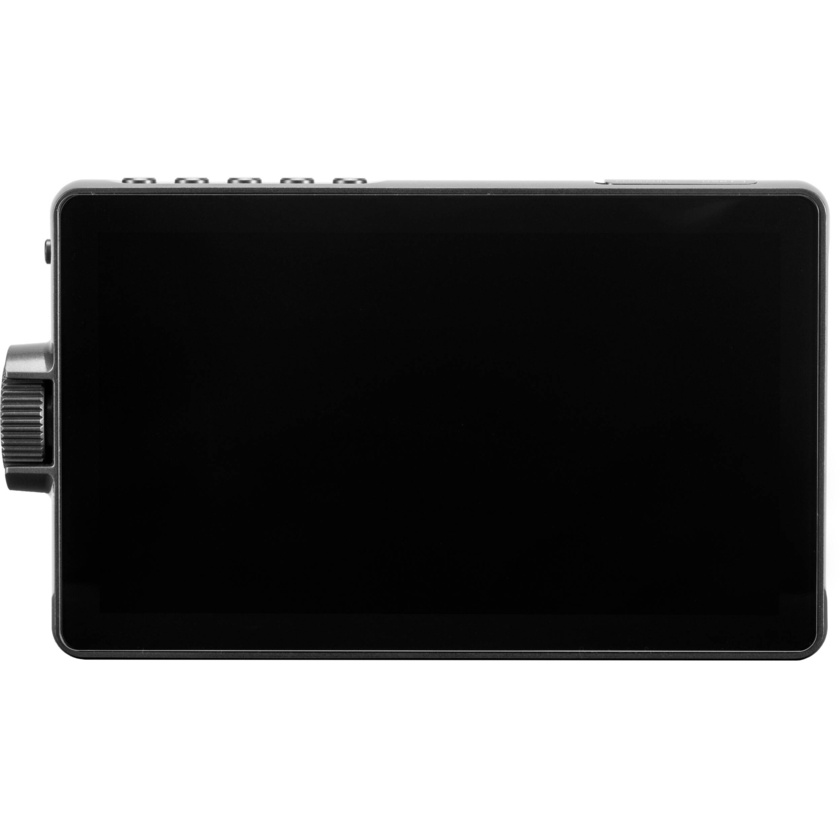

Viltrox DC-A1 7" HDMI 2.0 High-Bright On-Camera Monitor

Product #121545 | SKU DC-A1 | Viltrox
In stock Ships today
NEW
Our Price $479 AUD
In stock Ships today
NEW
- +

Shipping & Availability
Ships today. Deliver to New South Wales for $24.40 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 1 - 2 weeks
Click & Collect

Features

  • Compact 7" On-Camera Monitor
  • 1920 x 1080 Touchscreen Display
  • 2800 cd/m² Brightness, 3D LUTs
  • 1 x HDMI 2.0 Input, 1 x HDMI 2.0 Output
  • Built-In Image Management Tools
  • Up to DCI/UHD 4K60 Input and Loop Output

Description

Featuring a newly upgraded 2800-nit high-brightness display, the Viltrox DC-A1 7" HDMI 2.0 High-Bright On-Camera Monitor sets a new benchmark for brightness. Its ultra-bright, true-to-spec performance ensures unparalleled visibility, even in intense sunlight or complex lighting environments. Experience crystal-clear monitoring and take your photography to the next level with unmatched clarity and precision.

Vibrant Clarity, Every Angle

7" Full HD IPS screen with 1920×1080 resolution and a 170° wide viewing angle—clear, sharp, and vibrant from any perspective. Full sRGB gamut deliver lifelike color fidelity, while a 1000:1 contrast ratio and 60Hz refresh rate ensure smooth, detailed playback even outdoors.

Full-Screen Touch Control

Featuring an intuitive user interface(UI), the touchscreen makes operation effortless. Whether adjusting brightness, contrast, or accessing shooting assist features, everything is at your fingertips for a more intuitive and seamless creative process.

Crystal-Clear Transmission

The DC-A1 offers 4K resolution at 60Hz, delivering lossless, high-definition signal transmission for a crystal-clear, smooth monitoring experience. Ideal for professional film crews, it meets the demanding standards of high-quality production.

Specifications

Display
Panel Type LCD
Display Size 7.0" / 17.8 cm
Native Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle 170°
Touchscreen Yes
Maximum Brightness 2800 nits / cd/m2 (Peak)
Contrast Ratio 1000:1
Colour Support 16.7 Million Colours (8-Bit)
HDR Support No
Colour Gamut 100% sRGB
LUT Support No
Image Controls False Colour, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform
Inputs/Outputs
Video I/O 1x HDMI 2.0 Input
1x HDMI 2.0 Output
Embedded Audio HDMI
Audio I/O 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker No
Power I/O 1x Barrel (2 A / 12 VDC) Input
1x USB-C (3 A / 5 VDC) Input
Other I/O 1x USB-A (LUT Upload) Input
Media/Memory Card Slot No
Wi-Fi No
Bluetooth No
Mobile App Compatible No
Format Support
Video Format HDMI
DCI 4K: 60/30/25/24
UHD 4K: 60/30/25/24
1080p: 60
Gamma Curve Rec709
Power
Input Power 10 to 18 VDC at 2 A
9 VDC at 3
Battery 1x L-Series Mount on Fixed Plate
Mounting
Tripod/Accessory Mounting Bottom/Right
2x 1/4"-20 Female
General
Environmental Resistance No
Operating Conditions 32 to 104°F / 0 to 40°C
Storage Conditions -4 to 140°F / -20 to 60°C
Material of Construction Aluminium
Dimensions 7.4 x 4.4 x 1.1" / 187.8 x 110.5 x 28.5 mm
Weight 12.3 oz / 348.00 g

In The Box

  • Viltrox DC-A1 7" HDMI 2.0 High-Bright On-Camera Monitor
  • Sun Hood
  • Tilt/Swivel Shoe Mount
  • Hard-Shell Carry Case
  • L-Series/NP-F550 Battery
  • HDMI Type-A to Mini-HDMI Cable
  • HDMI Type-A Cable
  • USB-C Power Cable
  • Screen Protector

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Viltrox DC-A1 7" HDMI 2.0 High-Bright On-Camera Monitor
  • Manufacturer: Viltrox
  • Model: DC-A1
  • SKU: DC-A1
  • RM Product #: 121545
  • Screen Size: 7"
  • Screen Resolution: 1920 x 1080
