The Viltrox DC-X3 6" Touchscreen On-Camera Monitor with Cage offers a compact and convenient solution for on-camera monitoring. With its 1920 x 1080 touchscreen display, it provides a high-resolution viewing experience. The monitor boasts a brightness of 2000 cd/m², ensuring excellent visibility even in bright outdoor environments. Additionally, it supports 3D LUTs, allowing for accurate color representation. With HDMI and 3G-SDI input and output ports, the monitor offers versatility in connecting to various devices. It also comes with built-in image management tools, providing users with convenient control and adjustment options. Furthermore, the monitor supports up to DCI/UHD 4K30 input and loop output, ensuring compatibility with a wide range of cameras and video sources. This model includes a rugged outer cage, providing numerous mounting options, including 1/4"-20 and 3/8"-16, anti-twist locating holes, and strap slots.

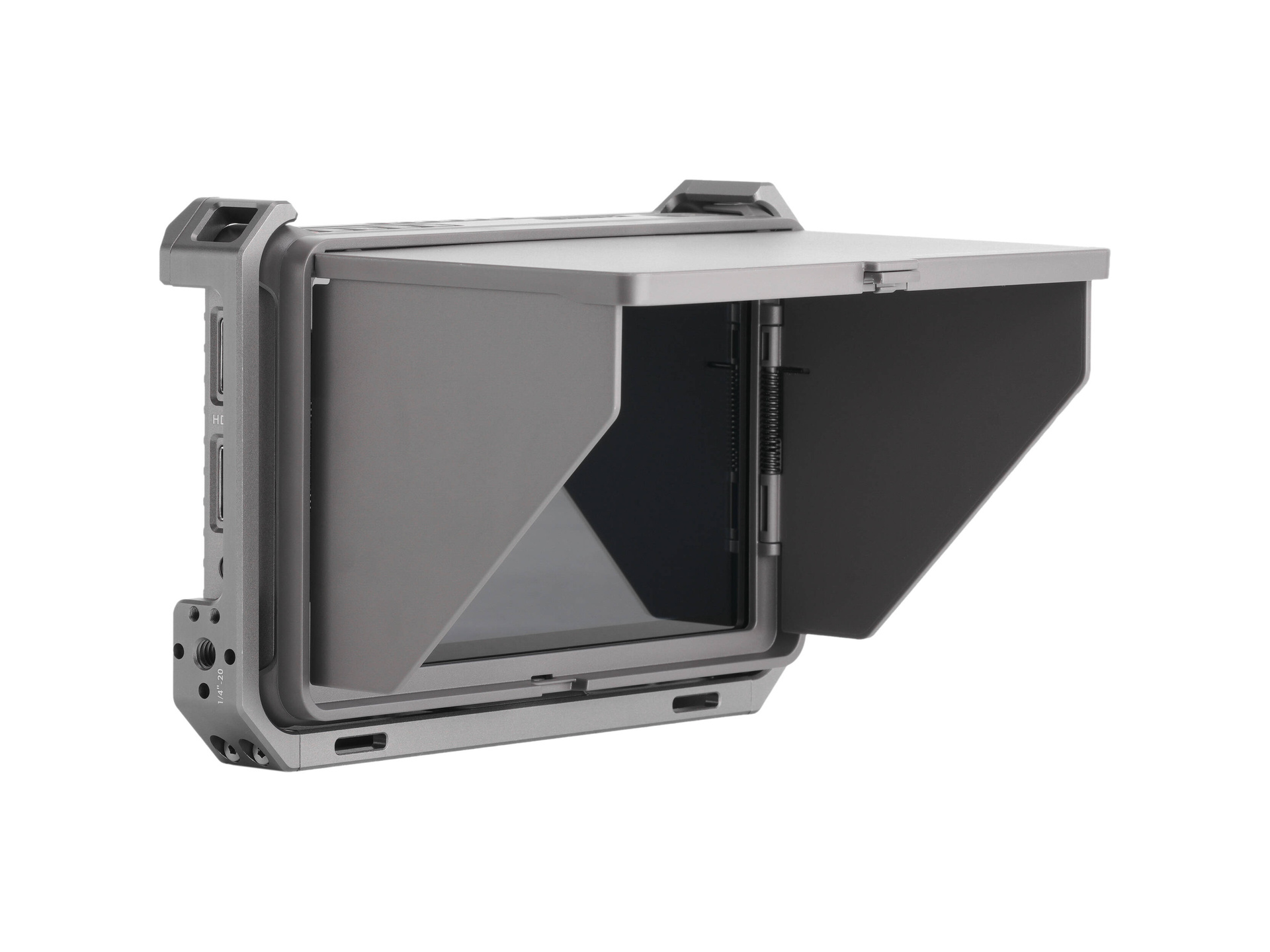

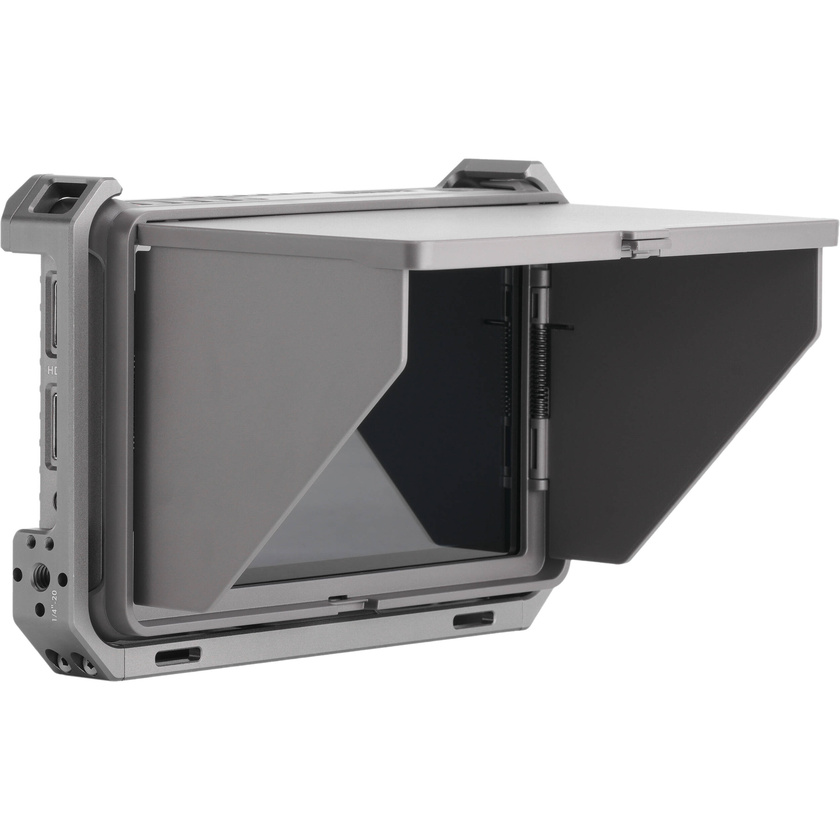

Viltrox DC-X3 6" Touchscreen On-Camera Monitor with Cage
This product is no longer available
Features
- Compact 6" On-Camera Monitor
- 1920 x 1080 Touchscreen Display
- 2000 cd/m² Brightness, 3D LUTs
- HDMI and SDI Inputs and Loop Outputs
- Rugged Outer Cage with Multiple Mounts
- Built-In Image Management Tools
Description
Specifications
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 6.0" / 15.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 160° |
| Touchscreen | Yes |
| Maximum Brightness | 2000 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 Million Colours (8-Bit) |
| HDR Support | Not Specified by Manufacturer |
| Colour Gamut | 100% sRGB 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Histogram, Image Flip, Image Rotate, Overscan, RGB Parade, Underscan, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |
| Video I/O | 1x HDMI 1.4 Input 1x HDMI 1.4 Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x Barrel 2.1 mm (2 A / 18 VDC) Input 1x USB-C (3 A / 9 VDC) Input |
| Other I/O | 1x USB-A (Firmware/LUT Upload) |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30 1080p: 60/50 1080i: 60/50 720p: 60/50 480p: 60 576p: 50 NTSC: 60 PAL: 50 |
| Power | |
| Input Power | 10 to 18 VDC at 2 A |
| Battery | 1x L-Series Mount on Fixed Plate |
| Mounting | |
| Tripod/Accessory Mounting | Bottom 1x Anti-Twist 1/4"-20 Female Right 1x Anti-Twist 1/4"-20 Female |
| General | |
| Operating Conditions | 32 to 149°F / 0 to 65°C |
| Storage Conditions | -4 to 167°F / -20 to 75°C |
| Dimensions | 6.1 x 3.9 x 1.2" / 155.4 x 98.4 x 30 mm |
| Weight | 12.3 oz / 350.00 g |
In The Box
- Viltrox DC-X3 6" Touchscreen On-Camera Monitor with Cage
- External Cage
- Sun Hood
- Shoe Mount Adapter
- HDMI Type A to Mini-HDMI Cable
Reviews
(no ratings yet)Details
- Product: Viltrox DC-X3 6" Touchscreen On-Camera Monitor with Cage
- Manufacturer: Viltrox
- Model: DC-X3 RIG KIT
- SKU: DC-X3 RIG KIT
- RM Product #: 121043
- Screen Size: 6"
- Connection: BNC (3G-SDI)
- Screen Resolution: 1920 x 1080
