The Wooden Camera D-Box for Sony Burano Camera offers power distribution, remote power control, and hot swap battery capabilities for the Sony Burano cinema camera. It expands the range of accessory connectors with a D-Tap output, a 2-pin 12V LEMO-type output, a 3-pin 24V output, and a DC input port. All outputs can be used simultaneously. The D-Box is designed to fit between the camera's battery mount and a battery, with a male V-mount on one side and a female V-mount on the other. This allows power to be passed to the output connectors and the camera. Additionally, the DC input port lets you connect a power supply to ensure continuous power to the camera and its accessories while swapping batteries.

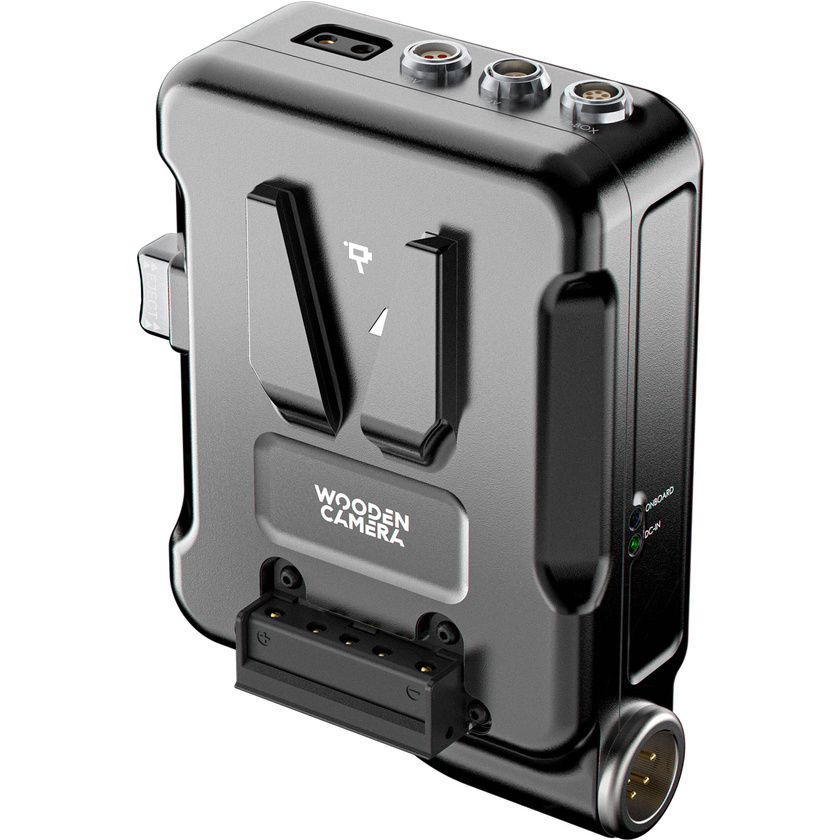

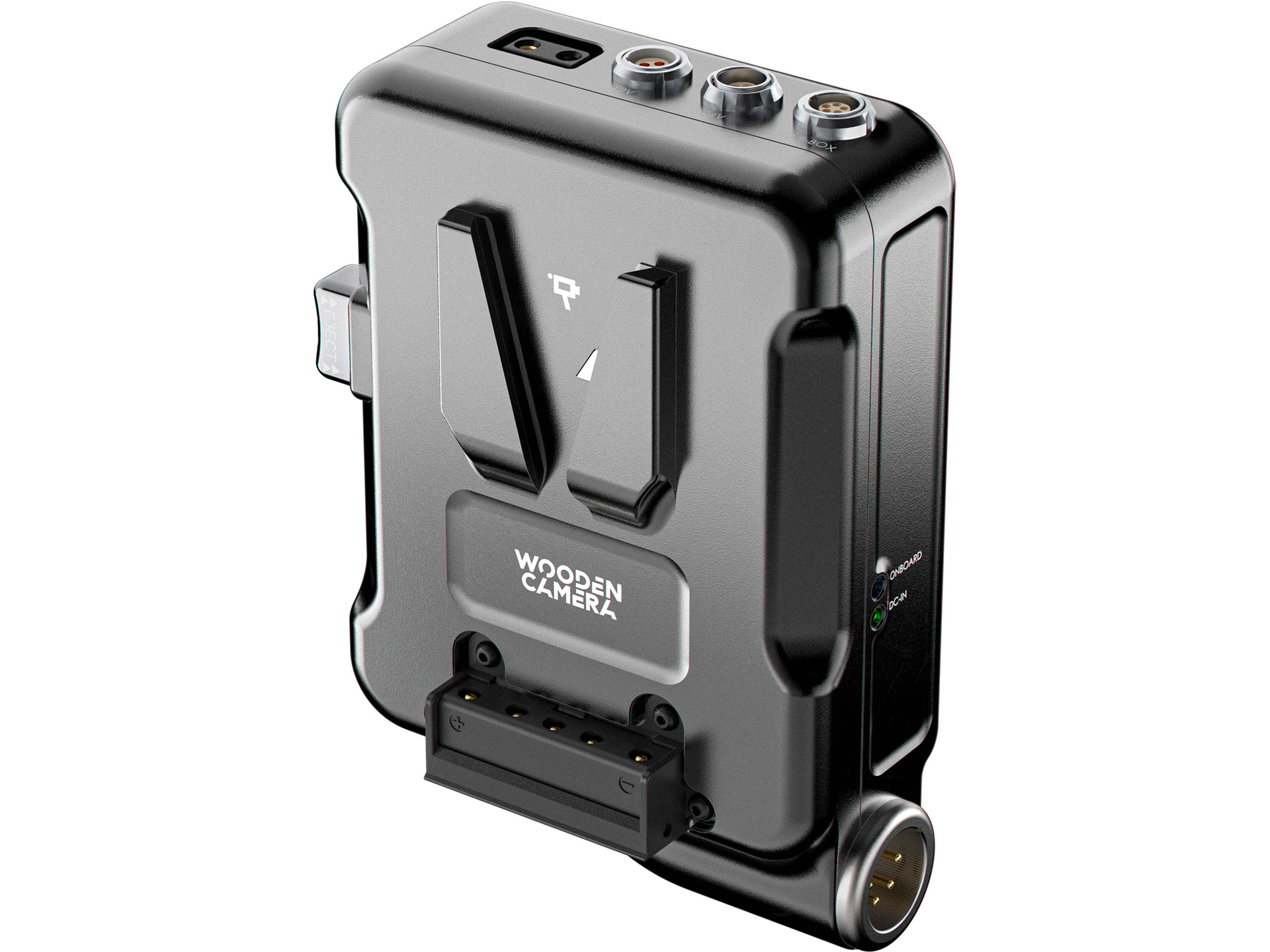

Wooden Camera D-Box for Sony Burano Camera (V-Mount)
In Stock with Supplier Usually ships in 2 - 3 working days
Sale Price
$1,555
AUD
was
$1,669.00
In Stock with Supplier Usually ships in 2 - 3 working days
ON SALE
in
Sales & Promotions
while stock lasts
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- V-Mount Battery Distribution Box
- Fits between Battery and Camera Body
- D-Tap, 2- and 3-Pin LEMO-Type Outputs
- DC Input for Hot-Swap Capability
- Cable-Free, Toolless Installation
- Works with Expander Modules Like B-Box
Description
Specifications
| Key Specs | |
| Power Output | D-Tap: VDC LEMO 2-Pin: 12 VDC LEMO 3-Pin: 24 VDC |
| Camera Power Method | Battery Plate Mount Type, Connector |
| Plate Front / Battery Mount | V-Mount |
| Hot-Swap Support | Yes |
| Power | |
| Power Input | Mini 4-Pin XLR: VDC |
| Power Output | D-Tap: VDC LEMO 2-Pin: 12 VDC LEMO 3-Pin: 24 VDC |
| General | |
| Camera Power Method | Battery Plate Mount Type, Connector |
| Inputs/Outputs | 1x D-Tap 1x LEMO 2-Pin 1x LEMO 3-Pin 1x Mini XLR 4-Pin Male |
| Plate Front / Battery Mount | V-Mount |
| Plate Rear Mount | V-Mount Battery Plate |
| Number of Battery Bays | 1 |
| Hot-Swap Support | Yes |
| Dimensions | 53.1 x 37.8 x 18.5" / 135 x 96 x 47 cm |
| Weight | 0.9 lb / 400.5 g |
In The Box
- Wooden Camera D-Box for Sony Burano Camera (V-Mount)
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Wooden Camera D-Box for Sony Burano Camera (V-Mount)
- Manufacturer: Wooden Camera
- Model: 54.A00543
- SKU: 54.A00543
- RM Product #: 112977
- Warranty: 1 year manufacturer warranty
