Wooden Camera Top Plate System for Sony BURANO

Product #112971 | SKU 54.A00602 | Wooden Camera
Usually ships in 3 - 4 weeks what does this mean?
Our Price $809 AUD
Usually ships in 3 - 4 weeks what does this mean?
- +

Email me when stock arrives

Shipping & Availability
Usually ships in 3 - 4 weeks. Deliver to New South Wales for $4.90 Change location
Click & Collect Availability
Sydney Out of stock. Pickup in 3 - 4 weeks
Click & Collect

Features

  • 15mm LWS Top Plate System for BURANO
  • Top Plate, Front Dual 15mm Rod Clamp
  • Additional 15mm LWS Upper Rod Clamp
  • 1/4"-20 & 3/8"-16 Accessory Threads
  • Works with Original Top Handle

Description

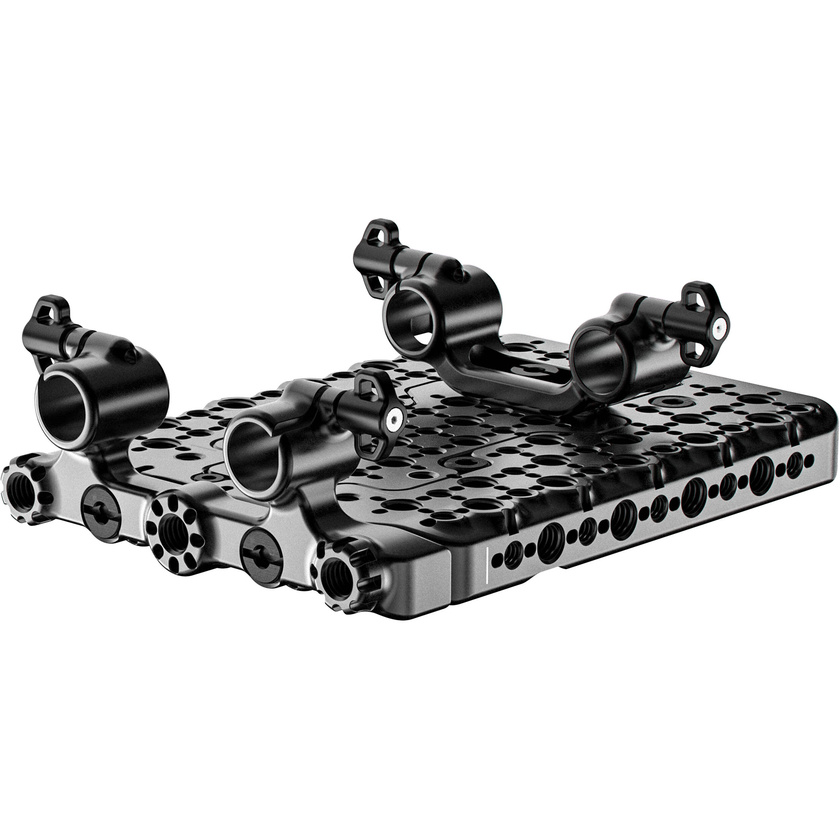

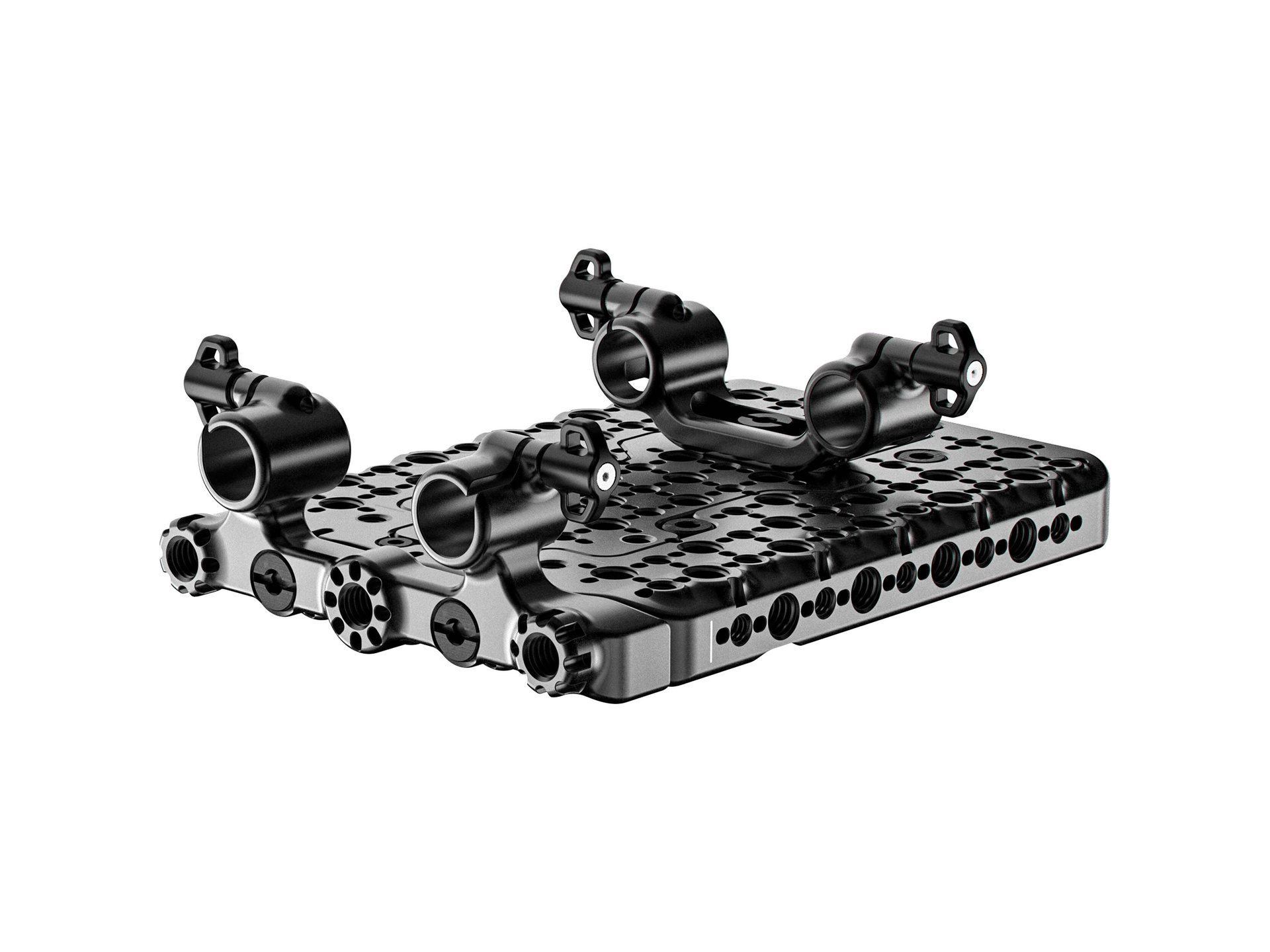

Integrate your Sony BURANO cinema camera with the Wooden Camera Top Plate System for Sony BURANO. This system is composed of a cheese-style top plate, a front dual 15mm LWS rod clamp, and a 15mm LWS upper rod clamp.

The top plate is equipped with numerous accessory threads (1/4"-20 and 3/8"-16) to accommodate a wide range of accessories. Additionally, the center part of the plate can be detached, allowing for the installation of the original FX9 top handle. The rod clamps feature 15mm LWS rod ports, with the front clamp offering extra 3/8"-16 anti-twist threads for accessories. As for the second 15mm LWS clamp, it can be situated anywhere on the top plate based on your specific requirements.

Specifications

Wooden Camera Top Plate For Sony BURANO
General
Compatibility Sony BURANO Camera / PWX-FX9 Top Handle
Wooden Camera Front Dual Rod Clamp for Sony BURANO / EVF System for Sony BURANO / Right and Left Side Plates for Sony BURANO
Environmental
Environmental Protection No
Physical
Mounting Multiple x 1/4"-20 Threads
Multiple x 3/8"-16 Threads
4 x 1/4"-20 Screws
Material of Construction Aluminium
Dimensions 6.4 x 4.7 x 0.7" / 162 x 120 x 19 mm
Weight 18.88 oz / 535.24 g
Wooden Camera Front 15mm LWS Dual-Rod Clamp For Sony BURANO
Key Specs
Mounting Cage Mount: 2x Included 3/8"-16 Male Screw
Accessory Mount: 3x Built-In ARRI Anti-Twist 3/8"-16 Female Thread
Rod Standard 15 mm LWS / 60 mm Spacing
Rod Ports 2x 15 mm Rod Port
Colour Black
Mounting
Mounting Cage Mount: 2x Included 3/8"-16 Male Screw
Accessory Mount: 3x Built-In ARRI Anti-Twist 3/8"-16 Female Thread
Rod Standard 15 mm LWS / 60 mm Spacing
Rod Ports 2x 15 mm Rod Port
Environmental
Environmental Protection No
Materials Aluminium
Dimensions 4.7 x 2.2 x 1.3" / 119 x 55 x 32 mm
Weight 3.73 oz / 105.69 g
Wooden Camera 15mm Dual Rod Clamp For Sony VENICE/VENICE 2 Quick Release Top Plate
Key Specs
Mounting Accessory Mount:
Rod Standard 15 mm (Unspecified Spacing)
Rod Ports 2x 15 mm Rod Port
Mounting
Mounting Accessory Mount:
Rod Standard 15 mm (Unspecified Spacing)
Rod Ports 2x 15 mm Rod Port
Environmental
Dimensions 4.4 x 1.3 x 0.9" / 113 x 34 x 24 mm
Weight 1.4 oz / 39 g

In The Box

  • Wooden Camera Top Plate for Sony BURANO
  • Wooden Camera Front 15mm LWS Dual-Rod Clamp for Sony BURANO
  • Wooden Camera 15mm Dual Rod Clamp for Sony VENICE/VENICE 2 Quick Release Top Plate

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Wooden Camera Top Plate System for Sony BURANO
  • Manufacturer: Wooden Camera
  • Model: 54.A00602
  • SKU: 54.A00602
  • RM Product #: 112971
  • Compatible With: Sony Burano
  • Warranty: 1 year manufacturer warranty
