Open box special - Ex Demo

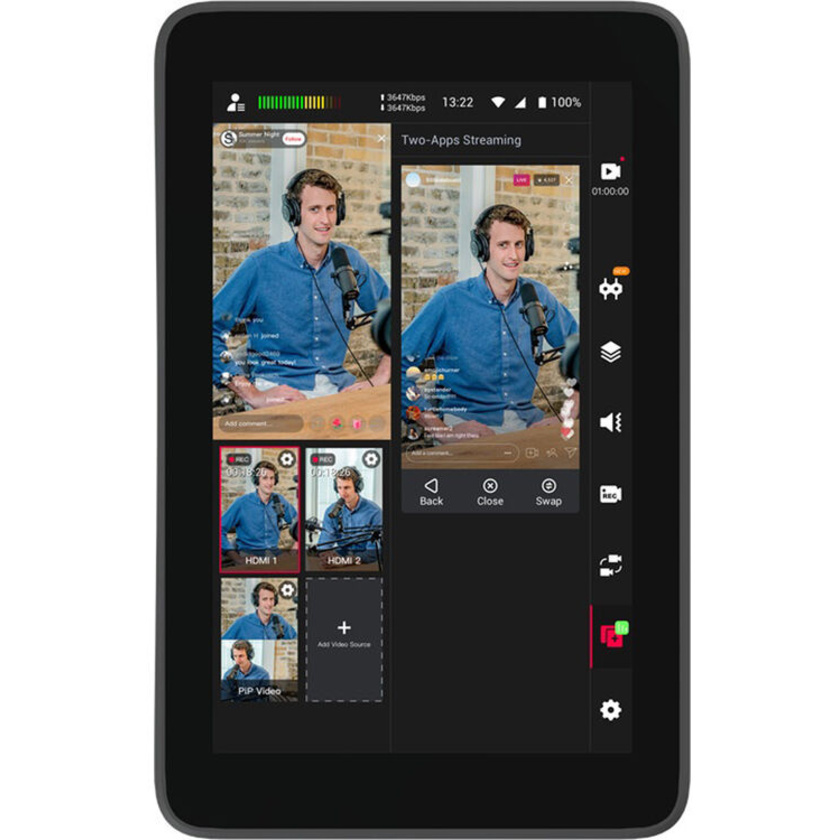

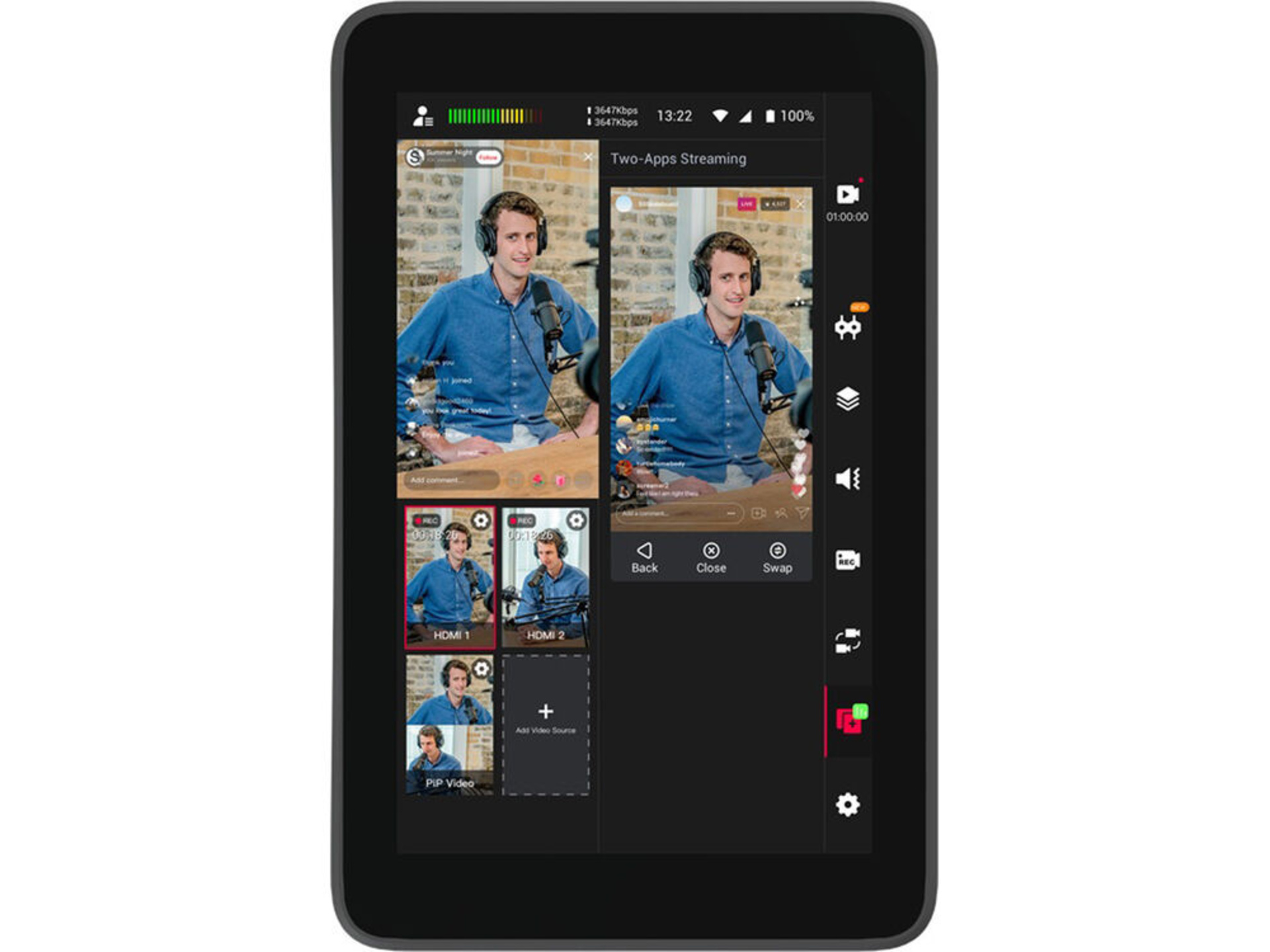

The YoloLiv YoloBox Ultra All-in-One Smart Live Streaming Encoder & Monitor is a YoloBox & Instream, all in one. Angle it your way. Stream to your favorite platforms.
| Input Power | DC5V/9V/, 12V/15V |
| Power Consumption | 45W |
| Power Supply | USB Type-C |
| USB Rated Output | USB-A:5V/1A |
| Battery Capacity | 6800mAh |
| Monitor Screen Size | 8inch LCD Resolution: 1200 x 1920; Brightness: 650nits; Contrast ratio(1500:1), Viewing Angle (full viewing Angle), NTSC 80% |
| Local Video Inputs | HDMI,USB-A |
| Video Over Ethernet | RTMP/RTMPS/SRT |
| Video Input Connectors | HDMI,USB-A,RJ-45,USB Type-C |
| Video Input Aspect Ratios | 16:9; 4:3; 1:1 |
| Video Input Deinterlacing | No |
| Live Broadcast Video input Resolution | 480p/720p/1080p(up to 60fps)/4k 30fps |
| Video Encoded Format | H.264 H.265 |
| Video processing Bitrate control | CQ, VBR, CBR |
| Hardware-Accelerated Video Encoding | Optional |
| Video Output Signal Types | FLV-RTMP,HDMI,UVC |
| Video Output Connectors | HDMI OUT, USB-C |
| Video Output Streaming protocols | RTMP, RTMPS, MJPEG, SRT |
| Live Broadcast Video Output Resolution | 480p/720p/1080p(up to 60fps)/4k 30fps |
| Analog Audio Input Connectors | Line In, Mic In, 3.5mm |
| Digital Audio Inputs | USB, HDMI, RTMP(From internet), Local video(From SD card) |
| Digital Audio Input Connectors | USB-A, HDMI, USB-C |
| Audio Input Mute | Yes |
| Audio Input Format | 32KHZ/44.1KHZ/48KHZ :16bit |
| Audio Encoded Format | (AAC)44.1K/48KHZ 2Ch 16bit |
| Analog Audio Output | 3.5mm headphone jack |
| Digital Audio Outputs | HDMI audio (Embedded), USB Audio (Embedded) |
| Record Formats | MP4 |
| Wi-Fi | 2.4G/ 5G（Support WiFi6） |
| USB Communication Standard | USB 2.0 and USB 3.0 |
| Ethernet Data Rate | 10/100/1000M, half/full duplex with autodetect |
| SIM Card Size | Nano-SIM Card |
| SDCard format | FAT32(Under 128G), NTFS, EX-FAT |
| Operating Temperature | 0℃-40℃ |
| Operating Humidity | 15%-85%, No Condensation |
| Country of Origin | Made in China |
