Featuring a durable aluminium housing with protective rubber corners, the Behringer DI100 Single-Channel Active Battery/Phantom-Powered Direct Box is a versatile single-channel active direct injection box designed for the demands of the road. Ideal for studio or live use, this DI box offers impedance and signal matching for connecting unbalanced line signals or instruments to a balanced mixer or amplifier input. Additionally, it can balance signals for extended cable distances. This unit is perfect for professional settings with mixing consoles that have +48V phantom power and can also run on a 9VDC battery.

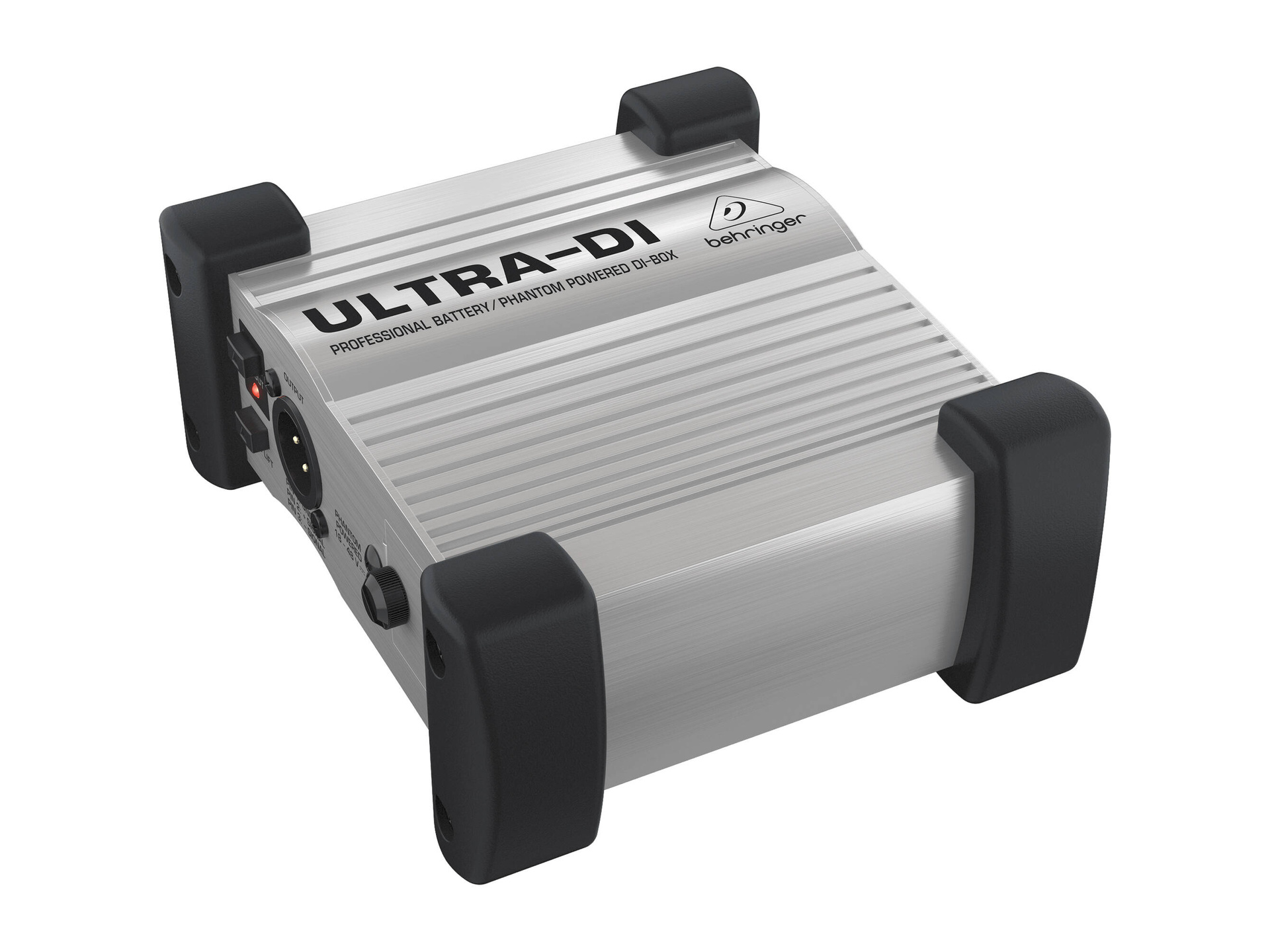

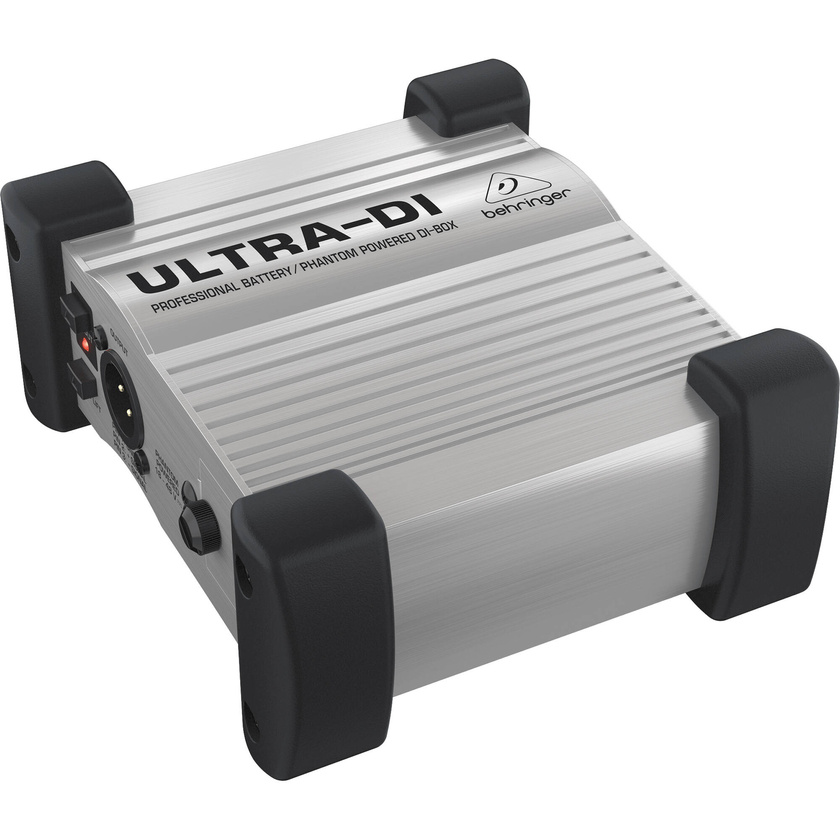

Behringer DI100 Single-Channel Active Battery/Phantom-Powered Direct Box
This product is no longer available
Features
- For Stage and Studio Applications
- Phantom- and Battery-Powered Operation
- XLR and 1/4" Unbalanced Linked Inputs
- XLR Mic-Level Balanced Output
- 1/4" TS Link-Through to Amplifier
- -20 dB + -20 dB Pads, Ground Lift
Description
Specifications
| General | |
| Item Type | Standard DI |
| Number of Channels | Single-Channel |
| Active/Passive | Active |
| Circuitry | Solid-State |
| Pad | -40 dB |
| Ground Lift | Yes |
| Polarity Reverse | No |
| Low-Cut/High-Pass Filter | No |
| Connectivity | |
| Audio I/O | 1x XLR 3-Pin Unbalanced Input 1x 1/4" TS Unbalanced Input 1x XLR 3-Pin Balanced Mic Output 1x 1/4" TS Unbalanced Thru |
| Performance | |
| Frequency Response | 10 Hz to 93 kHz |
| Maximum Input Level | +50 dBu |
| Input Impedance | 250 Kilohms |
| Output Impedance | >600 Ohms |
| Total Harmonic Distortion/Noise | < 0.005% |
| Signal-to-Noise Ratio | -110 dBu |
| Power | |
| Operating Voltage | 18 to 48 V (Phantom Power) |
| Battery Type | 1x 9 V (Not Included) |
| Physical | |
| Dimensions | 5.9 x 5.1 x 2.4" / 150 x 130 x 60 mm |
| Weight | 1.4 lb / 650 g |
In The Box
- Behringer DI100 Single-Channel Active Battery/Phantom-Powered Direct Box
Reviews
(no ratings yet)Details
- Product: Behringer DI100 Single-Channel Active Battery/Phantom-Powered Direct Box
- Manufacturer: Behringer
- Model: DI100
- SKU: BEDI100
- RM Product #: 2314
- Warranty: 1 year manufacturer warranty view terms
