Get superior signal quality for your live performance or recording session with the Behringer DI20 Professional Active 2-Channel Direct Box/Splitter. This DI box can transform two unbalanced 1/4" TRS lines into balanced XLR outputs, offering versatility for various setup needs. With the ability to handle two mono signals, a stereo signal, or split-signal for two amps, the DI20 provides flexibility. It also includes an attenuator and ground lift switch for additional customisation options. Power options include a 9V battery or phantom power from a console, making it convenient for different setups.

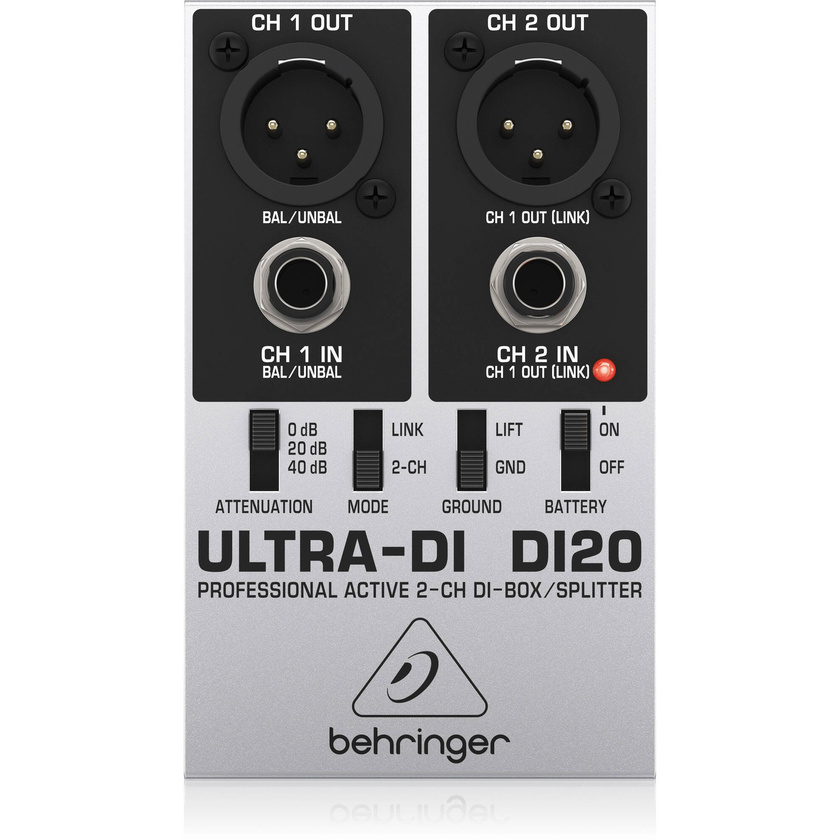

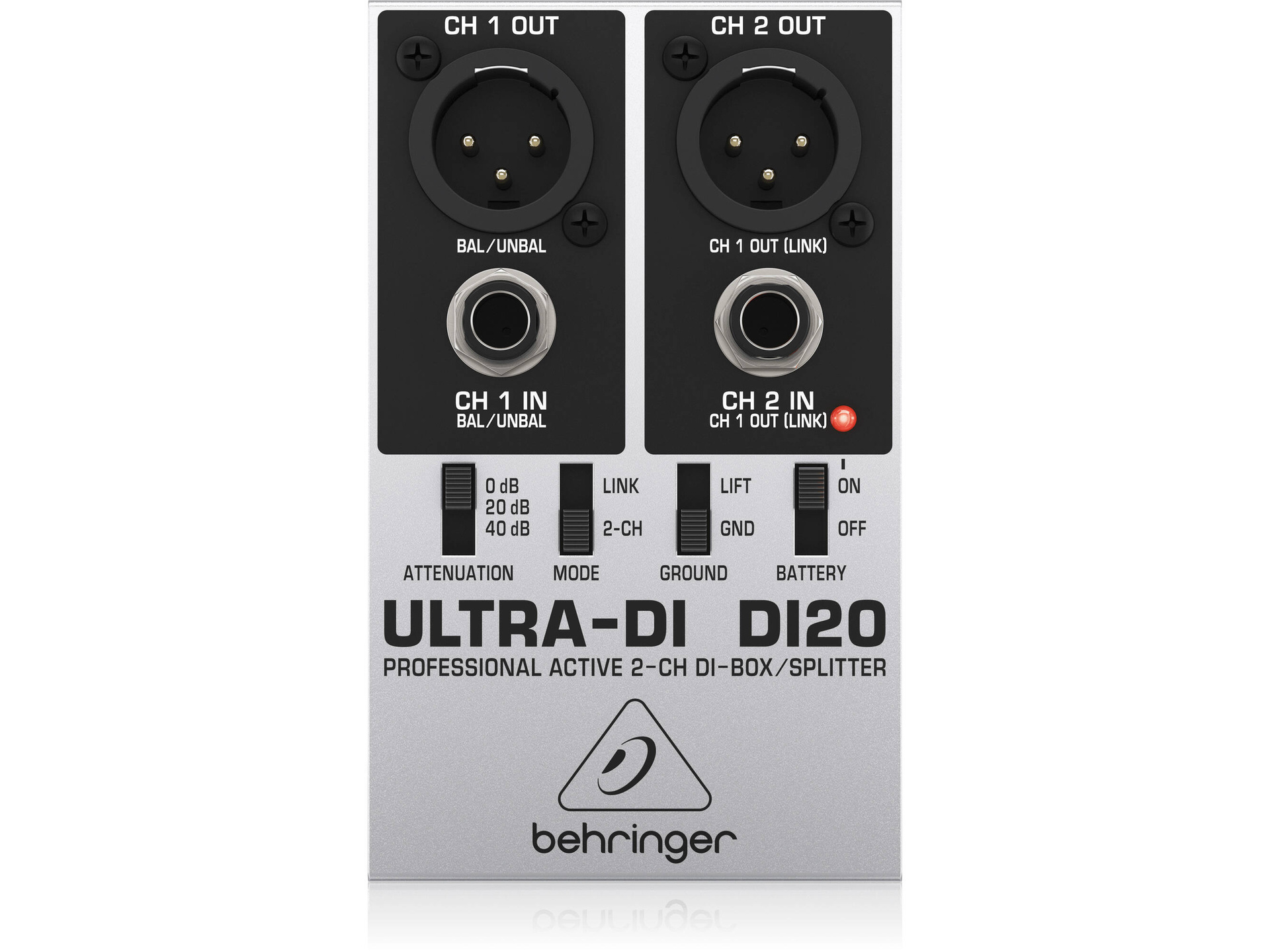

Behringer DI20 Professional Active 2-Channel Direct Box/Splitter
This product is no longer available
Features
- Multi-Purpose Direct Injection Box
- Great for Studio and Stage Applications
- Impedance and Signal Matching
- Converts 2 Independent 1/4" to XLR
- 9V Battery or Phantom Powered
- Attenuator Switch (0, -20, -40 dB)
Description
Specifications
| General | |
| Item Type | Standard DI |
| Number of Channels | 2-Channel |
| Active/Passive | Active |
| Circuitry | Solid-State |
| Pad | -20 / -40 dB |
| Ground Lift | Yes |
| Polarity Reverse | No |
| Low-Cut/High-Pass Filter | No |
| Connectivity | |
| Audio I/O | 2x 1/4" TRS Unbalanced Line Input 2x XLR 3-Pin Balanced Line Output |
| Performance | |
| Frequency Response | 10 Hz to 70 kHz -3 dB |
| Maximum Input Level | +52 dBu |
| Input Impedance | 250 Kilohms |
| Output Impedance | 600 Ohms |
| Total Harmonic Distortion/Noise | < 0.014% (1 kHz, 0 dBu In) |
| Signal-to-Noise Ratio | -100 dBu |
| Power | |
| Operating Voltage | 18 to 48 V (Phantom Power) |
| Battery Type | 1x 9 V (Not Included) |
| Physical | |
| Dimensions | 5.9 x 5.1 x 2.4" / 150 x 130 x 60 mm |
| Weight | 8.5 oz / 240 g |
In The Box
- Behringer DI20 Professional Active 2-Channel Direct Box/Splitter
Reviews
(based on 1 rating)Details
- Product: Behringer DI20 Professional Active 2-Channel Direct Box/Splitter
- Manufacturer: Behringer
- Model: B-DI20
- SKU: BEDI20
- RM Product #: 2315
- Warranty: 1 year manufacturer warranty view terms
